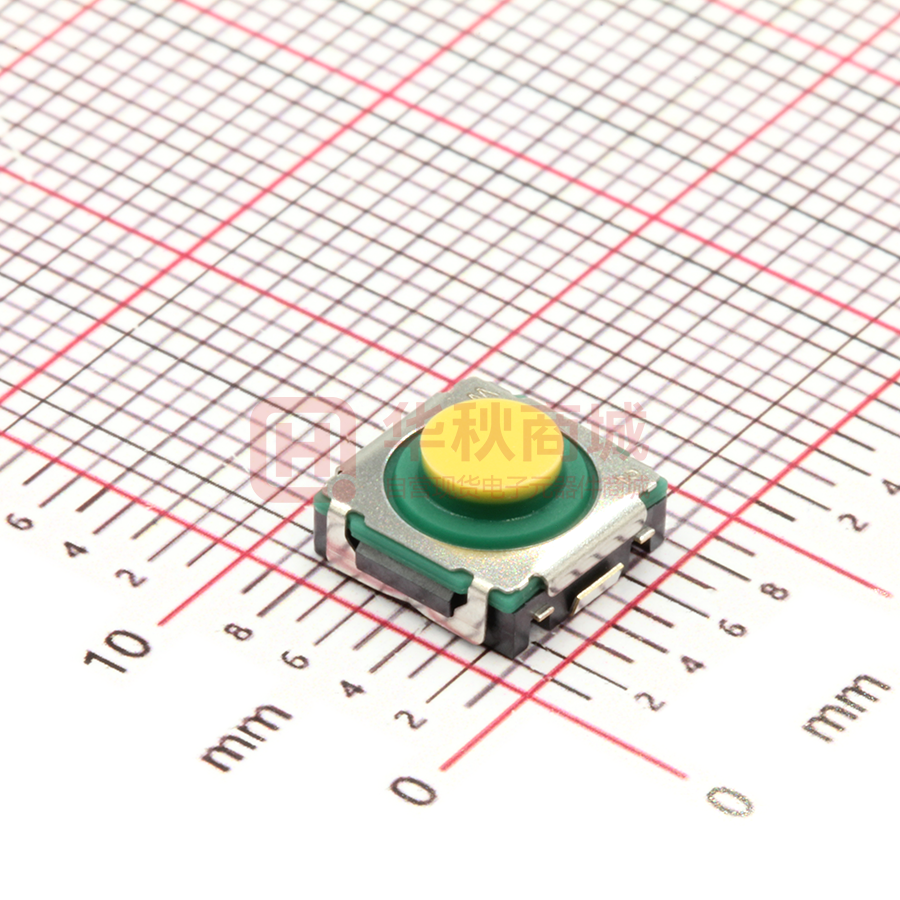

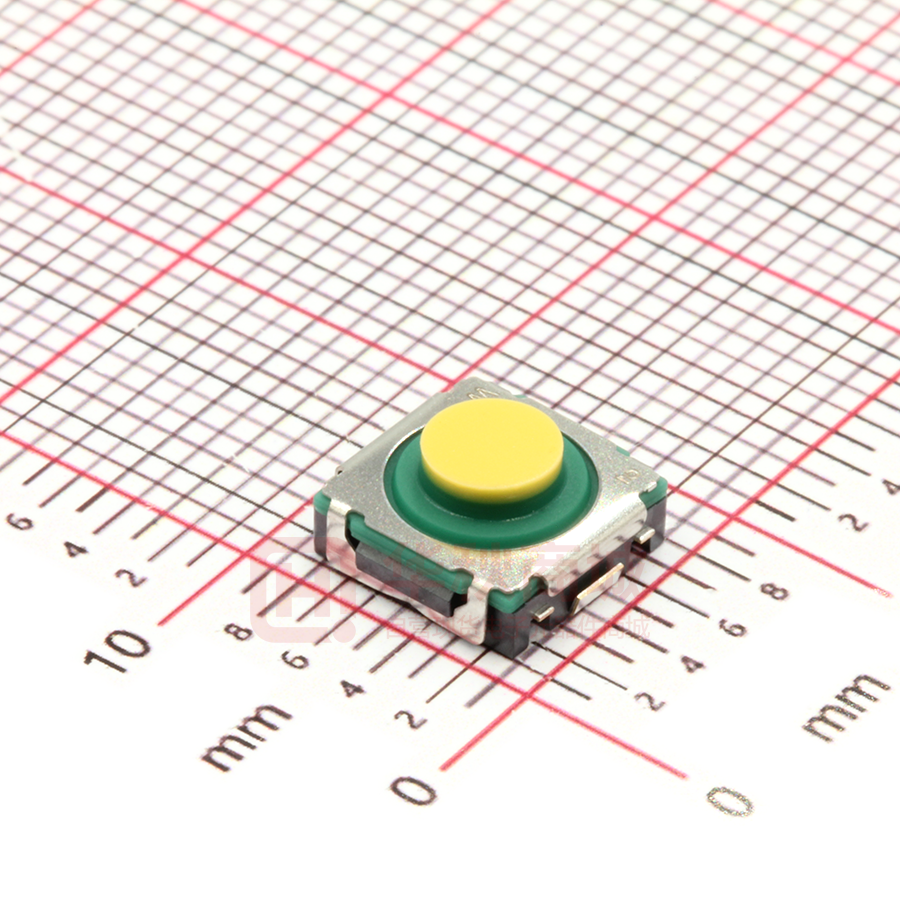

SKSTACE010

SKST Quiet Type with 0.9mm Stroke (Surface Mount Type) TM 検　Switch 出 TACT Switch with 0.9mm stroke realizing a refined operating feel ■ Typical Specifications Items Specifications 50mA 16V DC Rating（min.） 10μA 1V DC Initial contact resistance 100mΩ max. Travel（mm） Sharp Feeling Rating（max.） 0.9 Soft Feeling ■ Product Line Operating force SKSTAAE010 4N SKSTACE010 7N SKSTADE010 10N Operating direction Operating life （5mA 5V DC） Stem color Minimum order unit（pcs.） Japan Export 1,500 1,500 Green 500,000 cycles Top push Yellow Blue Surface Mount Type 200,000 cycles ■ Packing Specifications Taping Unit:mm Number of packages（pcs.） 1 case / Japan 1 case / export packing 1,500 9,000 9,000 Tape width （mm） Export package measurements（mm） 24 395×395×205 Reel size Radial Type 1 reel Snap-in Type Product No. Note For reels of 330mm diameter, please inquire. ø380 25.4 ■ Dimensions Unit:mm PC board land dimensions （Viewed from switch mounting face） Style 8.5 2.1 8.5 2.7 9.8 6.4 Stem 3.95 Ø4.3 8.6 1 2 ■ Circuit Diagram 1 2 Refer to P.265 for soldering conditions. 239 TACT SwitchTM List of Varieties TACT SwitchTM Sharp Feeling Type Type Surface Mount SKRK Series SKTH SKRP SKQM SKQY SKSU SKST SKRA SKHM Photo Compact size High operation force Compact size Low-profile Compact size Features Compact size Middle travel — Sharp Feeling — — — — — ● — ○ — Dust-proof — ● — — — ● — ○ — IP standard — — — — — 67 equivalency — 67 equivalency — Top push ● ● ● ● ● ● ● ● ● Side push — — — — — — — — — W 3.9 3.5 4.2 6 6.1 5.3 D 2.9 3.2 3.2 3.5 3.7 5.4 8.5 □6.2 H 1.5／2 1.8/2.5 2.5 4.3/5 2.5 3.85 3.95 3.5/5.2 3.1 Travel（mm） 0.13 0.12 0.2 0.7 0.9 See the relevant pages for respective product descriptions 0.25 Ground terminal — — — — — — ● Operating temperature range −40℃ to ＋85℃ Automotive use — ● ● 50mA 12V DC 25mA 16V DC 50mA 16V DC Soft Feeling Water-proof Operating direction Snap-in Type Dimensions （mm） 6.2 6.5 Surface Mount Type 1N max. 1N to 2N Operation force coverage 2N to 3N 3N to 4N 4N to 5N Radial Type 0.25 — ○ −40℃ to ＋90℃ ● ● −40℃ to ＋85℃ ● ● ○ — Life Cycle Rating（max.） （Resistive load） Electrical performance 50mA 16V DC Rating（min.） （Resistive load） 10μA 1V DC Insulation resistance 100MΩ min. 100V DC 1min. Voltage proof 250V AC 1min. 100V AC 1min. 50mA 12V DC 250V AC 1min. Vibration 10 to 55 to 10Hz/min., the amplitude is 1.5mm for all the frequencies, in the 3 direction of X, Y and Z for 2 hours respectively Lifetime Shall be in accordance with individual specifications. Durability Environmental performance 50mA 12V DC Cold −40℃ 96h −40℃ 1,000h −40℃ 96h −40℃ 1,000h −40℃ 96h Dry heat 90℃ 96h 90℃ 1,000h 90℃ 96h 90℃ 1,000h 90℃ 96h Damp heat 60℃, 90 to 95%RH 96h 60℃, 90 to 95%RH 1,000h 60℃, 90 to 95%RH 96h 60℃, 90 to 95%RH 1,000h 60℃, 90 to 95%RH 96h Page 230 232 234 235 236 238 239 240 241 W：Width. The most outer dimension excluding terminal portion. D ：Depth. The most outer dimension excluding terminal portion. H ：Height. The minimum dimension if there are variances. TACT SwitchTM Soldering Conditions・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 265 TACT SwitchTM Cautions・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 266 Notes 1. The automotive operating temperature range to be individually discussed upon request. 2. ● Indicates applicability to all products in the series, while ○ indicates applicability to some products in the series. 192 TACT SwitchTM Soldering Conditions TM 検　Switch 出 TACT ■ Condition for Reflow Available for Surface Mount Type. 1. Temperature measurement: Thermocouple φ 0.1 to 0.2 CA（K）or CC（T）at solder joints 　（copper foil surface）. A heat resistive tape should be used to fix thermocouple. 2. Temperature profile Temperature (˚C ) 260˚C max. 3 sec max. Sharp Feeling 230˚C 180 150 Time Soft Feeling 120 sec max. （pre-heating） 40s max. 3 to 4min. Time inside soldering equipment ■ Manual Soldering Available for Snap-in Type and Radial Type. Condition Flux built-up Mounting surface should not be exposed to flux Preheating temperature Ambient temperature of the soldered surface of PC board. 100℃ max. Items Condition Soldering temperature 350℃ max. Duration of soldering 3s max. Capacity of soldering iron 60W max. Preheating time 60s　max. Soldering temperature 260℃ max. Duration of immersion 5s max. Items Condition Number of soldering 2times max. Soldering temperature 360℃ max. Duration of soldering 3s max. Capacity of soldering iron 60W max. SKHH, SKPD Series Radial Type Items Surface Mount Type ■ Conditions for Auto-dip Snap-in Type Notes 1. The above temperature shall be measured of the top of switch. There are cases where the PC board's temperature greatly differs from that of the switch, depending on the material, size, thickness of PC boards and others. 　 The above-stated conditions shall also apply to switch surface temperatures. 2. Soldering conditions differ depending on reflow soldering machines. Prior verification of soldering condition is highly recommended. SKHH, SKHW, SKRG, SKPD Series Items Condition Flux built-up Mounting surface should not be exposed to flux Preheating temperature Ambient temperature of the soldered surface of PC board. 110℃ max. Items Condition Preheating time 60s　max. Soldering temperature 350℃ max. Soldering temperature 260℃ max. Duration of soldering 3s max. Duration of immersion 5s max. Capacity of soldering iron 20W max. Number of soldering 2times max. SKTD, SKTG, SKQJ, SKQK, SKEG Series SKQJ, SKQK, SKEG Series Items Condition Flux built-up Mounting surface should not be exposed to flux Preheating temperature Ambient temperature of the soldered surface of PC board. 100℃ max. Preheating time 45s　max. Soldering temperature 255℃ max. Duration of immersion 5s max. Number of soldering 2times max. Notes 1. Prevent flux penetration from the top side of the TACT SwitchTM. 2. Switch terminals and a PC board should not be coated with flux prior to soldering. 3. The second soldering should be done after the switch is stable with normal temperature. 4. Use the flux with a specific gravity of min 0.81. （EC-19S-8 by TAMURA Corporation, or equivalents.） 265
