SKSW Series - Basic information

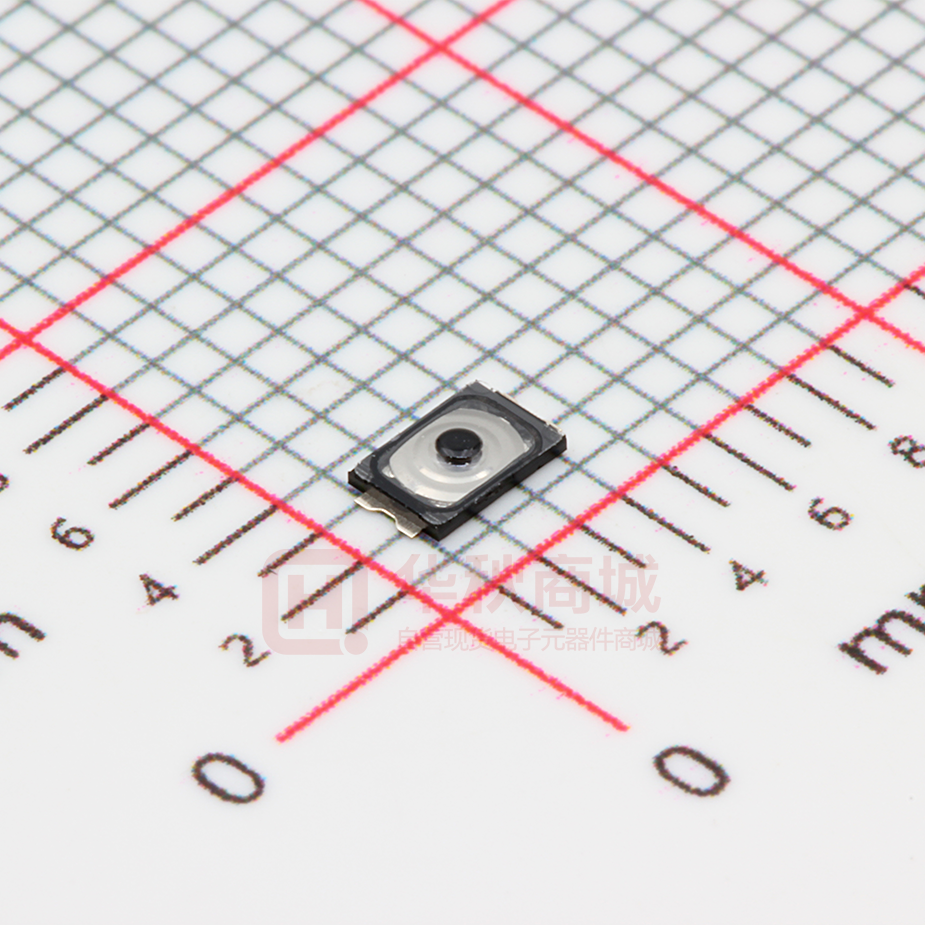

3.0×2.0mm Compact Type with Projection (Surface
Mount) SKSW Series
Type
Surface mount
Operating force
1.8N
Operating direction
Top push
Travel
0.13mm
Operating life
(5mA 5V DC)
300,000 cycles
Initial contact resistance
500mΩ max.
Protective structure
IP67 equivalent
Series type
Sharp feeling type
Operating temperature range
-30℃ to +85℃
Rating (max.)
50mA 12V DC
Rating (min.)
10μA 1V DC
Electrical
performance
Insulation resistance 100MΩ min. 100V DC for 1min.
Voltage proof
100V AC for 1 min.
Durability
Vibration
10 to 55 to 10Hz/min., the amplitude is 1.5mm for all the
frequencies, in the 3 direction of X, Y and Z for 2 hours
respectively
Environmental
performance
Cold
-30±2℃ for 96h
Dry heat
80±2℃ for 96h
Damp heat
60±2℃, 90 to 95%RH for 96h
Minimum order unit Japan
(pcs.)
Export
20,000
20,000
http://www.alps.com/prod/info/E/HTML/Tact/SurfaceMount/SKSW/SKSWCEE010.html
1/4
2018/3/21
SKSW Series - Basic information
Dimensions
Land Dimensions
Viewed from switch mounting face
Circuit Diagram
http://www.alps.com/prod/info/E/HTML/Tact/SurfaceMount/SKSW/SKSWCEE010.html
2/4
2018/3/21
SKSW Series - Basic information
Packing Specifications
Taping
Number of packages 1 reel
(pcs.)
20,000
1 case / Japan
200,000
1 case / export
packing
200,000
Tape width (mm)
12
Export package measurements (mm)
395×395×205
Soldering Conditions
Condition for Reflow
1. Heating method
Double heating method with infrared heater.
2. Temperature measurement
Thermocouple 0.1 to 0.2 Φ CA(K) or CC(T) at solder joints (copper foil surface). A heat resisting tape should
be used for fix measurement.
3. Temperature profile
http://www.alps.com/prod/info/E/HTML/Tact/SurfaceMount/SKSW/SKSWCEE010.html
3/4
2018/3/21
SKSW Series - Basic information
(1) The above temperature shall be measured of the top of switch. There are cases where PC board's
temperature greatly differs from that of the switch, depending on the material, size, thickness of PC
board's and others. Care, should be taken to prevent the switch's surface temperature from exceeding
260℃.
(2) Soldering conditions differ depending on reflow soldering machines. Prior verification of soldering
condition is highly recommended.
Manual Soldering
Items
Condition
Soldering temperature
350℃ max.
Duration of soldering
3s max.
Capacity of soldering iron
60W max.
1. Consult with us for availability of TACT switch™ washing.
2. Prevent flux penetration from the top side of the TACT switch™.
3. Switch terminals and a PC board should not be coated with flux prior to soldering.
4. The second soldering should be done after the switch returns to normal temperature.
Notes are common to this series/models.
1. This site catalog shows only outline specifications. When using the products, please obtain formal
specifications for supply.
2. Please place purchase orders for taping products per minimum order unit (1 reel or a case).
3. For φ330mm diameter reel requirements, please contact us.
4. Please contact us for automotive use products.
5. Protective structure :
Assumes the switch is left alone without being operated. Under the specified conditions, dust and water
ingress with a significant impact on the switch's on-off function is prevented.
IP67 dust and water resistance is guaranteed for the switch alone and performance may not be
guaranteed depending on the mounting conditions and usage.
