SKTAACE010

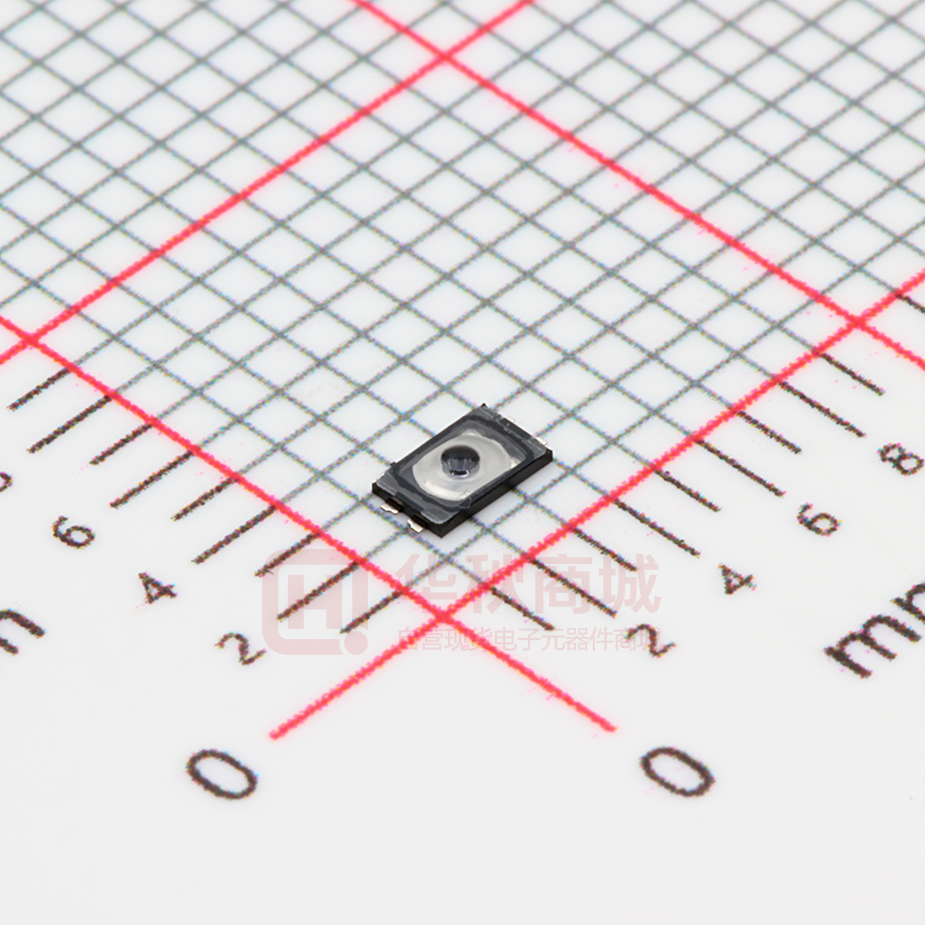

2018/12/27 SKTA Series - Basic information 2.6×1.6mm Compact Type with Projection SKTA (Surface Mount Type) SKTA Series Type Surface mount Operating force 1.0N Operating direction Top push Travel 0.11mm Product height 0.53mm Operating life (5mA 5V DC) 300,000 cycles Initial contact resistance 500mΩ max. Protective structure IP67 equivalent Series type Sharp feeling type Operating temperature range -30℃ to +85℃ Rating (max.) 50mA 12V DC Rating (min.) 10μA 1V DC Electrical performance Insulation resistance 100MΩ min. 100V DC for 1min. Voltage proof 100V AC for 1 min. Durability Vibration 10 to 55 to 10Hz/min., the amplitude is 1.5mm for all the frequencies, in the 3 direction of X, Y and Z for 2 hours respectively Environmental performance Cold -40℃ 96h Dry heat 90℃ 96h Damp heat 60℃, 90 to 95%RH 96h Minimum order unit Japan (pcs.) Export 20,000 20,000 Dimensions https://www.alps.com/prod/info/E/HTML/Tact/SurfaceMount/SKTA/SKTAACE010.html 1/4 2018/12/27 SKTA Series - Basic information Land Dimensions Viewed from switch mounting face Circuit Diagram https://www.alps.com/prod/info/E/HTML/Tact/SurfaceMount/SKTA/SKTAACE010.html 2/4 2018/12/27 SKTA Series - Basic information Packing Specifications Taping Number of packages 1 reel (pcs.) 20,000 1 case / Japan 200,000 1 case / export packing 200,000 Tape width (mm) 12 Export package measurements (mm) 395×395×205 Soldering Conditions Condition for Reflow 1. Heating method Double heating method with infrared heater. 2. Temperature measurement Thermocouple 0.1 to 0.2 Φ CA(K) or CC(T) at solder joints (copper foil surface). A heat resisting tape should be used for fix measurement. 3. Temperature profile https://www.alps.com/prod/info/E/HTML/Tact/SurfaceMount/SKTA/SKTAACE010.html 3/4 2018/12/27 SKTA Series - Basic information (1) The above temperature shall be measured of the top of switch. There are cases where PC board's temperature greatly differs from that of the switch, depending on the material, size, thickness of PC board's and others. Care, should be taken to prevent the switch's surface temperature from exceeding 260℃. (2) Soldering conditions differ depending on reflow soldering machines. Prior verification of soldering condition is highly recommended. 1. Do not washing the TACT Switch™. 2. Prevent flux penetration from the top side of the TACT switch™. 3. Switch terminals and a PC board should not be coated with flux prior to soldering. 4. The second soldering should be done after the switch returns to normal temperature. Notes are common to this series/models. 1. This site catalog shows only outline specifications. When using the products, please obtain formal specifications for supply. 2. Please place purchase orders for taping products per minimum order unit (1 reel or a case). 3. For φ330mm diameter reel requirements, please contact us. 4. Please contact us for automotive use products. 5. Protective structure : Assumes the switch is left alone without being operated. Under the specified conditions, dust and water ingress with a significant impact on the switch's on-off function is prevented. IP67・IP68 dust and water resistance is guaranteed for the switch alone and performance may not be guaranteed depending on the mounting conditions and usage. https://www.alps.com/prod/info/E/HTML/Tact/SurfaceMount/SKTA/SKTAACE010.html 4/4
