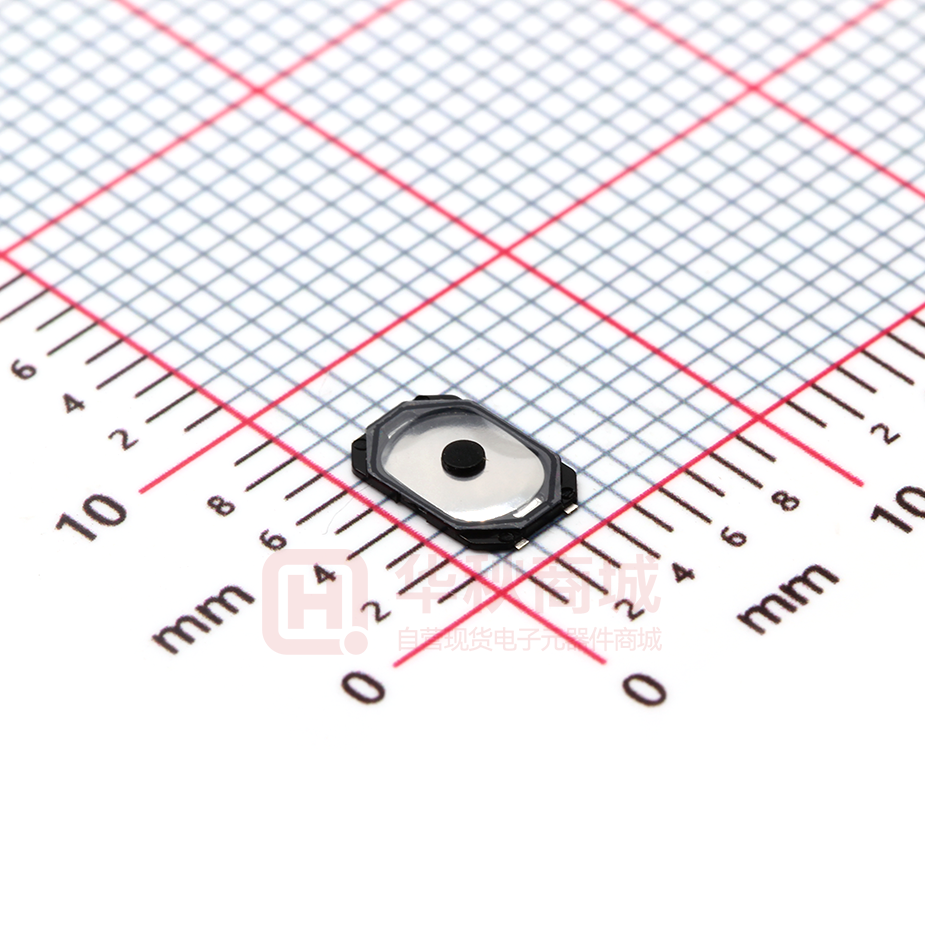

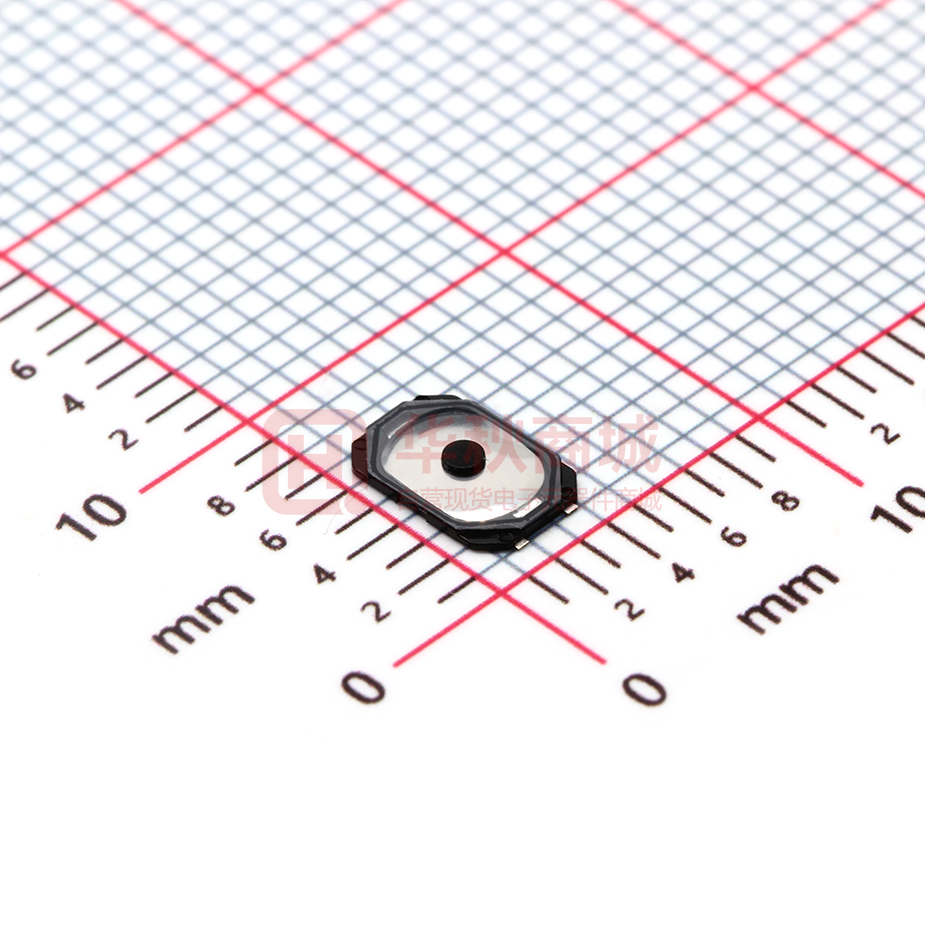

SKTKABE010

2018/5/7 SKTK Series - Basic information 5.9×4.0mm Long Operating Life Type (Surface Mount) SKTK Series Type Surface mount Operating force 2.5N Operating direction Top push Travel 0.23mm Operating life (5mA 5V DC) 1,000,000 cycles Initial contact resistance 500mΩ max. Protective structure IP67 equivalent Series type Sharp feeling type Operating temperature range -30℃ to +85℃ Rating (max.) 50mA 12V DC Rating (min.) 10μA 1V DC Electrical performance Insulation resistance 100MΩ min. 100V DC for 1min. Voltage proof 100V AC for 1min. Durability Vibration 10 to 55 to 10Hz/min., the amplitude is 1.5mm for all the Environmental performance Cold -40℃ 96h Dry heat 90℃ 96h Damp heat 60℃, 90 to 95%RH 96h Minimum order unit Japan (pcs.) Export frequencies, in the 3 direction of X, Y and Z for 2 hours respectively 10,000 10,000 Dimensions https://www.alps.com/prod/info/E/HTML/Tact/SurfaceMount/SKTK/SKTKABE010.html 1/4 2018/5/7 SKTK Series - Basic information Land Dimensions Circuit Diagram https://www.alps.com/prod/info/E/HTML/Tact/SurfaceMount/SKTK/SKTKABE010.html 2/4 2018/5/7 SKTK Series - Basic information Packing Specifications Taping Number of packages 1 reel (pcs.) 10,000 1 case / Japan 80,000 1 case / export 80,000 packing Tape width (mm) 16 Export package measurements (mm) 395×395×205 Soldering Conditions Condition for Reflow 1. Heating method Double heating method with infrared heater. 2. Temperature measurement Thermocouple 0.1 to 0.2 Φ CA(K) or CC(T) at solder joints (copper foil surface). A heat resisting tape should be used for fix measurement. 3. Temperature profile https://www.alps.com/prod/info/E/HTML/Tact/SurfaceMount/SKTK/SKTKABE010.html 3/4 2018/5/7 SKTK Series - Basic information (1) The above temperature shall be measured of the top of switch. There are cases where PC board's temperature greatly differs from that of the switch, depending on the material, size, thickness of PC board's and others. Care, should be taken to prevent the switch's surface temperature from exceeding 260℃. (2) Soldering conditions differ depending on reflow soldering machines. Prior verification of soldering condition is highly recommended. Manual Soldering Items Condition Soldering temperature 350℃ max. Duration of soldering 3s max. Capacity of soldering iron 60W max. 1. Consult with us for availability of TACT switch™ washing. 2. Prevent flux penetration from the top side of the TACT switch™. 3. Switch terminals and a PC board should not be coated with flux prior to soldering. 4. The second soldering should be done after the switch returns to normal temperature. https://www.alps.com/prod/info/E/HTML/Tact/SurfaceMount/SKTK/SKTKABE010.html 4/4
