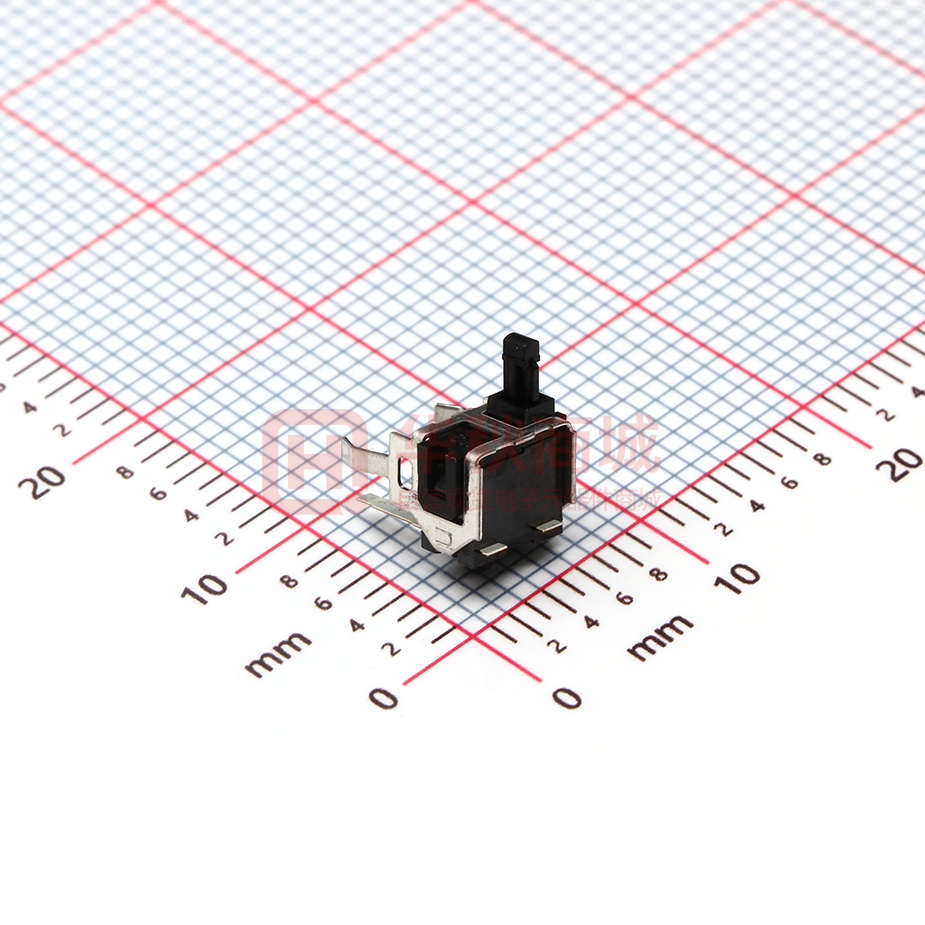

SPPB620300

2018/3/21 SPPB Series - Basic information General-purpose Type SPPB Series Operating direction Horizontal Poles 1 Positions 1 Operation part shape Push Terminal type For PC board (Dip) Operating force 0.35N max. Packaging style Bulk Operating temperature range -40℃ to +85℃ Rating (max.)/(min.) (Resistive load) 0.1A 30V DC/50μA 3V DC Electrical performance 1Ω max./2Ω max. Contact resistance （Initial/After operating life） Insulation resistance 100MΩ min. 100V DC Mechanical performance Durability Voltage proof 100V AC for 1 minute Terminal strength 3N for 1 minute Actuator strength 10N Operating life without load 50,000 cycles 2Ω max. Operating life with 50,000 cycles 2Ω max. load Rating （max.）（Resistive load） Environmental performance Cold -40℃ 500h Dry heat 85℃ 500h http://www.alps.com/prod/info/E/HTML/Switch/Detector/SPPB/SPPB620300.html 1/3 2018/3/21 SPPB Series - Basic information Damp heat Minimum order unit Japan (pcs.) Export 60℃, 90 to 95%RH 500h 2,000 10,000 Dimensions Mounting Hole Dimensions Viewed from direction A in the dimensions. Circuit Diagram http://www.alps.com/prod/info/E/HTML/Switch/Detector/SPPB/SPPB620300.html 2/3 2018/3/21 SPPB Series - Basic information Packing Specifications Bulk Number of packages 1 case / Japan (pcs.) 1 case / export 2,000 10,000 packing Export package measurements (mm) 400×270×290 Soldering Conditions Reference for Dip Soldering Items Dip soldering Preheating temperature 100℃max. Preheating time 60s max. Soldering temperature 255±5℃ Duration of immersion 5±1s Reference for Hand Soldering Soldering temperature 350±5℃ Soldering time 5s max. Notes are common to this series/models. 1. This site catalog shows only outline specifications. When using the products, please obtain formal specifications for supply. 2. Please place purchase orders per minimum order unit (integer). 3. This products can be used in vehicles. Although these products are designed to perform over a wide operating temperature range, please ensure that you receive and read the formal delivery specifications before use. http://www.alps.com/prod/info/E/HTML/Switch/Detector/SPPB/SPPB620300.html 3/3
