SPVM110100

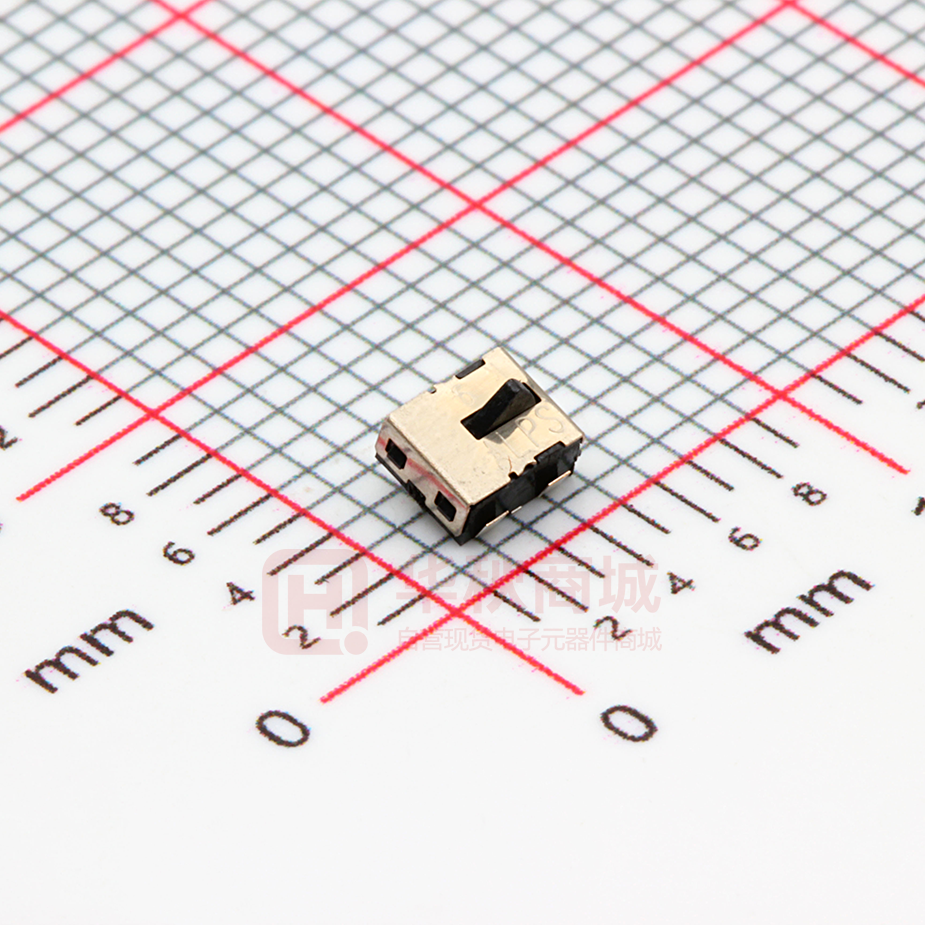

Compact Two-way Operation Type SPVM Series 3.5 G2.8 G height 1.5mm compact detector switch detects from both vertical and horizontal direction. Detector Push Slide Rotary Encoders Power Dual-in-line Package Type TACT SwitchTM CustomProducts 1 1 For PC board （Reflow） With terminal Without SPVM210200 Detector Switch Typical Specifications Items Rating max.） min.） （ （ / （Resistive load） Contact resistance （Initial /After operating life） Operating force Operating life Without load With load Specifications 1mA 5V DC/50BA 3V DC 2Ω max./5Ω max. 0.4N max. 50,000cycles 50,000cycles 1mA 5V DC） （ Product Line Poles Positions Terminal type Housing Without terminal Location lug With Without Minimum order unit pcs） （ Product No. SPVM110100 Drawing No. 1 SPVM110200 12,000 With SPVM210100 2 Taping Specifications (Taping Packaging) Reel Size Unit:mm Number of packages pcs.） （ 1 reel 1 case /Japan 1 case /export packing Tape width （mm） 3,000 ø380 17.4 6,000 12,000 16 Notes 1. When applying the soldered frame terminals as earth terminals, place No.3 and No.4 terminals on the same ground. 2. Please place purchase orders per minimum order unit (integer). 38 Detector Switch Compact Two-way Operation Type SPVM Series Dimensions No. Photo Style Unit:mm PC board mounting hole and land dimensions (Viewed from direction A) Detector Push On starting position 2.53 2.2 1.5 Total travel ø0.6 ø0 .7 Terminal No.1 2.8 ho le 3.6 2.1 Slide Rotary R0 3.5 2.5 1.2 (1.87) 1.6 (1) 1.7 2.8 1.7 1 ø0.8 A (0.75) 0.5 0.4 0.7 1 ø0 3.3 0.5 .9 ho le 5) 2.4 (R .2 Location lug Encoders Power Dual-in-line Package Type TACT SwitchTM CustomProducts 2.53 Terminal No.1 2.2 1.5 ON starting position Total travel position 3.6 2.1 2.8 le ho .7 ø0 ø0.6 R0 .2 (1.87) 2.8 2.2 3.5 2.5 1.2 1.6 (1) 1.7 1.7 1 ø0.8 ø0 .9 ho l 2 3.3 0.5 0.4 2-0.7 e A 2.8 (0.75) 0.5 1.45 2.3 1.8 1.8 Note Above dimensions indicate "with location lug" versions. （ Terminal Layout Viewed from Direction A） Circuit Diagram 1 2 ) 45 2. (R Location lug 39 Detector Switches List of Varieties（General-purpose Type） General-purpose Type Series SPPB SPVE SPPW8 SPVM SPVR SPVF SSCU SSCT Detector Photo Push Slide Rotary Encoders Operating temperature range Rating max.） （ （Resistive load） Rating min.） （ （Resistive load） Initial contact resistance Insulation resistance Voltage proof Electrical Mechanical Environmental performance performance Durability performance Terminal strength Power Dual-in-line Package Type TACT SwitchTM CustomProducts Operation type ｰ40℃ to ＋85℃ ｰ10℃ to ＋60℃ 0.1A 30V DC ｰ40℃ to ＋85℃ 1mA 5V DC ｰ10℃ to ＋60℃ ｰ40℃ to ＋85℃ 0.1A 12V DC 50BA 3V DC 50BA 3V DC 1Ω max. 500mΩ max. 100BA 3V DC 1Ω max. 50BA 3V DC 2Ω max. 100BA 3V DC 3Ω max. 500mΩ max. 70mΩ max. 20mΩ max. 100MΩ min. 250V DC 250V AC for 1 minute 100MΩ min. 100V DC 100V AC for 1 minute 3N for 1 minute 0.5N for 1 minute 3N for 1 minute 1N for 1 minute 5N 0.5N for 1 minute 2N 3N for 30s 1N 3N for 1 minute 5N 10N Actuator 5N 10N 10N strength Operating life 50,000cycles 50,000cycles 100,000cycles without Load 2Ω max. 1Ω max. 2Ω max. Operating life （0.1A 30V DC） （0.1A 30V DC） （0.1A 30V DC） with Load 50,000cycles 2Ω max. 50,000cycles 1Ω max. 100,000cycles 2Ω max. Cold ｰ20±2℃ for 96h 50,000cycles 5Ω max. （1mA 5V DC） 50,000cycles 5Ω max. 100,000cycles 10,000cycles 10,000cycles 1Ω max. 100mΩ max. 40mΩ max. （1mA 5V DC） （0.1A 12V DC） （0.1A 12V DC） 100,000cycles 1Ω max. 10,000cycles 150mΩ max. 10,000cycles 60mΩ max. ｰ40±2℃ for 96h ｰ20±2℃ for 96h Dry heat Damp heat W Dimensions D （mm） H Manual soldering Dip Soldering soldering Reflow soldering Number of poles 85±2℃ for 96h 40±2℃, 90 to 95%RH for 96h 6.3 3 4.9 300±5℃, 5s max. 260±5℃, 5±1s 2.3 3.4 5 4 2.8 3.5 1.5 3.6 4.2 1.2 9 3.5 4.5 300±10℃, ＋1 3 0s 11 5.8 7 12.5 5 11.5 350±5℃, 3s max. 350±5℃, 3s max. ― 255±5℃, 5±1s Please see P.79 1 ― 245±5℃, 5±1s ― ― 1 0.5N max. 44 260±5℃, 5±1s 1.2 0.4N max. 0.35N max. 40 0.3N max. 41 Operation force 0.35N max. Page 28 34 0.3N max. 36 0.7±0.3N 45 38 ● Detector Switches Soldering Conditions ……………………………………………………………………………………79 ● Detector Switches Cautions ……………………………………………………………………………………………………80 25 Detector Switches Soldering Conditions Example of Reflow Soldering Condition 1. Heating method: Double heating method with infrared heater. 2. Temperature measurement: Thermocouple 0.1 to 0.2φ CA K） CC T） soldering portion copper foil surface） A heat resisting tape （ or （ at （ . should be used for fixed measurement. 3. Temperature profile Detector Push 300 Temperature (˚C ) A max. B Slide Rotary Encoders Power Dual-in-line Package Type TACT SwitchTM 200 D E 100 Time (s) Pre-heating F max. C Room temperature CustomProducts Series Reflow type） （ SPPB A （℃） 3s max. B （℃） 230 C s） （ 40 20 D （℃） E （℃） F s） （ 250 SPPW8 SPVE SPVG SPVL SPVM SPVN SPVP SPVR SPVS SSCM SPPY5 240 260 200 180 40 230 150 120 20 150 Room temperature 180 Notes 1. The condition mentioned above is the temperature on the mounting surface of a PC board. There are cases where the PC board's temperature greatly differs from that of the switch, depending on the PC board's material, size, thickness, etc. The above-stated conditions shall also apply to switch surface temperatures. 2. Soldering conditions differ depending on reflow soldering machines. Prior verification of soldering condition is highly recommended. 79
