SPVQC10100

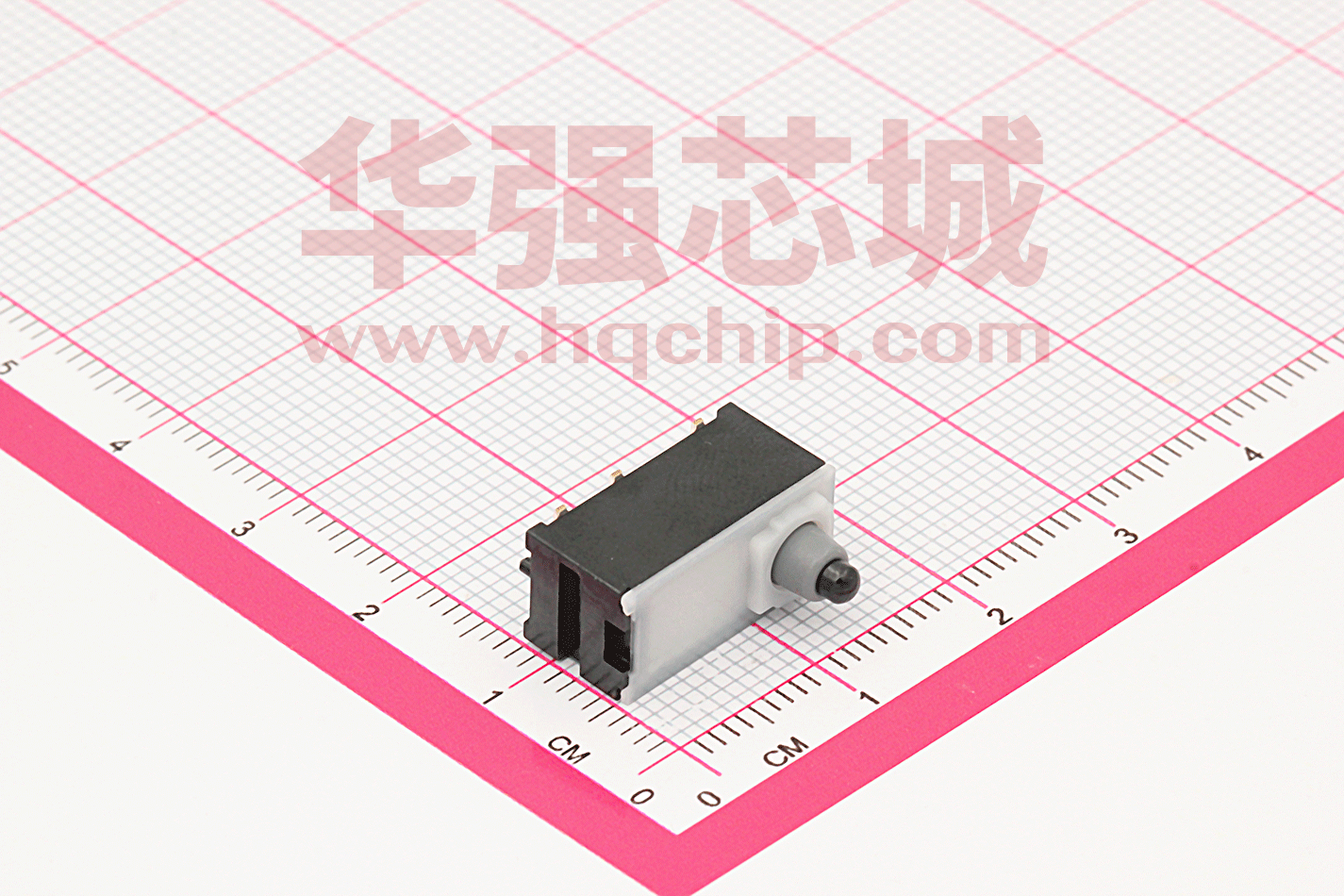

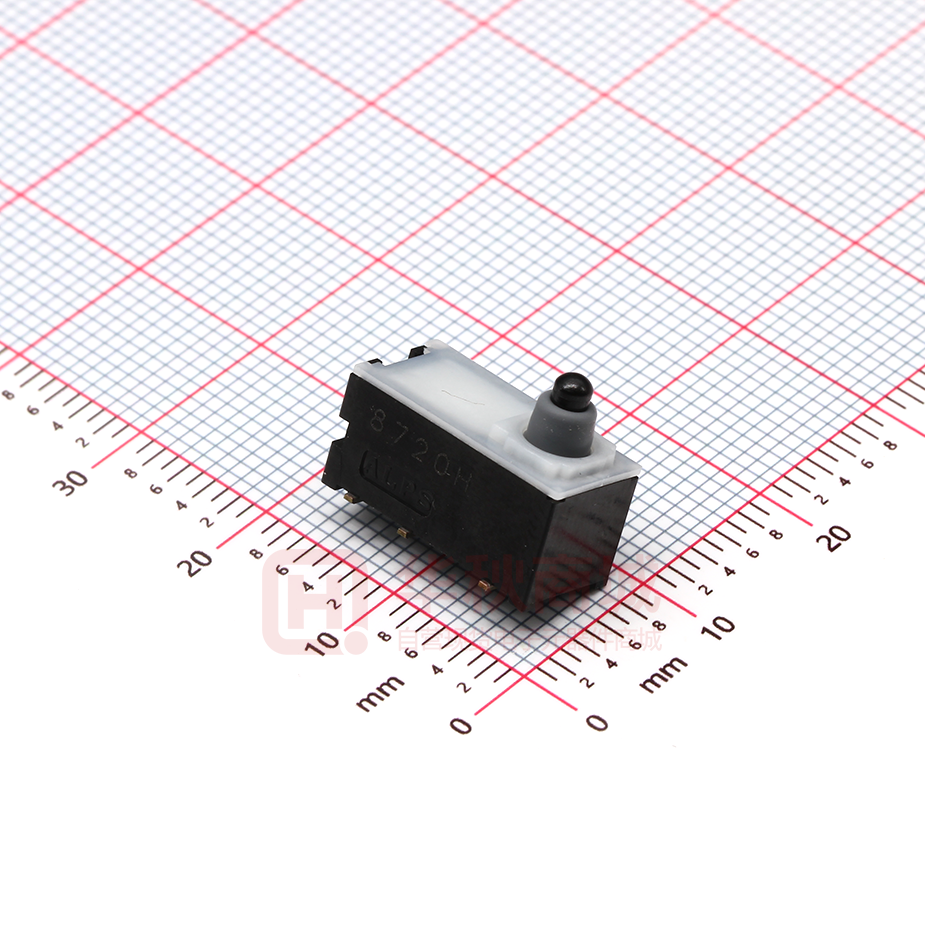

2017/6/19 SPVQC Series - Basic information Water-proof Type (Surface Mount) SPVQC Series Part number SPVQC10100 Poles 2 Positions 2 Changeover timing Non shorting Operation part shape Push Terminal type For PC board (Reflow) Operating force 1±0.5N Operating temperature range -40℃ to +85℃ Rating (max.)/(min.) (Resistive load) 50mA 18V DC/50μA 5V DC Electrical performance 75mΩ max./200mΩ max. Contact resistance （Initial/After operating life） Insulation resistance 100MΩ min. 500V DC Mechanical performance Durability Voltage proof 250V AC for 1 minute Terminal strength 3N for 1 minute Actuator strength 20N Operating life without load 300,000 cycles 200mΩ max. Operating life with 300,000 cycles 200mΩ max. load Rating （max.）（Resistive load） Environmental performance Cold -40℃ 500h Dry heat 85℃ 500h Damp heat 60℃, 90 to 95%RH 500h http://www.alps.com/prod/info/E/HTML/Switch/Detector/SPVQC/SPVQC10100.html 1/6 2017/6/19 SPVQC Series - Basic information Minimum order unit Japan (pcs.) Export 300 2,400 Photo Dimensions http://www.alps.com/prod/info/E/HTML/Switch/Detector/SPVQC/SPVQC10100.html 2/6 2017/6/19 SPVQC Series - Basic information Land Dimensions http://www.alps.com/prod/info/E/HTML/Switch/Detector/SPVQC/SPVQC10100.html 3/6 2017/6/19 SPVQC Series - Basic information Circuit Diagram Packing Specifications Taping Number of packages 1 reel (pcs.) 1 case / Japan 300 1,200 http://www.alps.com/prod/info/E/HTML/Switch/Detector/SPVQC/SPVQC10100.html 4/6 2017/6/19 SPVQC Series - Basic information 1 case / export packing 2,400 Tape width (mm) 32 Export package measurements (mm) 403×403×360 Soldering Conditions Example of Reflow Soldering Condition 1. Heating method : Double heating method with infrared heater. 2. Temperature measurement : Thermocouple 0.1 to 0.2 Φ CA (K) or CC (T) at soldering portion (copper foil surface). A heat resisting tape should be used for fixed measurement. 3. Temperature profile A(℃) 3s max. B(℃) C(s) D(℃) E(℃) F(s) 250 230 40 180 150 120 (1) The condition mentioned above is the temperature on the mounting surface of a PC board. There are cases where the PC board's temperature greatly differs from that of the switch, surface depending on the PC board's material, size, thickness, etc. The above-stated conditions shall also apply to switch surface temperatures. (2) Soldering conditions differ depending on reflow soldering machines. Prior verification of soldering condition is highly recommended. Reference for Hand Soldering Soldering temperature 350±5℃ Soldering time 3s max. http://www.alps.com/prod/info/E/HTML/Switch/Detector/SPVQC/SPVQC10100.html 5/6 2017/6/19 SPVQC Series - Basic information Notes are common to this series/models. 1. This site catalog shows only outline specifications. When using the products, please obtain formal specifications for supply. 2. This unit cannnot be used in water (IP67 rating, except for terminal). 3. Please place purchase orders per minimum order unit (integer). 4. This products can be used in vehicles. Although these products are designed to perform over a wide operating temperature range, please ensure that you receive and read the formal delivery specifications before use. http://www.alps.com/prod/info/E/HTML/Switch/Detector/SPVQC/SPVQC10100.html 6/6
