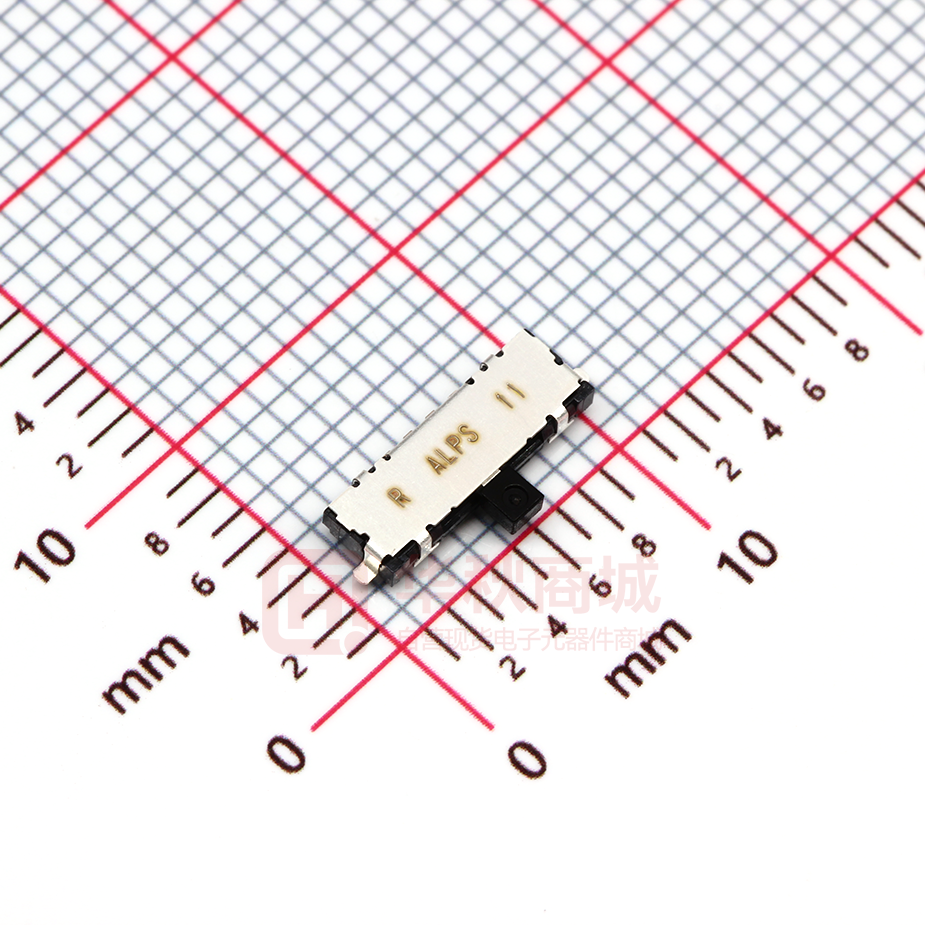

SSAG230400

SSAG Recoil Type for Single-side and Both Sides Detector Long life recoil type meeting more compact and low-profile needs ■ Typical Specifications Items Specifications 10mA 5V DC / 50μA 3V DC Contact resistance （Initial performance / After lifetime） 200mΩ max. / 500mΩ max. Slide Rating（max.）（ / min.） （Resistive load） 100,000 cycles（Recoil side） 30,000 cycles（Lock side） Without load Operating life With load Push 1N（Recoil side） 1.5N（Lock side） Operating force 100,000 cycles（Recoil side） 30,000 cycles（Lock side） （10mA 5V DC） Rotary Product Line Travel Operating section Changeover Poles Positions Soldering Operating （mm） timing directions For PC board insert Without SSAG130100 With SSAG130200 Without SSAG130300 With SSAG130400 Without SSAG230100 With SSAG230200 Japan Export Products No. 1 Flat 1 Horizontal Not specified 3 Reflow Right-side recoil 2 3 4,000 16,000 Without SSAG230300 With SSAG230400 Without SSAG330100 With SSAG330200 Without SSAG330300 With SSAG330400 Flat Doubleside recoil For PC board insert 4 5 Flat 6 Small size Big size General Use Type General Use Type 1.5 For PC board insert Drawing No. Dual-in-line Package Type Location lug Power Left-side recoil Minimum order unit（pcs.） Shape of flame leg Packing Specifications Taping Unit:mm 1 reel 1 case /Japan 1 case /export packing Tape width （mm） Export package measurements （mm） 4,000 8,000 16,000 24 428×413×172 Number of packages（pcs.） Circuit Diagram（Viewed from Direction A） Reel size ø380 25.4 c 1 2 3 4 Refer to P.106 for soldering conditions. 79 SSAG Recoil Type for Single-side and Both Sides Unit:mm No. PC board mounting hole and land dimensions （Viewed from the direction A） Style Slide With boss 1.5 Travel:momentary A Rotary 5 1.2 8 0.5 0.45 2.5 0.9 le 0.2 1.15 B 4-0.7 ho 1.9 1.4 0.9 1.5 C Travel:with detent 1.4 0.9 1.5 1 1 1 1 2-ø 0.6 0.9 1.55 Push L 0.65 4-0.4 3 9.05 1 1 1 0.2 Terminal No. ① 1.2 8.92 2-ø0.8 5 8.77 0.12 Note the arrangement of circuit patterns 0.5 Detector Dimensions Power Operating force : B →C C→B 1.5N  B →A  1N  With boss Dual-in-line Package Type 9.05 1 1 1 0.2 Terminal No.① 0.6 3 4-0.4 0.9 1.55 4-0.7 0.2 1.9 0.9 1.5 0.9 1.4 1.5 C Travel:with detent 5 1.1 2-ø0.8 5 10.17 1 le 1.15 B 1 ho 8.8 1.1 Note the arrangement of circuit patterns 0.5 Small size Big size General Use Type General Use Type 1.5 Travel:momentary A 2 0.9 2.5 1 2-ø 0.65 L Operating force : B→C C→B 1.5N  B→A  1N   With boss R B 0.5 0.12 le 1.9 0.9 1.4 4-0.7 ho 0.2 0.45 5 1.2 8 2-ø0.8 5 8.77 0.5 8.92 Operating force : B→A A→B 1.5N  B→C  1N 80 0.6 0.9 1.55 1.4 0.9 1.5 C Travel:momentary 1.5 1.5 Travel:with detent A 0.9 1.15 3 1 1 1 2-ø Note the arrangement of circuit patterns 1.2 2.5 3 4-0.4 0.65 9.05 1 1 1 0.2 Terminal No.① SSAG／Recoil Type for Single-side and Both Sides Unit:mm No. Detector Dimensions PC board mounting hole and land dimensions （Viewed from the direction A） Style Slide With boss 9.05 1 1 1 0.2 Terminal No.① 0.6 3 4-0.4 4-0.7 1.9 0.2 5 1.1 8.8 1.1 Note the arrangement of circuit patterns 0.5 2-ø0.8 5 10.17 Rotary 1.15 B 1 le 0.9 0.9 1.4 1.5 C Travel:momentary 1.5 1.5 Travel:with detent A 4 1 ho 2.5 0.9 1.55 0.9 Push 1 2-ø 0.65 R Power Operating force : B→A A →B 1.5N  B→C  1N With boss Dual-in-line Package Type Terminal No. ① 0.2 9.05 1 1 1 3 4-0.4 0.2 0.5 0.45 5 1.2 8 2.5 1.4 1.9 1.5 1.4 0.9 1.5 C Travel:momentary B 1.15 1.5 Travel:momentary A le Small size Big size General Use Type General Use Type 5 4-0.7 ho 0.9 0.6 0.9 1.55 0.9 0.65 1 1 1 2-ø 1.2 8.92 Note the arrangement of circuit patterns 0.5 2-ø0.8 5 8.77 0.12 Operating force : B→A B→C 1N Terminal No.① 9.05 1 1 4-0.4 0.6 3 1 0.2 With boss C 0.2 4-0.7 le 2.5 0.9 1 1.9 1.4 1.5 B 1 ho 0.9 0.9 1.55 1.5 Travel:momentary A 1.5 6 0.9 0.65 1 2-ø Travel:momentary 2-ø0.8 5 10.17 0.5 1.15 5 1.1 8.8 1.1 Note the arrangement of circuit patterns Operating force : B→A B→C 1N Note Dimensions drawing is for type with location lugs. 81 Slide Switches List of Varieties SSAJ SSSS8 SSAL SSAG SSSS7 Horizontal ● ● ● ● ● Vertical — ● — — — 1-2 ● ● ● — ● 1-3 — ● — ● ● 1-4 — — — — — 2-2 — ● — — — 2-3 — ● — — — 2-4 — — — — — 4-2 — — — — — Travel（mm） 1.4 1.5, 2 2 1.5 2 Operating temperature range −10℃ to ＋60℃ −40℃ to ＋85℃ Automotive use ̶ ̶ 10mA 5V DC 0.3A 5V DC Detector Series Photo Slide Actuator direction Push Poles-positions Rotary Power −10℃ to ＋60℃ −40℃ to ＋85℃ ̶ ̶ ̶ Dual-in-line Package Type Life cycle Rating（max.） （Resistive load） Rating（min.） （Resistive load） Small size Big size General Use Type General Use Type Durability Operating life without load Operating life with load Load: as rating Initial contact resistance 10,000 cycles 500mΩ max. 300mΩ max. Voltage proof 10,000 cycles 100mΩ max. 10,000 cycles 130mΩ max. 70mΩ max. 30,000 cycles （Lock side） 100,000 cycles （Recoil side） 500mΩ max. 10,000 cycles 130mΩ max. 10Ω max. 200mΩ max. 70mΩ max. 100MΩ min. 500V DC 100V AC for 1minute 500V AC for 1minute 3N for 1minute Operating direction 10N Pulling direction Cold −40℃ 96h −40℃ 500h −40℃ 96h −20℃ 500h Dry heat 85℃ 96h 85℃ 500h 85℃ 96h 85℃ 500h 40℃, 90 to 95%RH 96h 60℃, 90 to 95%RH 500h Damp heat Page 10,000 cycles 100mΩ max. 100,000 cycles 10Ω max. 100MΩ min. 100V DC Terminal strength Environmental performance 0.3A 4V DC 50μA 3V DC Electrical Insulation resistance performance Mechanical performance Actuator strength 10mA 5V DC 40℃, 90 to 95%RH 60℃, 90 to 95%RH 96h 500h 72 74 77 79 82 Slide Switches Soldering Conditions・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 106 Slide Switches Cautions・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 107 Note ● Indicates applicability to all products in the series. 70 Slide Switches / Soldering Conditions Detector Example of Reflow Soldering Condition 1. Heating method: Double heating method with infrared heater. 2. T  emperature measurement: T  hermocouple φ 0.1 to 0.2 CA（K）or CC（T）at soldering portion（copper foil surface）. A heat resisting tape should be used for fixed measurement. 3. Temperature profile Slide Push Temperature (C ) 300 B 200 D E 100 Rotary Room temperature Power Series（Reflow type） Dual-in-line Package Type SSSS2 A max. Time (s) Pre-heating F max. A（℃） 3s max. Vertical 1-pole, 3-position Horizontal 1-pole, 2-position 1-pole, 3-position 2-pole, 3-position 260 Vertical 1-pole, 2-position 250 Small size Big size General Use Type General Use Type SSAG, SSAJ, SSAL, SSSS8, SSS7 C B（℃） C（s） D（℃） E（℃） F（s） 230 40 180 150 120 260 Notes 1. The condition mentioned above is the temperature on the mounting surface of a PC board. There are cases where the PC board’s temperature greatly differs from that of the switch, depending on the PC board’s material, size, thickness, etc. The above-stated conditions shall also apply to switch surface temperatures. 2. Soldering conditions differ depending on reflow soldering machines. Prior verification of soldering condition is highly recommended. Reference for Hand Soldering Series Soldering temperature Soldering time SSSF, SSSU 350±10℃ 3+1/0s SSSS2 350±10℃ 4s max. SSSS9 350±10℃ 3s max. SSAG, SSAJ, SSAL 350±5℃ 3s max. SSSS8 330±5℃ 3s max. SSSS7 320±5℃ 3s max. SSAC 300±10℃ 2s max. Items Dip soldering Reference for Dip Soldering (For PC board terminal types) Series 106 Preheating temperature Preheating time Soldering temperature Duration of immersion SSSS2 100℃ max. 60s max. 260±5℃ 3±1s SSSS9 120℃ max. 60s max. 260±5℃ 5+0/-1s（2 times） SSSF, SSSU 100℃ max. 60s max. 260±5℃ 10±1s/5±1s SSAC 100℃ max. 60s max. 260±5℃ 5±1s
