SSSS811101

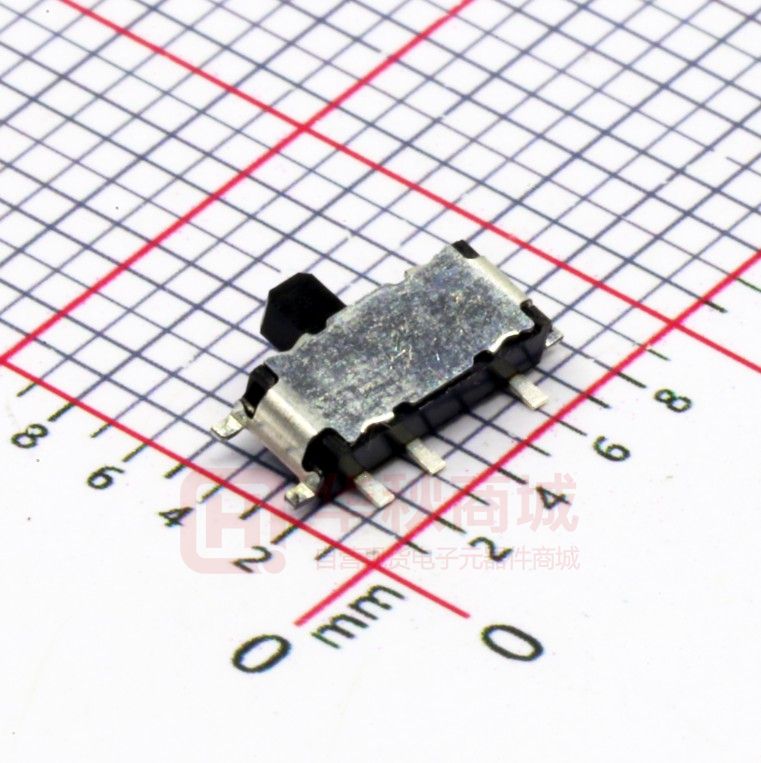

2017/6/19 SSSS8 Series - Basic information 1.4(H)mm, 1.5/2.0mm-travel Surface Mount Type SSSS8 Series Part number SSSS811101 Travel 1.5mm Actuator directions Horizontal Actuator thickness 1.1mm Poles 1 Positions 2 Operating force Refer to the dimensions Changeover timing Not specified Ground terminal With Soldering Reflow Operating temperature range -40℃ to +85℃ Rating (max.)/(min.) (Resistive load) 0.3A 5V DC/50µA 3V DC Electrical performance Contact resistance (Initial performance/After lifetime) 70mΩ max./130mΩ max. Insulation resistance 100MΩ min. 100V DC Voltage proof 100V AC for 1 minute Terminal strength 3N for 1 minute Mechanical performance Actuator strength Durability Operating direction 10N Pulling direction 10N Operating life without load 10,000 cycles 100mΩ max. Operating life with load (at max. rated load) 10,000 cycles 130mΩ max. http://www.alps.com/prod/info/E/HTML/Switch/Slide/SSSS8/SSSS811101.html 1/5 2017/6/19 Environmental performance SSSS8 Series - Basic information Cold -40℃ 500h Dry heat 85℃ 500h Damp heat 60℃, 90 to 95%RH 500h Minimum order unit (pcs.) Japan 4,500 Export 18,000 Photo Dimensions Land Dimensions http://www.alps.com/prod/info/E/HTML/Switch/Slide/SSSS8/SSSS811101.html 2/5 2017/6/19 SSSS8 Series - Basic information Viewed from direction A in the dimensions. Circuit Diagram Packing Specifications Taping Number of packages 1 reel 4,500 (pcs.) 1 case / Japan 9,000 1 case / export 18,000 packing http://www.alps.com/prod/info/E/HTML/Switch/Slide/SSSS8/SSSS811101.html 3/5 2017/6/19 SSSS8 Series - Basic information Reel width W(mm) 17.4 Tape width (mm) 16 Export package measurements (mm) 417×409×139 Soldering Conditions Example of Reflow Soldering Condition 1. Heating method Double heating method with infrared heater. 2. Temperature measurement Thermocouple 0.1 to 0.2 Φ CA (K) or CC (T) at soldering portion (copper foil surface). A heat resisting tape should be used for fixed measurement. 3. Temperature profile A(℃) B(℃) C(s) D(℃) E(℃) F(s) 230 40 180 150 120 3s max. 260 (1) The condition mentioned above is the temperature on the mounting surface of a PC board. There are cases where the PC board's temperature greatly differs from that of the switch, depending on the PC board's material, size, thickness, etc. The above-stated conditions shall also apply to switch surface temperatures. (2) Soldering conditions differ depending on reflow soldering machines. Prior verification of soldering condition is highly recommended. Reference for Hand Soldering Soldering temperature 330±5℃ Soldering time 3s max. http://www.alps.com/prod/info/E/HTML/Switch/Slide/SSSS8/SSSS811101.html 4/5 2017/6/19 SSSS8 Series - Basic information Notes are common to this series/models. 1. This site catalog shows only outline specifications. When using the products, please obtain formal specifications for supply. 2. Please place purchase orders per minimum order unit (integer). 3. Products other than those listed in the above chart are also available. Please contact us for details. 4. Please contact us for automotive use products. http://www.alps.com/prod/info/E/HTML/Switch/Slide/SSSS8/SSSS811101.html 5/5
