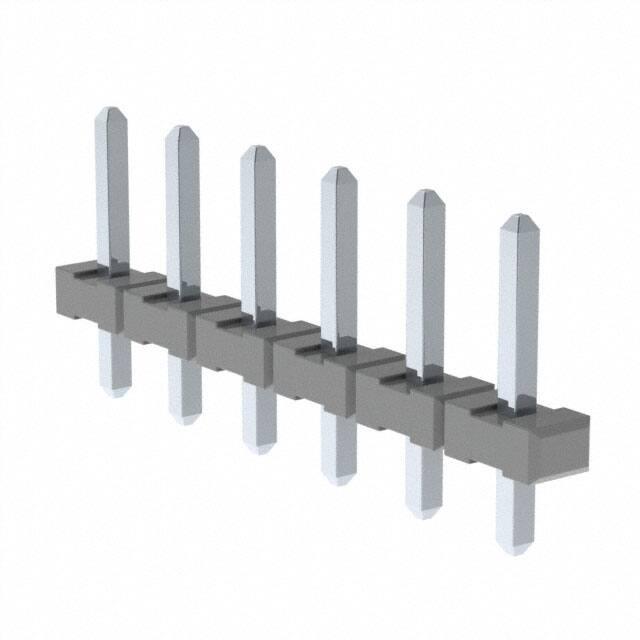

32.506

NEXT FIND IT FIXED PRINTED CIRCUIT Metric Pin Spacinga Tubular Screw Clamp Extremely small "footprint" and the highest circuit density available Extremely small "footprint" and the highest circuit density available For use when standard size printed circuit terminal blocks are too large for available space or where a very small circuit board is utilized. Our new subminiature design offers a low profile, an extremely small "footprint" and the highest circuit density available. • • • Multipole, Single Mold Design Up to 7 Circuits Per Inch Pin Spacing is Maintained When Terminal Blocks are Placed End-to-End With Wire Protector Housing Material: Polyamide 6.6 Standard Color: Gray a Blocks with US (Inch) pin spacing begin on page 110. Ratings IEC/VDE AK550 AK555 Front Wire Entry Top Wire Entry Pin Spacing 3.5mm (.138) Stripping Length 5.5mm (.217) Screw Hole Diameter 2.5mm (.098) Wire Range 0.25-1.0mm2 28-16 AWG 28-16 AWG (File No. E101811) (File No. LR68503) No. of Poles Ordering Information Terminal Block, mm Pin Spacing Current 6A 6A 6A Type Voltage 125V 300V 150V Length L mm (in.) Cat. No. 2 3 4 5 6 7 AK550/2wp AK550/3wp AK550/4wp AK550/5wp AK550/6wp AK550/7wp 29.002 29.003 29.004 29.005 29.006 29.007 7.00 ( 10.50 ( 14.00 ( 17.50 ( 21.00 ( 24.50 ( 8 9 10 11 12 13 AK550/8wp AK550/9wp AK550/10wp AK550/11wp AK550/12wp AK550/13wp 29.008 29.009 29.010 29.011 29.012 29.013 28.00 31.50 35.00 38.50 42.00 45.50 14 15 16 AK550/14wp AK550/15wp AK550/16wp 29.014 29.015 29.016 L ➤ Pin Spacing 3.5mm (.138) Stripping Length 5.5mm (.217) Screw Hole Diameter 2.5mm (.098) Std. Pk. Type 100 100 50 50 50 30 AK555/2wp AK555/3wp AK555/4wp AK555/5wp AK555/6wp AK555/7wp 29.102 29.103 29.104 29.105 29.106 29.107 7.00 ( 10.50 ( 14.00 ( 17.50 ( 21.00 ( 24.50 ( (1.10) (1.24) (1.38) (1.52) (1.65) (1.79) 30 30 30 20 20 20 AK555/8wp AK555/9wp AK555/10wp AK555/11wp AK555/12wp AK555/13wp 29.108 29.109 29.110 29.111 29.112 29.113 28.00 31.50 35.00 38.50 42.00 45.50 49.00 (1.93) 52.50 (2.07) 56.00 (2.21) 20 20 15 AK555/14wp AK555/15wp AK555/16wp 29.114 29.115 29.116 ➤ ➤1.75mm ➤ 6.5mm L ➤ .28) .41) .55) .69) .83) .97) 100 100 50 50 50 30 (1.10) (1.24) (1.38) (1.52) (1.65) (1.79) 30 30 30 20 20 20 49.00 (1.93) 52.50 (2.07) 56.00 (2.21) 20 20 15 ➤1.75mm ➤ 8.3mm 3.8mm 2mm ➤ ➤ ➤ ➤ ➤ 3.5mm ➤ ➤ Dimensions mm 0.90 1.75 2.00 3.50 132 in. 0.035 0.069 0.079 0.138 mm 3.80 6.50 8.30 6.5mm ➤ ➤ ➤ 2mm➤ ➤ ➤ 3.5mm 2mm 8.3mm ➤ ➤ ➤ ➤ Ø0.9mm Std. Pk. ➤ ➤ ➤ ➤ ➤ ➤ ➤ 3.5mm ➤ ➤ Voltage 125V 300V 150V Length L mm (in.) Cat. No. ➤ 2mm➤ Current 6A 6A 6A .28) .41) .55) .69) .83) .97) ➤ ➤ Wire Range 0.25-1.0mm 2 28-16 AWG 28-16 AWG Ø0.9mm • • • in. 0.150 0.256 0.327 Altech Corp.® • 35 Royal Road • Flemington NJ 08822-6000 • Phone (908) 806-9400 • Fax (908) 806-9490 3.5mm ➤ PREVIOUS HOME NEXT FIND IT FIXED PRINTED CIRCUIT Metric Pin Spacinga Tubular Screw Clamp For wire-to-board connections in applications with strict budgets and where infrequent wire terminations are expected. Our "mini" design offers a low profile and a small "footprint". The popular AK500 is now offered in a single mold design as Type AK502. Please contact Altech for ordering information. AK500 Multipole, Modular Design Wire Protector Standard Housing Material: Polyamide 6.6 Standard Color: Gray Front Wire Entry Pin Spacing 5mm (.197) Stripping Length 6mm (.236) Screw Hole Diameter 3mm (.118) Blocks with US (Inch) pin spacing begin on page 110. Ratings IEC/VDE Wire Range 0.5-1.5mm2 22-14 AWG 22-14 AWG (File No. E101811) (File No. LR68503) No. of Poles Ordering Information Terminal Block, mm Pin Spacing Top Wire Entry Type Current 16A 15A 15A Pin Spacing 5mm (.197) Stripping Length 5mm (.197) Screw Hole Diameter 3mm (.118) Voltage 250V 300V 300V Length L mm (in.) Cat. No. Wire Range 0.5-1.5mm 2 22-14 AWG 22-14 AWG Std. Pk. 30.702 30.703 30.704 30.705 30.706 30.707 10.00 15.00 20.00 25.00 30.00 35.00 ( .39) ( .59) ( .79) ( .99) (1.18) (1.38) 100 100 50 50 50 30 AK505/2wp AK505/3wp AK505/4wp AK505/5wp AK505/6wp AK505/7wp 30.752 30.753 30.754 30.755 30.756 30.757 10.00 15.00 20.00 25.00 30.00 35.00 ( .39) ( .59) ( .79) ( .99) (1.18) (1.38) 100 100 50 50 50 30 8 9 10 11 12 14 AK500/8wp AK500/9wp AK500/10wp AK500/11wp AK500/12wp AK500/13wp 30.708 30.709 30.710 30.711 30.712 30.713 40.00 45.00 50.00 55.00 60.00 65.00 (1.58) (1.77) (1.97) (2.17) (2.36) (2.56) 30 30 30 20 20 20 AK505/8wp AK505/9wp AK505/10wp AK505/11wp AK505/12wp AK505/13wp 30.758 30.759 30.760 30.761 30.762 30.763 40.00 45.00 50.00 55.00 60.00 65.00 (1.58) (1.77) (1.97) (2.17) (2.36) (2.56) 30 30 30 20 20 20 15 16 16 17 18 19 AK500/14wp AK500/15wp AK500/16wp AK500/17wp AK500/18wp AK500/19wp 30.714 30.715 30.716 30.717 30.718 30.719 70.00 75.00 80.00 85.00 90.55 95.00 (2.76) (2.95) (3.15) (3.35) (3.54) (3.74) 20 20 15 15 15 15 AK505/14wp AK505/15wp AK505/16wp AK505/17wp AK505/18wp AK505/19wp 30.764 30.765 30.766 30.767 30.768 30.769 70.00 75.00 80.00 85.00 90.00 95.00 (2.76) (2.95) (3.15) (3.35) (3.54) (3.74) 20 20 15 15 15 15 20 21 22 23 24 AK500/20wp AK500/21wp AK500/22wp AK500/23wp AK500/24wp 30.720 30.721 30.722 30.723 30.724 100.00 105.00 110.00 115.00 120.00 (3.94) (4.13) (4.33) (4.53) (4.72) 15 10 10 10 10 AK505/20wp AK505/21wp AK505/22wp AK505/23wp AK505/24wp 30.770 30.771 30.772 30.773 30.774 100.00 105.00 110.00 115.00 120.00 (3.94) (4.13) (4.33) (4.53) (4.72) 15 10 10 10 10 ➤ ➤➤ L ➤ ➤ 7.5mm ➤ 10mm 2.7mm 10mm 4.5mm ➤ ➤ ➤ ø0.9mm 2.6mm ➤ ➤ ➤ 3.5mm➤ ➤ ➤ ➤ 2.6mm ➤ ➤ 5mm ➤ ➤ 0.6mm ➤ ➤ 5mm 7.5mm ➤ ➤ ➤ ➤ ➤ ➤ ➤ in. 0.146 0.177 0.197 0.295 0.394 0.591 L ➤ ➤➤ ➤ ➤ ➤ mm 3.70 4.50 5.00 7.50 10.00 15.00 Length L mm (in.) Std. Pk. Cat. No. AK500/2wp AK500/3wp AK500/4wp AK500/5wp AK500/6wp AK500/7wp Dimensions in. 0.024 0.035 0.039 0.043 0.102 0.106 0.138 Type Voltage 250V 300V 300V 2 3 4 5 6 7 0.6mm mm 0.60 0.90 1.00 1.10 2.60 2.70 3.50 Current 16A 15A 15A 2.7mm Ø1mm a AK505 ➤ 3.7mm ➤ ➤ ➤ ➤ 1.1mm ➤ ➤1.1mm • • • • Altech Corp.® • 35 Royal Road • Flemington NJ 08822-6000 • Phone (908) 806-9400 • Fax (908) 806-9490 133 PREVIOUS HOME NEXT FIND IT FIXED PRINTED CIRCUIT Metric Pin Spacinga Tubular Screw Clamp For wire-to-board connections in applications with strict budgets and where infrequent wire terminations are expected. The popular AK100 is now offered in a single mold design as Type AK102. Please contact Altech for ordering information. • Multipole, Modular Design • Wire Protector Standard • Housing Material: Polyamide 6.6 • Standard Color: Gray a Blocks with US (Inch) pin spacing begin on page 110. AK100 AK105 Front Wire Entry Top Wire Entry Pin Spacing 5mm (.197) Stripping Length 6mm (.236) Screw Hole Diameter 4mm (.158) Pin Spacing 5mm (.197) Stripping Length 5mm (.197) Screw Hole Diameter 3mm (.118) Wire Range 0.5-2.5mm 2 22-14 AWG 22-14 AWG Ratings IEC/VDE (File No. E101811) (File No. LR68503) No. of Poles Ordering Information Terminal Block, mm Pin Spacing Current 16A 15A 15A Type Voltage 250V 300V 300V Length L mm (in.) Cat. No. Wire Range 0.5-2.5mm 2 22-14 AWG 22-14 AWG Std. Pk. Current 16A 15A 15A Type Cat. No. Voltage 250V 300V 300V Length L mm (in.) Std. Pk. 2 3 4 5 6 7 AK100/2wp AK100/3wp AK100/4wp AK100/5wp AK100/6wp AK100/7wp 30.002 30.003 30.004 30.005 30.006 30.007 10.00 15.00 20.00 25.00 30.00 35.00 ( .39) ( .59) ( .79) ( .99) (1.18) (1.38) 100 100 50 50 50 30 AK105/2wp AK105/3wp AK105/4wp AK105/5wp AK105/6wp AK105/7wp 30.052 30.053 30.054 30.055 30.056 30.057 10.00 15.00 20.00 25.00 30.00 35.00 ( .39) ( .59) ( .79) ( .99) (1.18) (1.38) 100 100 50 50 50 30 8 9 10 11 12 13 AK100/8wp AK100/9wp AK100/10wp AK100/11wp AK100/12wp AK100/13wp 30.008 30.009 30.010 30.011 30.012 30.013 40.00 45.00 50.00 55.00 60.00 65.00 (1.58) (1.77) (1.97) (2.17) (2.36) (2.56) 30 30 30 20 20 20 AK105/8wp AK105/9wp AK105/10wp AK105/11wp AK105/12wp AK105/13wp 30.058 30.059 30.060 30.061 30.062 30.063 40.00 45.00 50.00 55.00 60.00 65.00 (1.58) (1.77) (1.97) (2.17) (2.36) (2.56) 30 30 30 20 20 20 14 15 16 17 18 19 AK100/14wp AK100/15wp AK100/16wp AK100/17wp AK100/18wp AK100/19wp 30.014 30.015 30.016 30.017 30.018 30.019 70.00 75.00 80.00 85.00 90.00 95.00 (2.76) (2.95) (3.15) (3.35) (3.54) (3.74) 20 20 15 15 15 15 AK105/14wp AK105/15wp AK105/16wp AK105/17wp AK105/18wp AK105/19wp 30.064 30.065 30.066 30.067 30.068 30.069 70.00 75.00 80.00 85.00 90.00 95.00 (2.76) (2.95) (3.15) (3.35) (3.54) (3.74) 20 20 15 15 15 15 20 21 22 23 24 AK100/20wp AK100/21wp AK100/22wp AK100/23wp AK100/24wp 30.020 30.021 30.022 30.023 30.024 100.00 105.00 110.00 115.00 120.00 (3.94) (4.13) (4.33) (4.53) (4.72) 15 10 10 10 10 AK105/20wp AK105/21wp AK105/22wp AK105/23wp AK105/24wp 30.070 30.071 30.072 30.073 30.074 100.00 105.00 110.00 115.00 120.00 (3.94) (4.13) (4.33) (4.53) (4.72) 15 10 10 10 10 L ➤ ➤➤ ➤ ➤ 9mm ➤ 0.7mm L ➤ ➤➤ ➤ ➤ 9mm ➤ 4.5mm 5mm ➤ 4mm ➤ ➤ ➤ ➤ ➤ ➤ ➤ ➤ 5mm ➤ 3.1mm ➤ 12.5mm ➤ ➤ Ø1mm ➤ ➤ ➤ 3.1mm ➤ ➤ in. 0.157 0.177 0.197 0.295 0.354 0.394 0.492 0.591 0.886 0.984 ➤ mm 4.00 4.50 5.00 7.50 9.00 10.00 12.50 15.00 22.50 25.00 ➤ ➤ ➤ 134 in. 0.024 0.028 0.035 0.039 0.043 0.079 0.102 0.106 0.122 0.134 0.138 ➤ ➤ ➤ ➤ 3.4mm ➤ 12.5mm 3.4mm Ø1mm ➤ ➤ Dimensions mm 0.60 0.70 0.90 1.00 1.10 2.00 2.60 2.70 3.10 3.40 3.50 ➤ 0.7mm 2mm 2m Altech Corp.® • 35 Royal Road • Flemington NJ 08822-6000 • Phone (908) 806-9400 • Fax (908) 806-9490 3.5mm PREVIOUS HOME AK110 Front Wire Entry 30.102 30.103 30.104 30.105 30.106 30.107 15.00 ( .59) 22.50 ( .89) 30.00 (1.18) 37.50 (1.48) 45.00 (1.77) 52.50 (2.08) 100 100 50 50 50 30 AK110/8wp AK110/9wp AK110/10wp AK110/11wp AK110/12wp AK110/13wp 30.108 30.109 30.110 30.111 30.112 30.113 60.00 67.50 75.00 82.50 90.00 97.50 (2.36) (2.66) (2.95) (3.25) (3.54) (3.84) AK110/14wp AK110/15wp AK110/16wp AK110/17wp AK110/18wp AK110/19wp 30.114 30.115 30.116 30.117 30.118 30.119 105.00 112.50 120.00 127.50 135.00 142.50 AK110/20wp AK110/21wp AK110/22wp AK110/23wp AK110/24wp 30.120 30.121 30.122 30.123 30.124 150.00 157.50 165.00 172.50 180.00 Length L mm (in.) Std. Pk. AK115/2wp AK115/3wp AK115/4wp AK115/5wp AK115/6wp AK115/7wp 30.152 30.153 30.154 30.155 30.156 30.157 15.00 ( .59) 22.50 ( .89) 30.00 (1.18) 37.50 (1.48) 45.00 (1.77) 52.50 (2.08) 100 100 50 50 50 30 30 30 30 20 20 20 AK115/8wp AK115/9wp AK115/10wp AK115/11wp AK115/12wp AK115/13wp 30.158 30.159 30.160 30.161 30.162 30.163 60.00 67.50 75.00 82.50 90.00 97.50 (2.36) (2.66) (2.95) (3.25) (3.54) (3.84) 30 30 30 20 20 20 (4.13) (4.43) (4.73) (5.02) (5.32) (5.61) 20 20 15 15 15 15 AK115/14wp AK115/15wp AK115/16wp AK115/17wp AK115/18wp AK115/19wp 30.164 30.165 30.166 30.167 30.168 30.169 105.00 112.50 120.00 127.50 135.00 142.50 (4.13) (4.43) (4.73) (5.02) (5.32) (5.61) 20 20 15 15 15 15 (5.91) (6.20) (6.50) (6.79) (7.09) 15 10 10 10 10 AK115/20wp AK115/21wp AK115/22wp AK115/23wp AK115/24wp 30.170 30.171 30.172 30.173 30.174 150.00 157.50 165.00 172.50 180.00 (5.91) (6.20) (6.50) (6.79) (7.09) 15 10 10 10 10 L ➤ 9mm ➤ ➤ 12.5mm ➤ ➤ 3.4mm 4mm 3.1mm 7.5mm➤ ➤ ➤ ➤ 34.402 34.403 34.404 34.405 34.406 34.407 15.00 ( .59) 25.00 ( .99) 35.00 (1.38) 45.00 (1.77) 55.00 (2.17) 65.00 (2.56) AK600/8wp AK600/9wp AK600/10wp AK600/11wp AK600/12wp 34.408 34.409 34.410 34.411 34.412 ➤ 75.00 85.00 95.00 105.00 115.00 ➤ L ➤ ➤ Std. Pk. 100 50 30 30 20 20 (2.95) (3.35) (3.74) (4.13) (4.53) 20 15 15 10 10 7.5mm ➤ ➤ 0.6mm 3.5mm 2.6mm ➤ ➤ 7.5mm 3.5mm➤ ➤ ➤ ➤ Ø0.9mm ➤ ➤ ➤ 2mm ➤ 7.5mm ➤ ➤ ➤ ➤ ø1mm ➤ 3.4mm 12.5mm ➤ ➤ ➤ ➤ ➤ ➤ 3.1mm 9mm AK600/2wp AK600/3wp AK600/4wp AK600/5wp AK600/6wp AK600/7wp ➤ ➤ ➤ ➤ ➤ 4.5mm ➤ ➤ ➤ ➤ ➤ ➤ 0.7mm Length L mm (in.) 2.7mm ➤ Cat. No. Type ➤ ➤ Voltage 500V 300V 300V ➤ L Cat. No. Type Current 16A 15A 15A Ø1mm 0.7mm➤ ➤ ➤ Voltage 500V 300V 300V ➤ AK110/2wp AK110/3wp AK110/4wp AK110/5wp AK110/6wp AK110/7wp Wire Range 0.5-1.5mm 2 22-14 AWG 22-14 AWG Current 16A 15A 15A 10mm Std. Pk. Wire Range 0.5-2.5mm2 22-14 AWG 22-14 AWG ➤ Length L mm (in.) Pin Spacing 10mm (.394) Stripping Length 6mm (.236) Screw Hole Diameter 3mm (.118) ➤ Cat. No. Type Top Wire Entry ➤ Voltage 500V 300V 300V AK600 Front Wire Entry 4.5mm Current 16A 15A 15A AK115 Pin Spacing 7.5mm (.295) Stripping Length 5mm (.197) Screw Hole Diameter 3.5mm (.138) ➤ ➤ Wire Range 0.5-2.5mm 2 22-14 AWG 22-14 AWG FIND IT ➤ ➤ Pin Spacing 7.5mm (.295) Stripping Length 6mm (.236) Screw Hole Diameter 3.5mm (.138) NEXT 2mm ➤ 10mm ➤ ➤➤ 1.1mm Altech Corp.® • 35 Royal Road • Flemington NJ 08822-6000 • Phone (908) 806-9400 • Fax (908) 806-9490 135 PREVIOUS HOME NEXT FIND IT FIXED PRINTED CIRCUIT Metric Pin Spacinga Screw-Cage Clamp Minimum clearance, small footprint conserves valuable PCB real estate For wire-to-board connections in industrial applications and where frequent wire terminations occur. • Multipole, Modular Design • Housing Material: Polyamide 6.6 • Standard Color: AK300 is Gray, all others are green Ratings IEC/VDE (File No. E101811) (File No. LR68503) No. of Poles Terminal Block, mm Pin Spacing Pin Spacing 5.08mm (.200)c Stripping Length 7mm (.276) Screw Hole Diameter 3.5mm (.138) Wire Range 0.5-2.5mm 2 22-12 AWG 22-12 AWG Wire Range 0.5-1.5mm2 28-14 AWG 28-14 AWG Type AK300/2 AK300/3 AK300/4 AK300/5 AK300/6 AK300/7 30.602 30.603 30.604 30.605 30.606 30.607 10.00 15.00 20.00 25.00 30.00 35.00 ( .39) ( .59) ( .79) ( .99) (1.18) (1.38) 100 100 50 50 50 30 8 9 10 11 12 13 AK300/8 AK300/9 AK300/10 AK300/11 AK300/12 AK300/13 30.608 30.609 30.610 30.611 30.612 30.613 40.00 45.00 50.00 55.00 60.00 65.00 (1.58) (1.77) (1.97) (2.17) (2.36) (2.56) 30 30 30 20 20 20 14 15 16 17 18 19 AK300/14 AK300/15 AK300/16 AK300/17 AK300/18 AK300/19 30.614 30.615 30.616 30.617 30.618 30.619 70.00 75.00 80.00 85.00 90.00 95.00 (2.76) (2.95) (3.15) (3.35) (3.54) (3.74) 20 20 15 15 15 15 20 21 22 23 24 AK300/20 AK300/21 AK300/22 AK300/23 AK300/24 30.620 30.621 30.622 30.623 30.624 100.00 105.00 110.00 115.00 120.00 (3.94) (4.13) (4.33) (4.53) (4.72) 15 10 10 10 10 Dimensions mm 5.00 5.08 6.50 8.10 9.00 10.00 10.50 12.50 13.50 15.00 15.24 19.00 Std. Pk. 2 3 4 5 6 7 2.7mm ➤ in. 0.020 0.024 0.031 0.035 0.039 0.071 0.098 0.106 0.118 0.138 0.157 0.173 0.177 Voltage 250V 300V 300V Length L mm (in.) Cat. No. ➤ mm 0.50 0.60 0.80 0.90 1.00 1.80 2.50 2.70 3.00 3.50 4.00 4.40 4.50 Current 16A 15A 15A in. 0.197 0.200 0.256 0.319 0.354 0.394 0.413 0.492 0.531 0.591 0.600 0.748 L ➤ ➤ ➤ 0.6mm ➤ 1mm ➤ ➤ 5mm ➤ ➤ Current 16A 15A 15A Type AK(Z)250/2 AK(Z)250/3 AK(Z)250/4 AK(Z)250/5 AK(Z)250/6 Voltage 250V 300V 300V Length L mm (in.) Cat. No. 32.402 32.403 32.404 32.405 32.406 10.16 15.24 20.32 25.40 30.48 Std. Pk. (.40) (.60) (.80) (1.00) (1.20) 100 100 50 50 50 0.6mm ➤ 12.5mm ➤ L ➤ 1.8mm Ordering Information Pin Spacing 5mm (.197) Stripping Length 7mm (.276) Screw Hole Diameter 3.5mm (.138) 8.1mm ➤ 10mm Blocks with US (Inch) pin spacing begin on page 110. AK(Z)250 Front Wire Entry 4.5mm ➤ ➤➤ 12.5mm ➤ a AK300 45˚ Wire Entry 3.5mm 0.8mm 2.5mm ➤ ➤ 6.5mm ➤ ➤ 1mm c 0.5mm ➤ ➤ 4mm ➤ ➤ Appropriate for use in metric pin spacings up to the number of poles shown. 138 Altech Corp.® • 35 Royal Road • Flemington NJ 08822-6000 • Phone (908) 806-9400 • Fax (908) 806-9490 PREVIOUS HOME NEXT FIND IT Test probe openings on back for access to pins Open Bottom Design AK350 AK700 AK351 Front Wire Entry Front Wire Entry Front Wire Entry Pin Spacing 5mm (.197) Stripping Length 6mm (.236) Screw Hole Diameter 4.0mm (.158) Pin Spacing 5mm (.197) Stripping Length 6mm (.236) Screw Hole Diameter 4.0mm (.158) Wire Range 0.5-2.5mm2 22-12 AWG 28-14 AWG Wire Range 0.5-2.5mm 2 22-12 AWG 28-14 AWG Current 16A 16A 16A Type Cat. No. Voltage 250V 300V 300V Length L mm (in.) Std. Pk. Current 16A 16A 16A Type Pin Spacing 5mm (.197) Stripping Length 8mm (.315) Screw Hole Diameter 3.5mm (.138) Voltage 250V 300V 300V Length L mm (in.) Cat. No. Wire Range 0.5-4mm2 22-12 AWG 22-12 AWG Std. Pk. Current 16A 15A 15A Type Voltage 250V 300V 300V Length L mm (in.) Cat. No. Std. Pk. AK350/2 AK350/3 AK350/4 AK350/5 AK350/6 AK350/7 32.002 32.003 32.004 32.005 32.006 32.007 10.00 15.00 20.00 25.00 30.00 35.00 ( .39) ( .59) ( .79) ( .99) (1.18) (1.38) 100 100 50 50 50 30 AK351/2 AK351/3 AK351/4 AK351/5 AK351/6 AK351/7 33.002 33.003 33.004 33.005 33.006 33.007 10.00 15.00 20.00 25.00 30.00 35.00 ( .39) ( .59) ( .79) ( .99) (1.18) (1.38) 100 100 50 50 50 30 AK700/2 AK700/3 AK700/4 AK700/5 AK700/6 AK700/7 30.802 30.803 30.804 30.805 30.806 30.807 10.00 15.00 20.00 25.00 30.00 35.00 ( .39) ( .59) ( .79) ( .99) (1.18) (1.38) 100 100 50 50 50 30 AK350/8 AK350/9 AK350/10 AK350/11 AK350/12 AK350/13 32.008 32.009 32.010 32.011 32.012 32.013 40.00 45.00 50.00 55.00 60.00 65.00 (1.58) (1.77) (1.97) (2.17) (2.36) (2.56) 30 30 30 20 20 20 AK351/8 AK351/9 AK351/10 AK351/11 AK351/12 AK351/13 33.008 33.009 33.010 33.011 33.012 33.013 40.00 45.00 50.00 55.00 60.00 65.00 (1.58) (1.77) (1.97) (2.17) (2.36) (2.56) 30 30 30 20 20 20 AK700/8 AK700/9 AK700/10 AK700/11 AK700/12 AK700/13 30.808 30.809 30.810 30.811 30.812 30.813 40.00 45.00 50.00 55.00 60.00 65.00 (1.58) (1.77) (1.97) (2.17) (2.36) (2.56) 30 30 30 20 20 20 AK350/14 AK350/15 AK350/16 AK350/17 AK350/18 AK350/19 32.014 32.015 32.016 32.017 32.018 32.019 70.00 75.00 80.00 85.00 90.00 95.00 (2.76) (2.95) (3.15) (3.35) (3.54) (3.74) 20 20 15 15 15 15 AK351/14 AK351/15 AK351/16 AK351/17 AK351/18 AK351/19 33.014 33.015 33.016 33.017 33.018 33.019 70.00 75.00 80.00 85.00 90.00 95.00 (2.76) (2.95) (3.15) (3.35) (3.54) (3.74) 20 20 15 15 15 15 AK700/14 AK700/15 AK700/16 AK700/17 AK700/18 AK700/19 30.814 30.815 30.816 30.817 30.818 30.819 70.00 75.00 80.00 85.00 90.00 95.00 (2.76) (2.95) (3.15) (3.35) (3.54) (3.74) 20 20 15 15 15 15 AK350/20 AK350/21 AK350/22 AK350/23 AK350/24 32.020 32.021 32.022 32.023 32.024 100.00 105.00 110.00 115.00 120.00 (3.94) (4.13) (4.33) (4.53) (4.72) 15 10 10 10 10 AK351/20 AK351/21 AK351/22 AK351/23 AK351/24 33.020 33.021 33.022 33.023 33.024 100.00 105.00 110.00 115.00 120.00 (3.94) (4.13) (4.33) (4.53) (4.72) 15 10 10 10 10 AK700/20 AK700/21 AK700/22 AK700/23 AK700/24 30.820 30.821 30.822 30.823 30.824 100.00 105.00 110.00 115.00 120.00 (3.94) (4.13) (4.33) (4.53) (4.72) 15 10 10 10 10 ➤ 2.7mm➤ ➤ 5mm ➤ ➤ ➤ ➤ 1mm 4.5mm ➤ ➤ ➤ 9mm ➤ 10.5mm ➤ ➤ 2.7mm ➤ ➤ 5mm ➤ ➤ ➤ ➤ 1mm 19mm ➤➤ 0.8mm ➤ ➤ 4.5mm➤ ➤ 2.7mm➤ ➤ 5mm ➤ ➤ ➤ 3.5mm 13.5mm 4.4mm ➤ ➤ 4mm ➤ ➤ ➤ 3mm 0.8mm➤ ➤ L ➤ ➤ 0.6mm ➤ ➤➤ 0.6mm 13.5mm 9mm ➤ ➤ ➤ ➤ 3.5mm ➤ ➤ ➤ 3mm ➤ ➤ ➤ 0.6mm L ➤ ➤ ➤ ➤ ➤ ➤ L ➤ ➤ ➤ ➤ 0.9mm Altech Corp.® • 35 Royal Road • Flemington NJ 08822-6000 • Phone (908) 806-9400 • Fax (908) 806-9490 5mm ➤ ➤ 139 PREVIOUS HOME NEXT FIND IT FIXED PRINTED CIRCUIT DOUBLE AND SINGLE LEVEL Metric Pin Spacinga Screw-Cage Clamp For wire-to-board connections in industrial applications and where frequent wire terminations occur. Use Double Level where space requirements call for high density wiring. • Multipole, Modular Design • Housing Material: Polyamide 6.6 • Standard Color: Green Blocks with US (Inch) pin spacing begin on page 110. AK750 Top Wire Entry Front Wire Entry Pin Spacing 5mm (.197) Stripping Length 8mm (.315) Screw Hole Diameter 3mm (.118) Wire Range 0.5-4mm2 22-12 AWG 22-12 AWG Ratings IEC/VDE (File No. E101811) (File No. LR68503) No. of Poles AK705 AK400 AK750 AK710 AK790 AK793 Length L mm (in.) Cat. No. Std. Pk. Wire Range 0.5-4mm 2 22-12 AWG 22-12 AWG Type Length L mm (in.) Cat. No. Std. Pk. AK705/2 AK705/3 AK705/4 AK705/5 AK705/6 AK705/7 35.102 35.103 35.104 35.105 35.106 35.107 10.00 15.00 20.00 25.00 30.00 35.00 ( .39) ( .59) ( .79) ( .99) (1.18) (1.38) 100 100 50 50 50 30 AK750/4 AK750/6 AK750/8 AK750/10 AK750/12 AK750/14 31.004 31.006 31.008 31.010 31.012 31.014 12.50 17.50 22.50 27.50 32.50 37.50 ( .49) ( .69) ( .89) (1.08) (1.28) (1.48) 50 50 25 25 25 15 16 18 20 22 24 26 28 30 32 34 36 38 40 42 44 46 48 50 52 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 AK705/8 AK705/9 AK705/10 AK705/11 AK705/12 AK705/13 35.108 35.109 35.110 35.111 35.112 35.113 40.00 45.00 50.00 55.00 60.00 65.00 (1.58) (1.77) (1.97) (2.17) (2.36) (2.56) 30 30 30 20 20 20 AK750/16 AK750/18 AK750/20 AK750/22 AK750/24 AK750/26 31.016 31.018 31.020 31.022 31.024 31.026 42.50 47.50 52.50 57.50 62.50 67.50 (1.67) (1.87) (2.07) (2.26) (2.46) (2.66) 15 15 15 10 10 10 AK705/14 AK705/15 AK705/16 AK705/17 AK705/18 AK705/19 35.114 35.115 35.116 35.117 35.118 35.119 70.00 75.00 80.00 85.00 90.00 95.00 (2.76) (2.95) (3.15) (3.35) (3.54) (3.74) 20 20 15 15 15 15 AK750/28 AK750/30 AK750/32 AK750/34 AK750/36 AK750/38 31.028 31.030 31.032 31.034 31.036 31.038 72.50 77.50 82.50 87.50 92.50 97.50 (2.85) (3.05) (3.25) (3.45) (3.64) (3.84) 10 10 10 10 10 10 AK705/20 AK705/21 AK705/22 AK705/23 AK705/24 35.120 35.121 35.122 35.123 35.124 100.00 105.00 110.00 115.00 120.00 (3.94) (4.13) (4.33) (4.53) (4.72) 15 10 10 10 10 AK750/40 AK750/42 AK750/44 AK750/46 AK750/48 AK750/50 31.040 31.042 31.044 31.046 31.048 31.050 102.50 107.50 112.50 117.50 122.50 127.50 (4.03) (4.23) (4.43) (4.63) (4.82) (5.02) 5 5 5 5 5 5 L ➤➤ 0.6mm 10.5mm ➤ ➤ ➤ ➤ ➤ ➤ 11.1mm ➤ ➤ 0.9mm 11.5mm 9mm ➤ ➤ 4.4mm 4mm ➤ ➤ ➤ 18mm 3.4mm ➤ ➤ ➤ 5mm ➤ ➤ ➤ ➤ 21.5mm ➤ ➤ 2.5mm ➤ 2.7mm➤ ➤ ➤ in. 0.413 0.425 0.437 0.453 0.492 0.591 0.709 0.748 0.846 0.854 0.886 0.984 1.236 1.339 ➤ ➤ ➤ mm 10.50 10.80 11.10 11.50 12.50 15.00 18.00 19.00 21.50 21.70 22.50 25.00 31.40 34.00 L ➤ ➤ 0.6mm 2.7mm➤ ➤ 2.5mm➤ ➤ 5mm ➤ 34mm ➤ ➤ 140 in. 0.024 0.03 0.035 0.039 0.098 0.106 0.134 0.157 0.173 0.177 0.197 0.205 0.256 0.295 0.354 0.394 Voltage 250V 300V 300V 2 3 4 5 6 7 Dimensions mm 0.60 0.80 0.90 1.00 2.50 2.70 3.40 4.00 4.40 4.50 5.00 5.20 6.50 7.50 9.00 10.00 Current 16A 15A 15A 4 6 8 10 12 14 ➤ Terminal Block, mm Pin Spacing Type Voltage 250V 300V 300V 19mm Ordering Information Current 16A 15A 15A Pin Spacing 5mm (.197) Stripping Length 8mm (.315) Screw Hole Diameter 4mm (.158) ➤ ➤ 4mm ➤ ➤ ➤ a AK705 ➤ 15mm ➤ ➤ 0.9mm Altech Corp.® • 35 Royal Road • Flemington NJ 08822-6000 • Phone (908) 806-9400 • Fax (908) 806-9490 5mm ➤➤ ➤ PREVIOUS HOME NEXT FIND IT No pin offset AK790 AK793 AK710 Front Wire Entry Front Wire Entry Front Wire Entry Pin Spacing 5mm (.197) Stripping Length 8mm (.315) Screw Hole Diameter 4mm (.157) Pin Spacing 5mm (.197) Stripping Length 8mm (.315) Screw Hole Diameter 4mm (.157) Voltage 250V 300V 300V Wire Range 0.5-4mm2 22-12 AWG b 22-12 AWG b Current 16A 15A 15A Wire Range 0.5-4mm2 22-12 AWG 22-12AWG Voltage 250V 300V 300V Cat. No. Length L mm (in.) Std. Pk. AK790/4 34.804 10.00 ( .39) 50 AK790/8 34.808 20.00 ( .79) 25 AK793/4 34.904 20.00 ( .79) 50 AK790/12 34.812 30.00 (1.18) 25 AK793/6 34.906 30.00 (1.18) 50 AK790/16 34.816 40.00 (1.58) 15 AK793/8 34.908 40.00 (1.58) 30 AK790/20 34.820 50.00 (1.97) 15 AK793/10 34.910 50.00 (1.97) 30 AK790/24 34.824 60.00 (2.36) 10 AK793/12 34.912 60.00 (2.36) 20 AK790/28 34.828 70.00 (2.76) 10 AK793/14 34.914 70.00 (2.76) 20 Type Type Cat. No. Length L mm (in.) Std. Pk. 34.902 10.00 ( .39) 100 AK793/2 AK790/32 34.832 80.00 (3.15) 10 AK793/16 34.916 80.00 (3.15) 15 AK790/36 34.836 90.00 (3.54) 10 AK793/18 34.918 90.00 (3.54) 15 AK790/40 34.840 100.00 (3.94) 5 AK790/44 34.844 110.00 (4.33) 5 AK790/48 34.848 120.00 (4.72) 5 AK790/52 34.852 130.00 (5.12) 5 ➤ ➤ 0.6mm 21.7mm 10.8mm ➤ ➤➤ L ➤ ➤ 10.9mm ➤ ➤ Cat. No. Length L mm (in.) Std. Pk. AK710/2 AK710/3 AK710/4 AK710/5 AK710/6 AK710/7 30.902 30.903 30.904 30.905 30.906 30.907 15.00 ( .59) 22.50 ( .89) 30.00 (1.18) 37.50 (1.48) 45.00 (1.77) 52.50 (2.08) 100 100 50 50 50 30 AK710/8 AK710/9 AK710/10 AK710/11 AK710/12 AK710/13 30.908 30.909 30.910 30.911 30.912 30.913 60.00 67.50 75.00 82.50 90.00 97.50 AK710/14 AK710/15 30.914 30.915 Type L ➤ 0.6mm➤ ➤ (2.36) (2.66) (2.95) (3.25) (3.54) (3.84) 30 30 30 20 20 20 105.00 (4.13) 112.50 (4.43) 20 20 ➤ 10.5mm ➤ ➤ 2.5mm ➤ ➤ ➤ 4.4mm 5.2mm ➤ 15mm ➤ ➤ 5mm ➤ ➤ 0.9mm ➤ ➤ ➤ ➤ 0.9mm ➤ ➤ 2.5mm ➤ 4mm ➤ ➤ ➤ 31.4mm 16.4mm 5mm ➤ ➤ ➤ 0.9mm ➤ ➤ 5mm ➤ 2.7mm 7.5mm ➤ ➤ ➤ Pending Note: Missing No. of Poles available in 1997 b ➤➤ ➤➤ ➤ ➤ 2.7mm ➤ 2.7mm ➤ 5mm 3.4mm ➤ ➤ ➤➤ 18mm ➤ ➤ 31.4mm ➤ ➤ ➤ ➤ Voltage 500V 300V 300V ➤ L ➤ ➤ 0.6mm ➤ ➤ Current 16A 15A 15A 19mm Current 16A 15A 15A ➤ ➤➤ Wire Range 0.5-4mm2 22-12 AWG b 22-12 AWG b Pin Spacing 7.5mm (.295) Stripping Length 8mm (.315) Screw Hole Diameter 3.5mm (.138) 9.3mm ➤ ➤ 5mm b Pending Note: Missing No. of Poles available in 1997 Altech Corp.® • 35 Royal Road • Flemington NJ 08822-6000 • Phone (908) 806-9400 • Fax (908) 806-9490 141 PREVIOUS HOME NEXT FIND IT FIXED PRINTED CIRCUIT DOUBLE AND SINGLE LEVEL Metric Pin Spacinga Screw-Cage Clamp For wire-to-board connections in industrial applications and where frequent wire terminations occur. Use Double Level where space requirements call for high density wiring. • Multipole, Modular Design • Housing Material: Polyamide 6.6 • Standard Color: Green Blocks with US (Inch) pin spacing begin on page 110. Ratings IEC/VDE (File No. E101811) (File No. LR68503) Pin Spacing 10mm (.394) Stripping Length 8mm (.315) Screw Hole Diameter 4mm (.158) Wire Range 0.5-4mm2 22-12 AWG 22-12 AWG Wire Range 0.5-4mm2 22-12 AWG 22-12 AWG Current 16A 15A 15A Voltage 630V 300V 300V Voltage 630V 300V 300V Length L mm (in.) Type 4 6 8 10 12 14 2 3 4 5 6 7 AK800/2 AK800/3 AK800/4 AK800/5 AK800/6 AK800/7 39.102 39.103 39.104 39.105 39.106 39.107 15.00 25.00 35.00 45.00 55.00 65.00 ( .59) ( .99) (1.38) (1.77) (2.17) (2.56) 100 50 30 30 20 20 AK850/4 AK850/6 AK850/8 AK850/10 AK850/12 AK850/14 34.704 34.706 34.708 34.710 34.712 34.714 17.50 27.50 37.50 47.50 57.50 67.50 ( .69) (1.08) (1.48) (1.87) (2.26) (2.66) 50 25 15 15 10 10 16 18 20 22 24 8 9 10 11 12 AK800/8 AK800/9 AK800/10 AK800/11 AK800/12 39.108 39.109 39.110 39.111 39.112 75.00 (2.95) 85.00 (3.35) 95.00 (3.74) 105.00 (4.13) 115.00 (4.53) 20 15 15 10 10 AK850/16 AK850/18 AK850/20 AK850/22 AK850/24 34.716 34.718 34.720 34.722 34.724 77.50 87.50 97.50 107.50 117.50 (3.05) (3.45) (3.84) (4.23) (4.63) 10 10 10 10 10 Cat. No. Std. Pk. Type ➤ ➤ 10.5mm➤ ➤ 2.5mm ➤ 21.5mm ➤ 11.1mm➤ ➤ ➤ L L 0.6mm Std. Pk. ➤ ➤ ➤ ➤ m➤ Cat. No. ➤ Length L mm (in.) Current 16A 15A 15A No. of Poles AK850 AK800 ➤ ➤ Terminal Block, mm Pin Spacing Pin Spacing 10mm (.394) Stripping Length 8mm (.315) Screw Hole Diameter 3.5mm (.138) ➤ Ordering Information AK850 Front Wire Entry ➤ a AK800 Front Wire Entry 0.6mm ➤ ➤➤ 10mm 0.9mm ➤ 34mm 4mm ➤➤ 2.7mm ➤ ➤ 10mm ➤ ➤ ➤ ➤ ➤ ➤➤➤➤ 4.4mm 19mm ➤ 19mm 4mm ➤ ➤ ➤ in. 0.413 0.437 0.591 0.748 0.846 0.984 1.339 ➤ 2.7mm mm 10.50 11.10 15.00 19.00 21.50 25.00 34.00 ➤ ➤ ➤➤ ➤➤ 142 in. 0.024 0.035 0.098 0.106 0.157 0.173 0.197 0.394 0.9mm 10mm ➤ Altech Corp.® • 35 Royal Road • Flemington NJ 08822-6000 • Phone (908) 806-9400 • Fax (908) 806-9490 5mm ➤ 15mm ➤ ➤ 4.4mm ➤ Dimensions mm 0.60 0.90 2.50 2.70 4.00 4.40 5.00 10.00 ➤5mm PREVIOUS HOME NEXT FIND IT FIXED PRINTED CIRCUIT Metric Pin Spacinga Dual Pin Screwless Spring Clamp Choose from 3 methods of clamp actuation: Type AK(Z)3000 - Insert a small screwdriver with a tip width up to 3mm (approx. 1/8") into slot in housing and push to open clamp. AK3001KD 45° Wire Entry With Grooved Push Lever Type AK(Z)3001KD - Push on grooved lever with screwdriver to open clamp. Type AK(Z)3001FD - Simply push flat lever with finger to open clamp. • Interlocking Sectional Design • Stainless Steel Spring • Front to Rear Pin Spacing, 5mm (.197 in.) • Multipole Assemblies Supplied with End Plate Installed. • Housing Material: Polyamide 6.6 • Standard Color: Light Gray Blocks with US (inch) pin spacing begin on page 110. Wire Range 0.5-2.5mm2 28-14 AWG 28-14 AWG Ratings IEC/VDE Current 10A 15A 15A Voltage 250V 300V 300V Length L mm (in.) 2 3 4 5 6 AK3000/1 AK3000/2 AK3000/3 AK3000/4 AK3000/5 AK3000/6 32.101 32.102 32.103 32.104 32.105 32.106 7.20 ( .28) 12.20 ( .48) 17.20 ( .67) 22.20 ( .87) 27.20 (1.07) 32.20 (1.28) 7 8 9 10 11 12 AK3000/7 AK3000/8 AK3000/9 AK3000/10 AK3000/11 AK3000/12 32.107 32.108 32.109 32.110 32.111 32.112 37.20 42.20 47.20 52.20 57.20 62.20 Type b (1.46) (1.66) (1.85) (2.25) (2.25) (2.44) 200b 100 100 50 50 50 30 30 30 30 20 20 AK3001KD/1 AK3001KD/2 AK3000KD/3 AK3001KD/4 AK3001KD/5 AK3001KD/6 32.201 32.202 32.203 32.204 32.205 32.206 7.90 12.90 17.90 22.90 27.90 32.90 ( .31) ( .50) ( .70) ( .90) (1.10) (1.30) 200b 100 100 50 50 50 AK3001KD/7 AK3001KD/8 AK3001KD/9 AK3001KD/10 AK3001KD/11 AK3001KD/12 32.207 32.208 32.209 32.210 32.211 32.212 37.90 42.90 47.90 52.90 57.90 62.90 (1.49) (1.69) (1.89) (2.08) (2.28) (2.44) 30 30 30 30 20 20 200b 100 100 50 50 50 AK3001FD/1 AK3001FD/2 AK3001FD/3 AK3001FD/4 AK3001FD/5 AK3001FD/6 32.301 32.302 32.303 32.304 32.305 32.306 7.90 ( .31) 12.90 ( .50) 17.90 ( .70) 22.90 ( .90) 27.90 (1.10) 32.90 (1.30) 7 8 9 10 11 12 AK3001FD/7 AK3001FD/8 AK3001FD/9 AK3001FD/10 AK3001FD/11 AK3001FD/12 32.307 32.308 32.309 32.310 32.311 32.312 37.90 42.90 47.90 52.90 57.90 62.90 AP3001 32.200 ➤ ➤ 14.2mm ➤ 12.9mm AK3001KD m L ➤ ➤ 4mm ➤ ➤➤ 12.9mm ➤ ➤ ➤ 5mm 5mm ➤ ➤➤ ➤ 3.65m ➤ 0.7mm 14.2mm ➤ ➤ 4.7mm➤ ➤ ➤ ➤➤ 5mm ➤➤ 30 30 30 30 20 20 50 ➤➤ ➤ 5mm ➤ ➤ 3.65mm➤ ➤ ➤ ➤➤ ➤➤➤ ➤ ➤ Supplied as 50 pole break apart assemblies, includes one end plate. Order additional end plates separately c Up to 50 poles available, please consult Altech 5mm ➤ ➤ ➤➤ ➤ in. 0.228 0.370 0.508 0.559 14.2mm ➤ ➤ 2.7mm➤ (1.49) (1.69) (1.89) (2.08) (2.28) (2.44) 12.9mm 9.4mm L 50 12.9mm 9.4mm 32.100 Dimensions b Cat. No. With Flat Push Lever ➤ mm 5.80 9.40 12.90 14.20 Type Voltage 250V 300V 300V Length L mm (in.) Std. Pk. 1b 2 3 4 5 6 AP3000 in. 0.028 0.106 0.144 0.157 0.185 0.197 Std. Pk. Current 10A 15A 15A With Grooved Push Lever 1 End Plate mm 0.70 2.70 3.65 4.00 4.70 5.00 Wire Range 0.5-2.5mm2 28-14 AWG 28-14 AWG ➤ 4mm Terminal Block, mm Pin Spacing Two through twelve pole assemblies include one endplate Pin Spacing 5mm (.197) Stripping Length 6mm (.236) 5.8mm Terminal Block, mm Pin Spacing Two through twelve pole assemblies include one endplate 45° Wire Entry With Flat Push Lever Cat. No. No. of Poles c Ordering Information AK3001FD Pin Spacing 5mm (.197) Stripping Length 6mm (.236) 4mm a AK3000 45° Wire Entry Without Lever 5mm ➤ ➤ 5mm ➤ mm 3.65mm ➤ ➤ ➤ ➤ 0.7mm AK3001FD Altech Corp.® • 35 Royal Road • Flemington NJ 08822-6000 • Phone (908) 806-9400 • Fax (908) 806-9490 143 PREVIOUS HOME NEXT FIND IT PLUGGABLE PRINTED CIRCUIT Metric Pin Spacinga Tubular Screw Clamp Plug For plug-in applications where infrequent wire-to-board connections are made and a very cost effective pluggable terminal block is needed. Multipole assemblies are offered in modular interlocking design up to 12 poles or single mold construction up to 16 poles. While modular construction reduces and simplifies inventory, the single mold design provides maximum strength. Modular or Single Mold Design Wire Protector Standard Housing Material: Polyamide 6.6 Standard Color: Gray • • • • a Blocks with US (Inch) pin spacing begin on page 110. Ratings IEC/VDE (File No. E101811) (File No. LR68503) Ordering Information No. of Poles Plug, mm Pole Spacing AK132 AK130 Modular Plug Single Mold Plug Pole Spacing 5mm (.197) Stripping Length 6mm (.236) Screw Hole Diameter 3.5mm (.138) Pole Spacing 5mm (.197) Stripping Length 6mm (.236) Screw Hole Diameter 3.5mm (.138) Use with STL130, STL132, STL140 Headers Use with STL130, STL132, STL140 Headers Wire Range 0.5-1.5mm2 22-14 AWG 22-14 AWG Wire Range 0.5-1.5mm2 22-14 AWG 22-14 AWG Type Current 10A 10A 10A Voltage 250V 300V 300V Length L mm (in.) Cat. No. Std. Pk. Current 10A 10A 10A Type 30.302 30.303 30.304 30.305 30.306 30.307 10.00 15.00 20.00 25.00 30.00 35.00 ( .39) ( .59) ( .79) ( .99) (1.18) (1.38) 100 100 50 50 50 30 AK132/2wp AK132/3wp AK132/4wp AK132/5wp AK132/6wp AK132/7wp 30.322 30.323 30.324 30.325 30.326 30.327 10.00 15.00 20.00 25.00 30.00 35.00 ( .39) ( .59) ( .79) ( .99) (1.18) (1.38) 100 100 50 50 50 30 8 9 10 11 12 13 14 AK130/8wp AK130/9wp AK130/10wp AK130/11wp AK130/12wp 30.308 30.309 30.310 30.311 30.312 40.00 45.00 50.00 55.00 60.00 (1.58) (1.77) (1.97) (2.17) (2.36) 30 30 30 20 20 AK132/8wp AK132/9wp AK132/10wp AK132/11wp AK132/12wp AK132/13wp AK132/14wp 30.328 30.329 30.330 30.331 30.332 30.333 30.334 40.00 45.00 50.00 55.00 60.00 65.00 70.00 (1.58) (1.77) (1.97) (2.17) (2.36) (2.56) (2.76) 30 30 30 20 20 20 20 AK132/15wp AK132/16wp 30.335 30.336 75.00 (2.95) 80.00 (3.15) 20 15 L 13.5mm ➤ ➤ Dimensions in. 0.366 0.425 0.531 2.7mm 5mm 5mm ➤ STL(Z)130 STL(Z)132 144 13.5mm ➤ 10.8mm ➤ 10.8mm 0.7mm mm 9.30 10.80 13.50 Std. Pk. AK130/2wp AK130/3wp AK130/4wp AK130/5wp AK130/6wp AK130/7wp L in. 0.028 0.106 0.197 Length L mm (in.) Cat. No. 2 3 4 5 6 7 15 16 mm 0.70 2.70 5.00 Voltage 250V 300V 300V 9.3mm 2.7mm ➤ ➤ STL(Z)130 STL(Z)132 Altech Corp.® • 35 Royal Road • Flemington NJ 08822-6000 • Phone (908) 806-9400 • Fax (908) 806-9490 9.3mm ➤ PREVIOUS HOME NEXT FIND IT PLUGGABLE PRINTED CIRCUIT Metric Pin Spacinga Pin Headers Smaller pin diameter for 1.0mm (.0394") through-holes STL130, STL132 (Straight) and STL140 (Right Angle) Pin Headers are used with the highly cost effective Tubular Screw Clamp Plugs, Types AK130 and AK132. in lighter duty applications where infrequent wire to board connections must be made. Type STL132 features a reduced pin diameter of 1.0mm (.0394") on the soldering side. STL130 Straight Pin Header Open pin headers are supplied in strips up to 16 poles or in standard 24 pole lengths. The Pin Header strip features breakaway construction that eliminates cutting or sawing. Blocks with US (Inch) pin spacing begin on page 110. Pin Spacing 5mm (.197) Use with AK130 and AK132 Plugs Use with AK130, AK132 Plugs Ratings Current Voltage 10A 250V c 10A 300V c c c 10A 300V Length L Cat. No. mm (in.) Std. Pk. IEC/VDE (File No. E101811) (File No. LR68503) Type Cat. No. Voltage 250V 300V c 300V c Length L mm (in.) Std. Pk. STL130/2 STL130/3 STL130/4 STL130/5 STL130/6 STL130/7 30.352 30.353 30.354 30.355 30.356 30.357 10.00 15.00 20.00 25.00 30.00 35.00 ( .39) ( .59) ( .79) ( .98) (1.18) (1.38) 100 100 50 50 50 30 STL132/2 STL132/3 STL132/4 STL132/5 STL132/6 STL132/7 32.502 32.503 32.504 32.505 32.506 32.507 10.00 ( .39) 15.00 ( .59) 20.00 ( .79) 25.00 ( .98) 30.00 (1.18) 35.00 (1.38) 8 9 10 11 12 13 14 STL130/8 STL130/9 STL130/10 STL130/11 STL130/12 STL130/13 STL130/14 30.358 30.359 30.360 30.361 30.362 30.363 30.364 40.00 45.00 50.00 55.00 60.00 65.00 70.00 (1.58) (1.77) (1.97) (2.17) (2.36) (2.56) (2.76) 30 30 30 20 20 20 20 STL132/8 STL132/9 STL132/10 STL132/11 STL132/12 STL132/13 STL132/14 32.508 32.509 32.510 32.511 32.512 32.513 32.514 40.00 45.00 50.00 55.00 60.00 65.00 70.00 (1.58) (1.77) (1.97) (2.17) (2.36) (2.56) (2.76) 30 30 30 20 20 20 20 15 16 STL130/15 STL130/16 30.365 30.366 75.00 (2.95) 80.00 (3.15) 20 20 STL132/15 STL132/16 32.515 32.516 75.00 (2.95) 80.00 (3.15) 20 20 24 STL130/24 30.374 120.00 (4.72) 20 STL132/24 32.524 120.00 (4.72) 20 2 3 4 5 6 7 STL140/2 STL140/3 STL140/4 STL140/5 STL140/6 STL140/7 30.472 30.473 30.474 30.475 30.476 30.477 10.00 15.00 20.00 25.00 30.00 35.00 ( .39) ( .59) ( .79) ( .98) (1.18) (1.38) 100 100 50 50 50 50 8 9 10 11 12 13 14 STL140/8 STL140/9 STL140/10 STL140/11 STL140/12 STL140/13 STL140/14 30.478 30.479 30.480 30.481 30.482 30.483 30.484 40.00 45.00 50.00 55.00 60.00 65.00 70.00 (1.58) (1.77) (1.97) (2.17) (2.36) (2.56) (2.76) 30 30 30 20 20 20 20 15 16 STL140/15 STL140/16 30.485 30.486 75.00 (2.95) 80.00 (3.15) 20 20 24 STL140/24 30.494 120.00 (4.72) 20 ➤ Ø1.3mm Ø1.3mm ➤ ➤ ➤ ➤ STL(Z)140 ➤➤ 100 100 50 50 50 30 ➤ ➤ Ø1.3mm 12.5mm ➤ ➤ ➤ L ➤ ➤ ➤ ➤ ➤ ➤ STL(Z)130 c L 12.5mm ➤ 2mm ➤ 11.8mm ➤ ➤ 5.5mm ➤ ➤ 2mm ➤ ➤ ➤ ➤ ➤ 3.5mm 2.8mm ➤ ➤ 2.8mm L 2mm ➤ ➤ ➤ Dimensions mm in. mm in. 1.00 0.039 5.50 0.217 1.30 0.051 6.00 0.236 2.00 0.079 11.80 0.465 2.80 0.110 12.50 0.492 3.50 0.138 15.00 0.591 5.00 0.197 b To insure proper pin positioning, install header into AK130 or AK132 Plug before soldering into board ➤ Right Angle Pin Header, mm Pin Spacing Type Current 10A 10A c 10A c 2 3 4 5 6 7 ➤ Straight Pin Header, mm Pin Spacing No. of Poles 3.5mm Ordering Information Straight Pin Header Pin Spacing 5mm (.197) 6mm ➤ ➤ a STL132 STL140 Right Angle Pin Header b • Straight and Right Angle • Strip Material: Polyamide 6.6 • Standard Color: Gray ➤ ➤ Ø1mm 5mm Pending, STL140, STL132 Altech Corp.® • 35 Royal Road • Flemington NJ 08822-6000 • Phone (908) 806-9400 • Fax (908) 806-9490 145 PREVIOUS HOME NEXT FIND IT STANDARD PLUGGABLE PRINTED CIRCUIT Metric Pin Spacinga Screw-Cage Clamp Plug For standard industrial plug-in applications where multiple wire-to-board connections must be made quickly and simultaneously. Reduce wiring mistakes, downtime and facilitate troubleshooting. Simply unplug defective board and plug in a new one. Horizontal and Vertical Headers are available in open and closed end designs. Refer to pages 148 to 149. • Multipole, Single Mold Construction • Industry Standard Compatible • Locking Tabs Prevent Unplugging • Optional Keying Prevents Mispluggingb • Housing Material: Polyamide 6.6 • Standard Color: Green a Blocks with US (Inch) pin spacing begin on page 110. AK950 Wire Entry in Same Direction as Plug-In Pole Spacing 5mm (.197) Stripping Length 7mm (.276) Screw Hole Diameter 3.5mm (.138) Use with STL950, STL955 Headers Wire Range 0.5-2.5mm 2 22-12 AWG 28-14 AWG Ratings IEC/VDE (File No. E101811) (File No. LR68503) No. of Poles Ordering Information Plug, mm Pole Spacing Type Current 12A 15A 15A Voltage 250V 300V 300V Length L mm (in.) Cat. No. Std. Pk. 2 3 4 5 6 7 AK950/2 AK950/3 AK950/4 AK950/5 AK950/6 AK950/7 37.702 37.703 37.704 37.705 37.706 37.707 10.00 15.00 20.00 25.00 30.00 35.00 ( .39) ( .59) ( .79) ( .98) (1.18) (1.38) 100 100 50 50 50 30 8 9 10 11 12 13 AK950/8 AK950/9 AK950/10 AK950/11 AK950/12 AK950/13 37.708 37.709 37.710 37.711 37.712 37.713 40.00 45.00 50.00 55.00 60.00 65.00 (1.58) (1.77) (1.97) (2.17) (2.36) (2.56) 30 30 30 20 20 20 14 15 16 17 18 19 AK950/14 AK950/15 AK950/16 AK950/17 AK950/18 AK950/19 37.714 37.715 37.716 37.717 37.718 37.719 70.00 75.00 80.00 85.00 90.00 95.00 (2.76) (2.95) (3.15) (3.35) (3.54) (3.74) 20 20 15 15 15 15 20 21 22 23 24 AK950/20 AK950/21 AK950/22 AK950/23 AK950/24 37.720 37.721 37.722 37.723 37.724 100.00 105.00 110.00 115.00 120.00 (3.94) (4.13) (4.33) (4.53) (4.72) 15 10 10 10 10 L 15mm 3.1mm 17.3mm Dimensions mm 2.70 3.10 5.00 b in. 0.106 0.122 0.197 mm 9.00 15.00 17.30 in. 0.354 0.591 0.681 2.7mm 5mm 9mm For Keying, refer to Accessories on page 150. 146 Altech Corp.® • 35 Royal Road • Flemington NJ 08822-6000 • Phone (908) 806-9400 • Fax (908) 806-9490 PREVIOUS HOME NEXT FIND IT STANDARD PLUGGABLE PRINTED CIRCUIT Metric Pin Spacinga Screw-Cage Clamp Plug For standard industrial plug-in applications where multiple wire-to-board connections must be made quickly and simultaneously. Two wire entry options increase plug accessibility. The shape of the plug facilitates plug-in and removal. Horizontal and Vertical Headers are available in open and closed end designs. Refer to pages 148 to 149. • Multipole, Single Mold Construction • Industry Standard Compatible • Locking Tab Prevents Unplugging • Optional Keying Prevents Mispluggingb • Housing Material: Polyamide 6.6 • Standard Color: Green c a Blocks with US(inch) spacing begin on page 110. Ratings IEC/VDE d d No. of Poles Ordering Information Plug, mm Pole Spacing BU06e BU08f Wire Entry Perpendicular to Plug-In Wire Entry Perpendicular to Plug-In (On Locking Tab Side) (On Scalloped Side) Pole Spacing 5mm (.197) Stripping Length 8mm (.315) Screw Hole Diameter 3.5mm (.138) Pole Spacing 5mm (.197) Stripping Length 8mm (.315) Screw Hole Diameter 3.5mm (.138) Use with STL950, STL955 Headers Use with STL950, STL955 Headers Wire Range 0.5-2.5mm2 22-10 AWG 22-10 AWG Wire Range 0.5-2.5mm 2 22-10 AWG 22-10 AWG Current 12A 15A 15A Type Cat. No. Voltage 250V 300V 300V Length L mm (in.) Std. Pk. Type Current 12A 15A 15A Voltage 250V 300V 300V Cat. No. Length L mm (in.) 2 3 4 5 6 7 BU06/2 BU06/3 BU06/4 BU06/5 BU06/6 BU06/7 36.202 36.203 36.204 36.205 36.206 36.207 10.00 15.00 20.00 25.00 30.00 35.00 ( .39) ( .59) ( .79) ( .98) (1.18) (1.38) 100 100 50 50 50 30 BU08/2 BU08/3 BU08/4 BU08/5 BU08/6 BU08/7 36.252 36.253 36.254 36.255 36.256 36.257 10.00 ( .39) 15.00 ( .59) 20.00 ( .79) 25.00 ( .98) 30.00 (1.18) 35.00 (1.38) 8 9 10 11 12 13 BU06/8 BU06/9 BU06/10 BU06/11 BU06/12 BU06/13 36.208 36.209 36.210 36.211 36.212 36.213 40.00 45.00 50.00 55.00 60.00 65.00 (1.58) (1.77) (1.97) (2.17) (2.36) (2.56) 30 30 30 20 20 20 BU08/8 BU08/9 BU08/10 BU08/11 BU08/12 BU08/13 36.258 36.259 36.260 36.261 36.262 36.263 40.00 45.00 50.00 55.00 60.00 65.00 14 15 16 17 18 19 20 BU06/14 BU06/15 BU06/16 BU06/17 BU06/18 BU06/19 BU06/20 36.214 36.215 36.216 36.217 36.218 36.219 36.220 70.00 (2.76) 75.00 (2.95) 80.00 (3.15) 85.00 (3.35) 90.00 (3.54) 95.00 (3.74) 100.00 (3.94) 20 20 15 15 15 15 15 BU08/14 BU08/15 BU08/16 BU08/17 BU08/18 BU08/19 BU08/20 36.264 36.265 36.266 36.267 36.268 36.269 36.270 L ➤ 12.5mm ➤ ➤ ➤ L ➤ 100 100 50 50 50 30 (1.58) (1.77) (1.97) (2.17) (2.36) (2.56) 30 30 30 20 20 20 70.00 (2.76) 75.00 (2.95) 80.00 (3.15) 85.00 (3.35) 90.00 (3.54) 95.00 (3.74) 100.00 (3.94) 20 20 15 15 15 15 15 12.5mm ➤ ➤ ➤ ➤ ➤ Std. Pk. Dimensions in. 0.492 1.043 26.5mm mm 12.50 26.50 e Available late 1995 8.3mm ➤ ➤ 5mm ➤ For Keying, please refer to Accessories, page 150. Gray available, please consult Altech Pending ➤ ➤ 5mm f ➤ ➤ d ➤ c ➤ ➤ b 8.3mm in. 0.197 0.327 26.5mm mm 5.00 8.30 Available late 1995 Altech Corp.® • 35 Royal Road • Flemington NJ 08822-6000 • Phone (908) 806-9400 • Fax (908) 806-9490 147 PREVIOUS HOME NEXT FIND IT PLUGGABLE PRINTED CIRCUIT Metric Pin Spacinga Headers Horizontal or vertical headers offer different wire entry options and enhance plug accessibility. Closed end headers prevent misplugging. • Multipole, Single Mold Construction • Industry Standard Compatible • Horizontal and Vertical • Open and Closed Ends • Housing Material: Polyamide 6.6 • Standard Color: Green Blocks with US (Inch) pin spacing begin on page 110. Pin Spacing 5mm (.197) Use with AK950, BU06, BU08 Plugs Use with AK950, BU06, BU08 Plugs Current 12A 15A 15A Ratings IEC/VDE (File No. E101811) (File No. LR68503) No. of Poles Current 12A 15A 15A Voltage 250V 300V 300V Cat. No. Length L mm (in.) Std. Pk. 100 100 50 50 50 30 Voltage 250V 300V 300V Cat. No. Length L mm (in.) Std. Pk. STL950/2-o STL950/3-o STL950/4-o STL950/5-o STL950/6-o STL950/7-o 37.352 37.353 37.354 37.355 37.356 37.357 9.80 ( .39) 14.80 ( .58) 19.80 ( .78) 24.80 ( .98) 29.80 (1.17) 34.80 (1.37) 100 100 50 50 50 30 Type 2 3 4 5 6 7 STL950/2-w STL950/3-w STL950/4-w STL950/5-w STL950/6-w STL950/7-w 37.552 37.553 37.554 37.555 37.556 37.557 11.20 ( .44) 16.20 ( .64) 21.20 ( .84) 26.20 (1.03) 31.20 (1.23) 36.20 (1.43) 8 9 10 11 12 13 STL950/8-w STL950/9-w STL950/10-w STL950/11-w STL950/12-w STL950/13-w 37.558 37.559 37.560 37.561 37.562 37.563 41.20 46.20 51.20 56.20 61.20 66.20 (1.62) (1.82) (2.02) (2.21) (2.41) (2.61) 30 30 30 20 20 20 STL950/8-o STL950/9-o STL950/10-o STL950/11-o STL950/12-o STL950/13-o 37.358 37.359 37.360 37.361 37.362 37.363 39.80 44.80 49.80 54.80 59.80 64.80 (1.57) (1.76) (1.96) (2.16) (2.35) (2.55) 30 30 30 20 20 20 14 15 16 17 18 19 STL950/14-w STL950/15-w STL950/16-w STL950/17-w STL950/18-w STL950/19-w 37.564 37.565 37.566 37.567 37.568 37.569 71.20 76.20 81.20 86.20 91.20 96.20 (2.80) (3.00) (3.20) (3.39) (3.59) (3.79) 20 20 15 15 15 15 STL950/14-o STL950/15-o STL950/16-o STL950/17-o STL950/18-o STL950/19-o 37.364 37.365 37.366 37.367 37.368 37.369 69.80 74.80 79.80 84.80 89.80 94.80 (2.75) (2.95) (3.14) (3.34) (3.54) (3.73) 20 20 15 15 15 15 20 21 22 23 24 STL950/20-w STL950/21-w STL950/22-w STL950/23-w STL950/24-w 37.570 37.571 37.572 37.573 37.574 101.20 106.20 111.20 116.20 121.20 (3.98) (4.18) (4.38) (4.57) (4.77) 15 10 10 10 10 STL950/20-o STL950/21-o STL950/22-o STL950/23-o STL950/24-o 37.370 37.371 37.372 37.373 37.374 99.80 104.80 109.80 114.80 119.80 (3.93) (4.13) (4.32) (4.52) (4.72) 15 10 10 10 10 ➤ 12mm 7.9mm ➤ ➤ ➤ ➤ 3.5mm L ➤ ➤ ➤ ➤ 3.5mm ➤ 12mm 8.4mm ➤ ➤ 7.9mm ➤ ➤ L ➤ ➤ Header, mm Pin Spacing Type ➤ Ordering Information Horizontal - Open Ends Pin Spacing 5mm (.197) 8.4mm a STL950-O STL950-W Horizontal - Closed Ends 148 mm 5.00 7.90 8.40 12.00 in. 0.197 0.311 0.331 0.472 ➤ in. 0.390 0.079 0.138 0.150 0.154 ➤ Dimensions mm 1.00 2.00 3.50 3.80 3.90 5mm ➤ ➤ ➤ ➤ 1mm ➤ ➤ 2mm 5mm ➤ ➤ ➤ ➤ 1mm Altech Corp.® • 35 Royal Road • Flemington NJ 08822-6000 • Phone (908) 806-9400 • Fax (908) 806-9490 ➤ ➤ 2mm ➤ PREVIOUS HOME NEXT STL955-W STL955-O Vertical - Closed Ends Vertical - Open Ends Pin Spacing 5mm (.197) Pin Spacing 5mm (.197) Use with AK950, BU06, BU08 Plugs Use with AK950, BU06, BU08 Plugs Current 12A 15A 15A Cat. No. STL955/2-w STL955/3-w STL955/4-w STL955/5-w STL955/6-w STL955/7-w 37.602 37.603 37.604 37.605 37.606 37.607 11.20 ( .44) 16.20 ( .64) 21.20 ( .84) 26.20 (1.03) 31.20 (1.23) 36.20 (1.43) STL955/8-w STL955/9-w STL955/10-w STL955/11-w STL955/12-w STL955/13-w 37.608 37.609 37.610 37.611 37.612 37.613 41.20 46.20 51.20 56.20 61.20 66.20 STL955/14-w STL955/15-w STL955/16-w STL955/17-w STL955/18-w STL955/19-w 37.614 37.615 37.616 37.617 37.618 37.619 STL955/20-w STL955/21-w STL955/22-w STL955/23-w STL955/24-w 37.620 37.621 37.622 37.623 37.624 L Cat. No. STL955/2-o STL955/3-o STL955/4-o STL955/5-o STL955/6-o STL955/7-o 37.402 37.403 37.404 37.405 37.406 37.407 9.80 ( .39) 14.80 ( .58) 19.80 ( .78) 24.80 ( .98) 29.80 (1.17) 34.80 (1.37) (1.62) (1.82) (2.02) (2.21) (2.41) (2.61) 30 30 30 20 20 20 STL955/8-o STL955/9-o STL955/10-o STL955/11-o STL955/12-o STL955/13-o 37.408 37.409 37.410 37.411 37.412 37.413 39.80 44.80 49.80 54.80 59.80 64.80 (1.57) (1.76) (1.96) (2.16) (2.35) (2.55) 30 30 30 20 20 20 71.20 76.20 81.20 86.20 91.20 96.20 (2.80) (3.00) (3.20) (3.39) (3.59) (3.79) 20 20 15 15 15 15 STL955/14-o STL955/15-o STL955/16-o STL955/17-o STL955/18-o STL955/19-o 37.414 37.415 37.416 37.417 37.418 37.419 69.80 74.80 79.80 84.80 89.80 94.80 (2.75) (2.95) (3.14) (3.34) (3.54) (3.73) 20 20 15 15 15 15 101.20 106.20 111.20 116.20 121.20 (3.98) (4.18) (4.38) (4.57) (4.77) 15 10 10 10 10 STL955/20-o STL955/21-o STL955/22-o STL955/23-o STL955/24-o 37.420 37.421 37.422 37.423 37.424 99.80 104.80 109.80 114.80 119.80 (3.93) (4.13) (4.32) (4.52) (4.72) 15 10 10 10 10 8.4mm ➤ ➤ ➤ Type ➤ L ➤ ➤ ➤ 12mm 12mm 1mm ➤ ➤ ➤ 7.9mm ➤ ➤ ➤ 3.8mm 5mm ➤ 3.9mm ➤ 100 100 50 50 50 30 8.4mm ➤ ➤ ➤ ➤ ➤ ➤ 3.9mm ➤ 5mm Voltage 250V 300V 300V Length L mm (in.) Std. Pk. 100 100 50 50 50 30 ➤ ➤ Current 12A 15A 15A ➤ Type Voltage 250V 300V 300V Length L mm (in.) Std. Pk. FIND IT ➤ ➤ ➤ 3.8mm ➤ ➤ 7.9mm ➤ ➤ 1mm Altech Corp.® • 35 Royal Road • Flemington NJ 08822-6000 • Phone (908) 806-9400 • Fax (908) 806-9490 149 PREVIOUS HOME NEXT FIND IT PRINTED CIRCUIT ACCESSORIES Convenient options that facilitate wire termination and increase wiring efficiency. KEYING INSERTS Use KI Keying Inserts to prevent misplugging of screw-cage clamp plugs in adjoining headers without loss of position. Incorrect plug installation can cause serious electrical damage to sensitive electronic circuits. KI KEYING INSERTS Type KI-AK Keying Insert is a precision molded profile that installs into parallel slots provided on the plug housing. Type KI-STL is a similar insert that installs into slots molded into the header housing. Cat. No. KI-AK 37.903 50/300 ➤ ➤ Character Imprint Type Cat. No. AK950 AKZ950 AKZ1200 BU06 BU08 BU02 BU04 1 - 12 13 - 24 12 - 1 Blank KSO112 KSO1324 KSO121 KSO00 30.096 30.097 30.098 30.099 3.1mm ➤ ➤ Keying Inserts install quickly and easily and are held securely in place by a friction fit. You devise the pattern and select the quantity of inserts required for your application. Type Use With Types 8mm When two of these inserts are located in corresponding slots on both the plug and header, the pair cannot be joined because the inserts interfere with one another. If the inserts are installed into separate slots on the plug and header, the pair will engage as usual. Std. Pk. Wheels/ Inserts KSO MARKING LABELS Packaged for convenient handling KI-AK and KI-STL Inserts are supplied on wheels of 6 inserts. Factory keyed plugs and headers are available, please consult Altech with your keying requirements. Color: Red. Molding Material: Polyamide 6.6. MARKING LABELS KI-STL 37.904 50/300 ➤ ➤ STL950 STL955 STLZ950 STLZ955 STLZ990 3.1mm ➤ 10mm ➤ Use KSO preprinted pressure sensitive labels for printed circuit board applications where changing requirements make it impractical to order and inventory hot stamp imprinted terminal blocks. Preprinted labels are quick and easy to apply to all Fixed and Pluggable Printed Circuit Terminal Blocks. Simply cut to required length and peel strip from card. Apply the strip to the terminal block by exerting finger pressure. Marking cards contain 25 strips and are available in several standard number combinations. Select from consecutive ascending numbers 1 - 12, 13 - 24; consecutive descending numbers 12 - 1; and blank for hand marking. Custom Marking Labels with special character imprints are also available upon request. Imprint is black on white labels. Material: White PVC. 150 Altech Corp.® • 35 Royal Road • Flemington NJ 08822-6000 • Phone (908) 806-9400 • Fax (908) 806-9490 Std. Pk. Cards/ Strips 5/125 5/125 5/125 5/125 PREVIOUS HOME NEXT FIND IT PRINTED CIRCUIT ACCESSORIES HOT STAMP IMPRINTING iA (1, 2, 3, 4, ...) Consecutive, Ascending, Left to Right 1 2 3 4 iB (... 4, 3, 2, 1) Consecutive, Descending Left to Right 4 3 2 1 (1, 2, 3, 4, ...) Upside Down, Consecutive Descending, Left to Right (... 4, 3, 2, 1) Updside Down, Consecutive Ascending, Left to Right 3 4 Hot Stamp Imprints up to 12 poles are standard for US (inch) and metric (mm) spacings. For pricing purposes, they are considered to be one assembly. 1 Standard Imprints can be specified and ordered by adding the required suffix after the Cat. No. and Type designation. Simply select the appropriate Ordering Suffix for the required Imprint Sequence. iD 2 Imprint Ordering iC 4 Standard Imprint • Character Style - DAVID • Character Size: 8 Pt., 2.4mm (3/32 in.) high • Standard Imprint Color: Black on Green Housing; White on Gray Housing • Optional Imprint Color: White on Green Housing Illustration 3 Standard or custom imprint sequences are available for 2 to 24 pole positions. Imprints are centered above the wire entry. Imprint Description 2 Hot Stamp Imprinting provides a permanent marking which will not rub, wear or wash off even when solvents are present. STANDARD IMPRINT Ordering Imprint Suffix Sequence 1 For high volume requirements or when it is impractical to apply PSA Marking Labels, use Hot Stamp Imprinting to provide positive circuit identification for Fixed and Pluggable Printed Circuit Terminal Blocks. Properly identified circuits increase wiring efficiency, save installation time and make wire hook-up, system modifications and trouble shooting quick and easy. Standard Imprint Example: 13 pole, Type AKZ350 Printed Circuit Terminal Block to be imprinted upside down with descending, consecutive numbers reading left to right should be ordered as below: Type AKZ350/13iC Cat. No. 32.063iC Imprints with 13-24 poles are considered to be (2) assemblies. For pricing purposes, they are considered to be two assemblies. Consult Altech for Hot Stamp Imprinting pricing, minimum order quantities and applicable lot charges. Custom Imprints Special number sequences and character combinations including letters, symbols and numbers are available. To order special sequences or combinations send us your imprint schedule. For die charges and minimum order quantities for your custom imprints, please consult Altech. Altech Corp.® • 35 Royal Road • Flemington NJ 08822-6000 • Phone (908) 806-9400 • Fax (908) 806-9490 151
