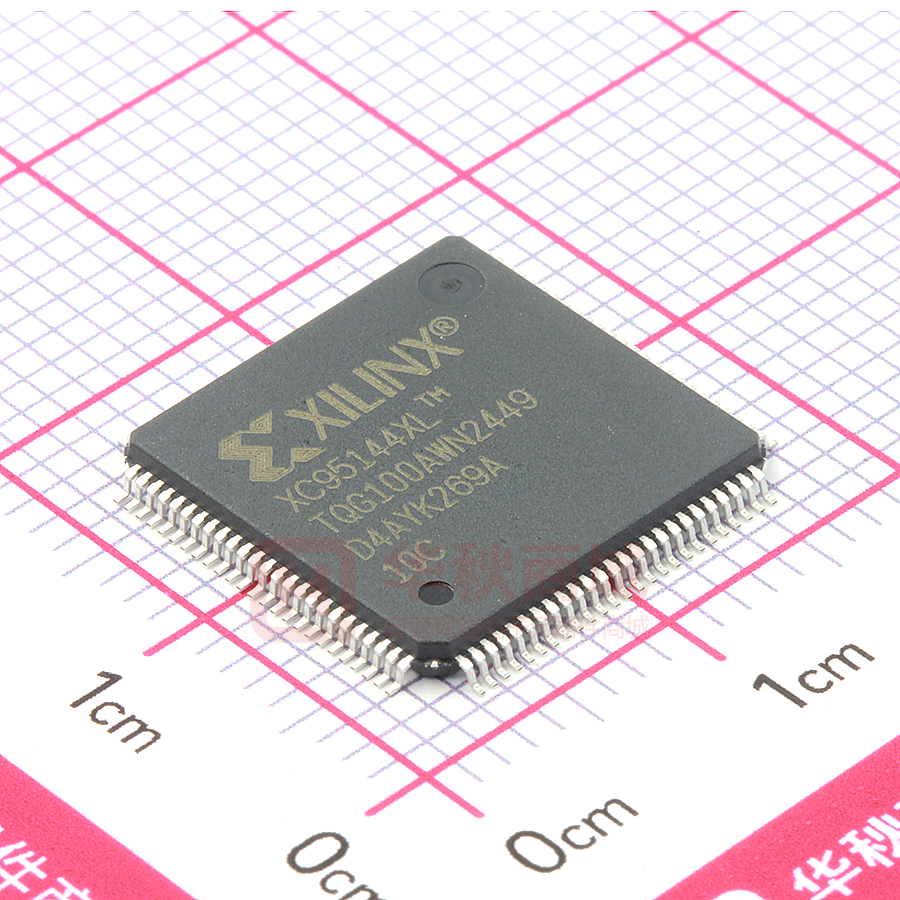

XC95144XL-10TQG100C

0 XC95144XL High Performance CPLD R DS056 (v2.0) April 3, 2007 0 0 Features • • • • • • • • • • • 5 ns pin-to-pin logic delays System frequency up to 178 MHz 144 macrocells with 3,200 usable gates Available in small footprint packages - 100-pin TQFP (81 user I/O pins) - 144-pin TQFP (117 user I/O pins) - 144-CSP (117 user I/O pins) - Pb-free available for all packages Optimized for high-performance 3.3V systems - Low power operation - 5V tolerant I/O pins accept 5V, 3.3V, and 2.5V signals - 3.3V or 2.5V output capability - Advanced 0.35 micron feature size CMOS Fast FLASH™ technology Advanced system features - In-system programmable - Superior pin-locking and routability with Fast CONNECT™ II switch matrix - Extra wide 54-input Function Blocks - Up to 90 product-terms per macrocell with individual product-term allocation - Local clock inversion with three global and one product-term clocks - Individual output enable per output pin with local inversion - Input hysteresis on all user and boundary-scan pin inputs - Bus-hold circuitry on all user pin inputs - Full IEEE Standard 1149.1 boundary-scan (JTAG) Fast concurrent programming Slew rate control on individual outputs Enhanced data security features Excellent quality and reliability - Endurance exceeding 10,000 program/erase cycles - 20 year data retention - ESD protection exceeding 2,000V Pin-compatible with 5V-core XC95144 device in the 100-pin TQFP package Product Specification 54V18 Function Blocks, providing 3,200 usable gates with propagation delays of 5 ns. See Figure 2 for overview. Power Estimation Power dissipation in CPLDs can vary substantially depending on the system frequency, design application and output loading. To help reduce power dissipation, each macrocell in a XC9500XL device may be configured for low-power mode (from the default high-performance mode). In addition, unused product-terms and macrocells are automatically deactivated by the software to further conserve power. For a general estimate of ICC, the following equation may be used: ICC(mA) = MCHS(0.175*PTHS + 0.345) + MCLP(0.052*PTLP + 0.272) + 0.04 * MCTOG(MCHS +MCLP)* f where: MCHS = # macrocells in high-speed configuration PTHS = average number of high-speed product terms per macrocell MCLP = # macrocells in low power configuration PTLP = average number of low power product terms per macrocell f = maximum clock frequency MCTOG = average % of flip-flops toggling per clock (~12%) This calculation was derived from laboratory measurements of an XC9500XL part filled with 16-bit counters and allowing a single output (the LSB) to be enabled. The actual ICC value varies with the design application and should be verified during normal system operation. Figure 1 shows the above estimation in a graphical form. For a more detailed discussion of power consumption in this device, see Xilinx WARNING: Programming temperature range of TA = 0° C to +70° C Description The XC95144XL is a 3.3V CPLD targeted for high-performance, low-voltage applications in leading-edge communications and computing systems. It is comprised of eight © 1998-2007 Xilinx, Inc. All rights reserved. All Xilinx trademarks, registered trademarks, patents, and disclaimers are as listed at http://www.xilinx.com/legal.htm. All other trademarks and registered trademarks are the property of their respective owners. All specifications are subject to change without notice. DS056 (v2.0) April 3, 2007 Product Specification www.xilinx.com 1 XC95144XL High Performance CPLD R application note XAPP114, “Understanding XC9500XL CPLD Power.” 250 178 MHz Typical ICC (mA) 200 h Hig 150 P er form e anc 104 MHz 100 Low P ow er 50 0 50 100 150 200 Clock Frequency (MHz) Figure 1: Typical ICC vs. Frequency for XC95144XL 2 www.xilinx.com DS056 (v2.0) April 3, 2007 Product Specification XC95144XL High Performance CPLD R 3 1 JTAG Port JTAG Controller In-System Programming Controller 54 Function Block 1 18 I/O Macrocells 1 to 18 I/O Fast CONNECT II Switch Matrix I/O I/O I/O Blocks I/O I/O I/O 54 Function Block 2 18 Macrocells 1 to 18 54 Function Block 3 18 Macrocells 1 to 18 I/O 3 I/O/GCK 54 1 Function Block 4 18 I/O/GSR 4 Macrocells 1 to 18 I/O/GTS 54 Function Block 8 18 Macrocells 1 to 18 DS056_02_101300 Figure 2: XC95144XL Architecture Function Block outputs (indicated by the bold line) drive the I/O Blocks directly. DS056 (v2.0) April 3, 2007 Product Specification www.xilinx.com 3 XC95144XL High Performance CPLD R Absolute Maximum Ratings(2) Symbol Description Value Units VCC Supply voltage relative to GND –0.5 to 4.0 V VIN Input voltage relative to GND(1) –0.5 to 5.5 V –0.5 to 5.5 V –65 to +150 oC +150 oC output(1) VTS Voltage applied to 3-state TSTG Storage temperature (ambient)(3) TJ Junction temperature Notes: 1. Maximum DC undershoot below GND must be limited to either 0.5V or 10 mA, whichever is easier to achieve. During transitions, the device pins may undershoot to –2.0 V or overshoot to +7.0V, provided this over- or undershoot lasts less than 10 ns and with the forcing current being limited to 200 mA. External I/O voltage may not exceed VCCINT by 4.0V. 2. Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those listed under Operating Conditions is not implied. Exposure to Absolute Maximum Ratings conditions for extended periods of time may affect device reliability. 3. For soldering guidelines and thermal considerations, see the Device Packaging information on the Xilinx website. For Pb-free packages, see XAPP427. Recommended Operation Conditions Symbol VCCINT VCCIO Parameter Supply voltage for internal logic and input buffers Min Commercial TA = 0 oC to 70oC Max Units 3.0 3.6 V 3.0 3.6 V Supply voltage for output drivers for 3.3V operation 3.0 3.6 V Supply voltage for output drivers for 2.5V operation 2.3 2.7 V Industrial TA = –40oC to +85oC VIL Low-level input voltage 0 0.80 V VIH High-level input voltage 2.0 5.5 V VO Output voltage 0 VCCIO V Quality and Reliability Characteristics Symbol Parameter Min Max Units 20 - Years Program/Erase Cycles (Endurance) 10,000 - Cycles Electrostatic Discharge (ESD) 2,000 - Volts TDR Data Retention NPE VESD DC Characteristic Over Recommended Operating Conditions Symbol VOH VOL 4 Parameter Test Conditions Min Max Units Output high voltage for 3.3V outputs IOH = –4.0 mA 2.4 - V Output high voltage for 2.5V outputs IOH = –500 μA 90% VCCIO - V Output low voltage for 3.3V outputs IOL = 8.0 mA - 0.4 V Output low voltage for 2.5V outputs IOL = 500 μA - 0.4 V IIL Input leakage current VCC = Max; VIN = GND or VCC - ±10 μA IIH I/O high-Z leakage current VCC = Max; VIN = GND or VCC - ±10 μA www.xilinx.com DS056 (v2.0) April 3, 2007 Product Specification XC95144XL High Performance CPLD R Symbol Parameter IIH Test Conditions I/O high-Z leakage current Min Max Units VCC = Max; VCCIO = Max; VIN = GND or 3.6V - ±10 μA VCC Min < VIN < 5.5V - ±50 μA - 10 pF CIN I/O capacitance VIN = GND; f = 1.0 MHz ICC Operating supply current (low power mode, active) VIN = GND, No load; f = 1.0 MHz 45 (Typical) mA AC Characteristics Symbol Parameter XC95144XL-5 XC95144XL-7 XC95144XL-10 Min Max Min Max Min Max Units - 5.0 - 7.5 - 10.0 ns 3.7 - 4.8 - 6.5 - ns TPD I/O to output valid TSU I/O setup time before GCK TH I/O hold time after GCK 0 - 0 - 0 - ns GCK to output valid - 3.5 - 4.5 - 5.8 ns fSYSTEM Multiple FB internal operating frequency - 178.6 - 125.0 - 100.0 MHz TPSU I/O setup time before p-term clock input 1.7 - 1.6 - 2.1 - ns TPH I/O hold time after p-term clock input 2.0 - 3.2 - 4.4 - ns P-term clock output valid - 5.5 - 7.7 - 10.2 ns TOE GTS to output valid - 4.0 - 5.0 - 7.0 ns TOD GTS to output disable - 4.0 - 5.0 - 7.0 ns TPOE Product term OE to output enabled - 7.0 - 9.5 - 11.0 ns TPOD Product term OE to output disabled - 7.0 - 9.5 - 11.0 ns TAO GSR to output valid - 10.0 - 12.0 - 14.5 ns TPAO P-term S/R to output valid - 10.5 - 12.6 - 15.3 ns TWLH GCK pulse width (High or Low) 2.8 - 4.0 - 4.5 - ns TAPRPW Asynchronous preset/reset pulse width (High or Low) 5.0 - 6.5 - 7.0 - ns TPLH P-term clock pulse width (High or Low) 5.0 - 6.5 - 7.0 - ns TCO TPCO VTEST R1 Output Type VCCIO VTEST R1 R2 CL 3.3V 3.3V 320 Ω 360 Ω 35 pF 2.5V 2.5V 250 Ω 660 Ω 35 pF Device Output R2 CL DS058_03_081500 Figure 3: AC Load Circuit DS056 (v2.0) April 3, 2007 Product Specification www.xilinx.com 5 XC95144XL High Performance CPLD R Internal Timing Parameters Symbol Parameter XC95144XL-5 XC95144XL-7 XC95144XL-10 Min Max Min Max Min Max Units Buffer Delays TIN Input buffer delay - 1.5 - 2.3 - 3.5 ns TGCK GCK buffer delay - 1.1 - 1.5 - 1.8 ns TGSR GSR buffer delay - 2.0 - 3.1 - 4.5 ns TGTS GTS buffer delay - 4.0 - 5.0 - 7.0 ns TOUT Output buffer delay - 2.0 - 2.5 - 3.0 ns TEN Output buffer enable/disable - 0 - 0 - 0 ns delay Product Term Control Delays TPTCK Product term clock delay - 1.6 - 2.4 - 2.7 ns TPTSR Product term set/reset delay - 1.0 - 1.4 - 1.8 ns TPTTS Product term 3-state delay - 5.5 - 7.2 - 7.5 ns - 0.5 - 1.3 - 1.7 ns Internal Register and Combinatorial Delays TPDI Combinatorial logic propagation delay TSUI Register setup time 2.3 - 2.6 - 3.0 - ns THI Register hold time 1.4 - 2.2 - 3.5 - ns TECSU Register clock enable setup time 2.3 - 2.6 - 3.0 - ns TECHO Register clock enable hold time 1.4 - 2.2 - 3.5 - ns TCOI Register clock to output valid time - 0.4 - 0.5 - 1.0 ns TAOI Register async. S/R to output delay - 6.0 - 6.4 - 7.0 ns TRAI Register async. S/R recover before clock TLOGI Internal logic delay - 1.0 - 1.4 - 1.8 ns Internal low power logic delay - 5.0 - 6.4 - 7.3 ns - 1.9 - 3.5 - 4.2 ns Incremental product term allocator delay - 0.7 - 0.8 - 1.0 ns Slew-rate limited delay - 3.0 - 4.0 - 4.5 ns TLOGILP 5.0 7.5 10.0 ns Feedback Delays TF Fast CONNECT II feedback delay Time Adders TPTA TSLEW 6 www.xilinx.com DS056 (v2.0) April 3, 2007 Product Specification XC95144XL High Performance CPLD R XC95144XL I/O Pins(2) Function Block Macrocell 1 1 TQ100 TQ144 CS144 - 23 H3 BScan Order Function Block Macrocell 429 3 1 - 39 M3 321 23(1) 32(1) L1(1) 318 TQ100 TQ144 CS144 BScan Order 1 2 11 16 F1 426 3 2(1) 1 3 12 17 G2 423 3 3 - 41 K4 315 1 4 - 25 J1 420 3 4 - 44 N4 312 1 5 13 19 G3 417 3 5 24 33 L2 309 1 6 14 20 G4 414 3 6 25 34 L3 306 1 7 - - - 411 3 7 - 46 L5 303 27(1) 38(1) N2(1) 300 1 8 15 21 H1 408 3 8(1) 1 9 16 22 H2 405 3 9 28 40 N3 297 1 10 - 31 K3 402 3 10 - 48 N5 294 1 11 17 24 H4 399 3 11 29 43 M4 291 1 12 18 26 J2 396 3 12 30 45 K5 288 1 13 - - - 393 3 13 - - - 285 1 14 19 27 J3 390 3 14 32 49 K6 282 1 15 20 28 J4 387 3 15 33 50 L6 279 1 16 - 35 M1 384 3 16 - - - 276 1 17(1) 22(1) 30(1) K2(1) 381 3 17 34 51 M6 273 1 18 - - - 378 3 18 - - - 270 2 1 - 142 C3 375 4 1 - 118 C9 267 2 2(1) 99(1) 143(1) A2(1) 372 4 2 87 126 A7 264 2 3 - - - 369 4 3 - 133 A5 261 2 4 - 4 C1 366 4 4 - - - 258 2 5(1) 1(1) 2(1) B1(1) 363 4 5 89 128 D7 255 2 6(1) 2(1) 3(1) C2(1) 360 4 6 90 129 A6 252 2 7 - - - 357 4 7 - - - 249 2 8(1) 3(1) 5(1) D4(1) 354 4 8 91 130 B6 246 2 9(1) 4(1) 6(1) D3(1) 351 4 9 92 131 C6 243 2 10 - 7 D2 348 4 10 - 135 C5 240 2 11 6 9 E4 345 4 11 93 132 D6 237 2 12 7 10 E3 342 4 12 94 134 B5 234 2 13 - 12 E1 339 4 13 - 137 A4 231 2 14 8 11 E2 336 4 14 95 136 D5 228 2 15 9 13 F4 333 4 15 96 138 B4 225 2 16 - 14 F3 330 4 16 - 139 C4 222 2 17 10 15 F2 327 4 17 97 140 A3 219 2 18 - - - 324 4 18 - - - 216 Notes: 1. Global control pin. 2. The pin-outs are the same for Pb-free versions of packages. DS056 (v2.0) April 3, 2007 Product Specification www.xilinx.com 7 XC95144XL High Performance CPLD R XC95144XL (Continued) Function Block Macrocell BScan Order Function Block Macrocell 5 1 - - - 213 7 1 - - - 105 5 2 35 52 N6 210 7 2 50 71 N12 102 5 3 - 59 L8 207 7 3 - 75 L12 99 5 4 - - - 204 7 4 - - - 96 5 5 36 53 M7 201 7 5 52 74 M13 93 5 6 37 54 N7 198 7 6 53 76 L13 90 5 7 - 66 M10 195 7 7 - 77 K10 87 5 8 39 56 K7 192 7 8 54 78 K11 84 5 9 40 57 N8 189 7 9 55 80 K13 81 5 10 –- 68 N11 186 7 10 - 79 K12 78 5 11 41 58 M8 183 7 11 56 82 J11 75 5 12 42 60 K8 180 7 12 58 85 H10 72 5 13 - 70 L11 177 7 13 - 81 J10 69 5 14 43 61 N9 174 7 14 59 86 H11 66 5 15 46 64 K9 171 7 15 60 87 H12 63 5 16 - - - 168 7 16 - 83 J12 60 5 17 49 69 M11 165 7 17 61 88 H13 57 5 18 - - - 162 7 18 - - - 54 6 1 - - - 159 8 1 - - - 51 6 2 74 106 C11 156 8 2 63 91 G11 48 6 3 - - - 153 8 3 - 95 F11 45 6 4 - 111 B11 150 8 4 - 97 E13 42 6 5 76 110 A12 147 8 5 64 92 G10 39 6 6 77 112 A11 144 8 6 65 93 F13 36 6 7 - - - 141 8 7 - - - 33 6 8 78 113 D10 138 8 8 66 94 F12 30 6 9 79 116 A10 135 8 9 67 96 F10 27 6 10 - 115 B10 132 8 10 - 101 D13 24 6 11 80 119 B9 129 8 11 68 98 E12 21 6 12 81 120 A9 126 8 12 70 100 E10 18 6 13 - - - 123 8 13 - 103 D11 15 6 14 82 121 D8 120 8 14 71 102 D12 12 6 15 85 124 A8 117 8 15 72 104 C13 9 6 16 - 117 D9 114 8 16 - 107 B13 6 6 17 86 125 B7 111 8 17 73 105 C12 3 6 18 - - - 108 8 18 - - - 0 TQ100 TQ144 CS144 TQ100 TQ144 CS144 BScan Order Notes: 1. The pin-outs are the same for Pb-free versions of packages. 8 www.xilinx.com DS056 (v2.0) April 3, 2007 Product Specification XC95144XL High Performance CPLD R XC95144XL Global, JTAG and Power Pins(1) Pin Type TQ100 TQ144 CS144 I/O/GCK1 22 30 K2 I/O/GCK2 23 32 L1 I/O/GCK3 27 38 N2 I/O/GTS1 3 5 D4 I/O/GTS2 4 6 D3 I/O/GTS3 1 2 B1 I/O/GTS4 2 3 C2 I/O/GSR 99 143 A2 TCK 48 67 L10 TDI 45 63 L9 TDO 83 122 C8 TMS 47 65 N10 VCCINT 3.3V 5, 57, 98 8, 42, 84, 141 B3, D1, J13, L4 VCCIO 2.5V/3.3V 26, 38, 51, 88 1, 37, 55, 73, 109, 127 A1, A13, C7, L7, N1, N13 GND 21, 31, 44, 62, 69, 75, 84, 100 18, 29, 36, 47, 62, 72, 89, 90, 99, 108, 114, 123, 144 B2, B8, B12, C10, E11, G1, G12, G13, K1, M2, M5, M9, M12 No Connects - – – Notes: 1. The pin-outs are the same for Pb-free versions of packages. DS056 (v2.0) April 3, 2007 Product Specification www.xilinx.com 9 XC95144XL High Performance CPLD R Device Part Marking and Ordering Combination Information. R XC95xxxXL TQ144 Device Type Package This line not related to device part number 7C Speed Operating Range 1 Sample package with part marking. Speed (pin-to-pin delay) Pkg. Symbol No. of Pins Package Type Operating Range(1) XC95144XL-5TQ100C 5 ns TQ100 100-pin Thin Quad Flat Pack (TQFP) C XC95144XL-5TQ144C 5 ns TQ144 144-pin Thin Quad Flat Pack (TQFP) C XC95144XL-5CS144C 5 ns CS144 144-ball Chip Scale Package (CSP) C XC95144XL-7TQ100C 7.5 ns TQ100 100-pin Thin Quad Flat Pack (TQFP) C XC95144XL-7TQ144C 7.5 ns TQ144 144-pin Thin Quad Flat Pack (TQFP) C XC95144XL-7CS144C 7.5 ns CS144 144-ball Chip Scale Package (CSP) C XC95144XL-7TQ100I 7.5 ns TQ100 100-pin Thin Quad Flat Pack (TQFP) I XC95144XL-7TQ144I 7.5 ns TQ144 144-pin Thin Quad Flat Pack (TQFP) I XC95144XL-7CS144I 7.5 ns CS144 144-ball Chip Scale Package (CSP) I XC95144XL-10TQ100C 10 ns TQ100 100-pin Thin Quad Flat Pack (TQFP) C XC95144XL-10TQ144C 10 ns TQ144 144-pin Thin Quad Flat Pack (TQFP) C XC95144XL-10CS144C 10 ns CS144 144-ball Chip Scale Package (CSP) C XC95144XL-10TQ100I 10 ns TQ100 100-pin Thin Quad Flat Pack (TQFP) I XC95144XL-10TQ144I 10 ns TQ144 144-pin Thin Quad Flat Pack (TQFP) I XC95144XL-10CS144I 10 ns CS144 144-ball Chip Scale Package (CSP) I XC95144XL-5TQG100C 5 ns TQG100 100-pin Thin Quad Flat Pack (TQFP); Pb-free C XC95144XL-5TQG144C 5 ns TQG144 144-pin Thin Quad Flat Pack (TQFP); Pb-free C XC95144XL-5CSG144C 5 ns CSG144 144-ball Chip Scale Package (CSP); Pb-free C XC95144XL-7TQG100C 7.5 ns TQG100 100-pin Thin Quad Flat Pack (TQFP); Pb-free C XC95144XL-7TQG144C 7.5 ns TQG144 144-pin Thin Quad Flat Pack (TQFP); Pb-free C XC95144XL-7CSG144C 7.5 ns CSG144 144-ball Chip Scale Package (CSP); Pb-free C XC95144XL-7TQG100I 7.5 ns TQG100 100-pin Thin Quad Flat Pack (TQFP); Pb-free I XC95144XL-7TQG144I 7.5 ns TQG144 144-pin Thin Quad Flat Pack (TQFP); Pb-free I XC95144XL-7CSG144I 7.5 ns CSG144 144-ball Chip Scale Package (CSP); Pb-free I Device Ordering and Part Marking Number 10 www.xilinx.com DS056 (v2.0) April 3, 2007 Product Specification XC95144XL High Performance CPLD R Device Ordering and Part Marking Number Speed (pin-to-pin delay) Pkg. Symbol No. of Pins Package Type Operating Range(1) XC95144XL-10TQG100C 10 ns TQG100 100-pin Thin Quad Flat Pack (TQFP); Pb-free C XC95144XL-10TQG144C 10 ns TQG144 144-pin Thin Quad Flat Pack (TQFP); Pb-free C XC95144XL-10CSG144C 10 ns CSG144 144-ball Chip Scale Package (CSP); Pb-free C XC95144XL-10TQG100I 10 ns TQG100 100-pin Thin Quad Flat Pack (TQFP); Pb-free I XC95144XL-10TQG144I 10 ns TQG144 144-pin Thin Quad Flat Pack (TQFP); Pb-free I XC95144XL-10CSG144I 10 ns CSG144 144-ball Chip Scale Package (CSP); Pb-free I Notes: 1. C = Commercial: TA = 0° to +70°C; I = Industrial: TA = –40° to +85°C Standard Example: XC95144XL -4 TQ 144 Pb-Free Example: XC95144XL -4 TQ C G 144 C Device Speed Grade Package Type Pb-Free Number of Pins Temperature Range Device Speed Grade Package Type Number of Pins Temperature Range Warranty Disclaimer THESE PRODUCTS ARE SUBJECT TO THE TERMS OF THE XILINX LIMITED WARRANTY WHICH CAN BE VIEWED AT http://www.xilinx.com/warranty.htm. THIS LIMITED WARRANTY DOES NOT EXTEND TO ANY USE OF THE PRODUCTS IN AN APPLICATION OR ENVIRONMENT THAT IS NOT WITHIN THE SPECIFICATIONS STATED ON THE THEN-CURRENT XILINX DATA SHEET FOR THE PRODUCTS. PRODUCTS ARE NOT DESIGNED TO BE FAIL-SAFE AND ARE NOT WARRANTED FOR USE IN APPLICATIONS THAT POSE A RISK OF PHYSICAL HARM OR LOSS OF LIFE. USE OF PRODUCTS IN SUCH APPLICATIONS IS FULLY AT THE RISK OF CUSTOMER SUBJECT TO APPLICABLE LAWS AND REGULATIONS. Further Reading The following Xilinx links go to relevant XC9500XL CPLD documentation, including XAPP111, Using the XC9500XL Timing Model, and XAPP784, Bulletproof CPLD Design Practices. Simply click on the link and scroll down. Data Sheets, Application Notes, and White Papers. Packaging DS056 (v2.0) April 3, 2007 Product Specification www.xilinx.com 11 XC95144XL High Performance CPLD R Revision History The following table shows the revision history for this document. 12 Date Version Revision 10/30/98 1.1 Minor corrections to CS144 pinout table. 11/13/98 1.2 V1.2 minor correction in CS144 pinout table. 06/20/02 1.3 Updated ICC equation, page 1. Updated DC Characteristics: ICC to 45 (typical). Updated Component Availability chart.Added additional IIH test conditions and measurements to DC Characteristics table. 06/20/03 1.4 Updated TSOL from 260 to 220oC. Added Part Marking and updated Ordering Information. 08/21/03 1.5 Updated Package Device Marking Pin 1 orientation. 07/15/04 1.6 Added Pb-free documentation 09/15/04 1.7 Added TAPRPW specification to AC Characteristics. 07/15/05 1.8 Move to Product Specification 03/22/06 1.9 Add Warranty Disclaimer. 04/03/07 2.0 Add programming temperature range warning on page 1. www.xilinx.com DS056 (v2.0) April 3, 2007 Product Specification
