A-SC880IR3C-P03-1T

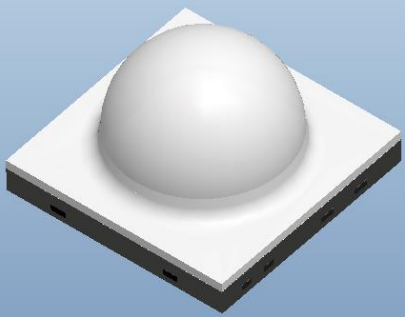

======================================================== 客户（Customer）: 承认书 Approval Sheet 谨致执事者：兹提供敝公司之有关详细规格及图面数据,敬请给予办理试认定手续. 同时敬请送返一份附有贵公司签认之测试认定后之样品承认书. We are pleased in sending you herewith on specification and drawings for your approval. Please return to us one copy “Approval sheet” with your approved signature. 型号 (Model No.) : A-SC880IR3C-P03-1T 发文日期（Issue Date）: 2020/09/09 承认日期（Approved Date）: Checking signature of Amicc Designer Checker Approver Approval signature of customer Designer Checker Approver Darren 江苏欧密格光电科技股份有限公司 Jiangsu Amicc Opto-Electronics Technology Co.,Ltd. 地址:江苏省常州市武进区武南中路 98 号 Add: 98.Wu Nan Road, Wujin, Changzhou city, Jiangsu Province TEL:0086-519-89806973 FAX:0086-519-86523668 1 Release Date : 09.Sep.2020. Issue No: v1 Issue No:ADE-880-017 www.amicc.com DATASHEET High Power Infrared Light source LED Type A-SC880IR3C-P03-1T Amicc High Power Infrared Light source LED Type A-SC880IR3C-P03-1T Features ‧Top view LED ‧Compatible with infrared and vapor phase reflow solder process. ‧Narrow viewing angle --- 90° ‧Pb-free ‧RoHS compliant Description The Amicc 880 package has high efficacy, high power consumption, wide viewing angle and a compact form factor. These features make this package an ideal LED for all lighting applications. Applications ‧Infrared remote control units with high power requirement ‧Smoke detector ‧Infrared applied system ‧Infrared illumination for cameras ‧Surveillance systems Device Selection Guide 2 Chip Materials Emitted Color Resin Color Si-substrate Infrared Water clear Release Date : 09.Sep.2020. Issue No: v1 Issue No:ADE-880-017 www.amicc.com DATASHEET High Power Infrared Light source LED Type A-SC880IR3C-P03-1T Amicc Absolute Maximum Ratings (TSoldering=25℃) Parameter Symbol Rating Unit IF 1000 mA IFP 1200 mA Reverse Voltage VR 5 V Operating Temperature Topr -40 ~ +85 ℃ Storage Temperature Tstg -40 ~ +100 ℃ Pd 2.3 W ESD 2000 V Thermal Resistance(junction to case) Rs 18 ℃/W Soldering Temperature Tsol 260℃ ℃ Forward Current Peak Forward Current Pulse Width≦100μs ,Duty≦1%. Power Dissipation at(or below) 25℃Free Air Temperature Electrostatic Discharge(HBM) . Electro-Optical Characteristics (TSoldering=25℃) Parameter Symbol Min. Typ. Max. Unit Condition Radiant Intensity Ie 285 380 450 mW/sr IF=1A, tP=10ms Forward Voltage VF 1.7 1.95 2.3 V IF=1A, tP=10ms Peak Wavelength λp ----- 855 ----- nm IF=1A, tP=10ms λ centroid ----- 850 ----- nm IF=1A, tP=10ms △λ ----- 25 ----- nm IF=1A, tP=10ms 2θ1/2 ----- 90 ----- deg IF=350mA Centroid Wavelength Spectral Half-width Viewing Angle Dimensions of active chip area Reverse Current L x W(Typ.) IR 35*35 ----- ----- mil 5 μA VR =10V Notes: 1.Tolerance of Radiant Intensity: ±10% 2.Tolerance of Forward Voltage: ± 0.1V. 3 Release Date : 09.Sep.2020. Issue No: v1 Issue No:ADE-880-017 www.amicc.com DATASHEET High Power Infrared Light source LED Type A-SC880IR3C-P03-1T Amicc Typical Electro-Optical Characteristics Curves Fig.1-Forword Current vs. Ambient Temperature Fig.2-Spectral Sensitivity Ta=25°C 1.0 Relative Spectral Sensitivity Forword Current (mA) 2000 1600 1200 1000 800 400 0 -25 0 25 50 0.8 0.6 0.4 0.2 0 700 75 85 100 750 800 850 900 950 Wavelength λ (nm) Ambient Temperature Ta (°C) Fig.3-Forward Current vs. Forward Voltage Ta=25°C Fig.4-Radiation Diagram Ta=25°C 0° 10° 20° 30° 3 Forward Current IF (mA) 10 2 40° 10 1.0 1 10 0.9 50° 0.8 60° 70° 0.7 80° 90° 0 10 0 1.0 2.0 3.0 4.0 0.5 0.3 0.1 0.2 0.4 0.6 Forward Voltage (V) 4 Release Date : 09.Sep.2020. Issue No: v1 Issue No:ADE-880-017 www.amicc.com DATASHEET High Power Infrared Light source LED Type A-SC880IR3C-P03-1T Amicc Typical Electro-Optical Characteristics Curves Fig.5-Peak Emission Wavelengt vs. Ambient Temperature 700 Relative Intensity (mW/sr) 880 W P (nm) 870 860 850 840 0 20 40 60 80 Fig.6-Relative Intensity vs. Forword Current 600 500 400 300 200 400 600 800 1000 1200 1400 1600 100 Ambient Temperature Ta (°C) Forword Current I F (mA) Fig.7-Relative Intensity vs. Ambient Temperature Ta=25°C Forword Voltage for IF =20mA Relative Flux (%) 140 120 100 80 60 -20 0 20 40 60 80 Ambient Temperature Ta (°C) 5 Fig.8-Forword Voltage vs. Ambient Temperature Ta=25°C Release Date : 09.Sep.2020. Issue No: v1 Issue No:ADE-880-017 1.8 1.7 1.6 1.5 1.4 0 20 40 60 80 100 Ambient Temperature Ta (°C) www.amicc.com DATASHEET High Power Infrared Light source LED Type A-SC880IR3C-P03-1T Amicc Package Dimensions 0.6 2.3 3.85 3.85 2.76 Recommended Solder Pad 0.5 1.0 0.5 0.5 1.0 0.5 Anode 2.7 2.7 Cathode 0.45 0.45 0.5 0.5 Note: Tolerance unless mentioned is ±0.25mm,Unit = mm. 6 Release Date : 09.Sep.2020. Issue No: v1 Issue No:ADE-880-017 www.amicc.com DATASHEET High Power Infrared Light source LED Type A-SC880IR3C-P03-1T Amicc Moisture Resistant Packing Materials Label Explanation ‧CPN: Customer’s Product Number AMICC AMICC OPTO-ELECTRONICS TECHNOLOGY Co.,LTD TYPE: X-XXXXXXXX-XXX-XX LM: XX HUE: XX VF: XX ‧TYPE: Part NO. ‧IV: Radiant Intensity Rank P/N: XXXXXXXXXX CODE ‧P/N: Product Number MIN MAX ‧WD: Dom. Wavelength Rank UNIT XX XX lmW m XX XX V ‧VF: Forward Voltage Rank ‧LOT No: Lot Number ‧QTY: Packing Quantity QYT: xxxx LOT NO:×××××××× MADE IN CHINA Carrier Tape Dimensions: Loaded Quantity 1000 pcs Per Reel Moisture Resistant Packing Process Label Label Desiccant Aluminum moisture-proof bag 7 Release Date : 09.Sep.2020. Issue No: v1 Issue No:ADE-880-017 www.amicc.com DATASHEET High Power Infrared Light source LED Type A-SC880IR3C-P03-1T Amicc Reliability Test Items and Conditions The reliability of products shall be satisfied with items listed below. Confidence level：90% LTPD：10% No. Items Test Condition Test Hours/Cycles Sample Size Ac/Re 1 Reflow Soldering Temp. : 260℃/10sec. 3 Cycles 22 PCS. 0/1 100 Cycles 22 PCS. 0/1 100 Cycles 22 PCS. 0/1 H : +100℃ 5min 2 ∫ 10 sec Thermal Shock L : -10℃ 5min H : +100℃ 15min 3 ∫ 5 min Temperature Cycle L : -40℃ 15min 4 High Temperature/Humidity Ta=85℃,85%RH 1000 Hrs. 22 PCS. 0/1 5 Low Temperature Storage Ta=-40℃ 1000 Hrs. 22 PCS. 0/1 6 High Temperature Storage Ta=100℃ 1000 Hrs. 22 PCS. 0/1 7 DC Operation Life Ts=25℃, IF = 1A 1000 Hrs. 22 PCS. 0/1 Note: All reliability items are tested under good thermal management with 1.0 x 1.0 cm² MCPCB 8 Release Date : 09.Sep.2020. Issue No: v1 Issue No:ADE-880-017 www.amicc.com DATASHEET High Power Infrared Light source LED Type A-SC880IR3C-P03-1T Amicc Precautions for use 1. Over-current-proof Customer must apply resistors for protection; otherwise slight voltage shift will cause big current change (Burn out will happen). 2. Storage 2.1 Do not open moisture proof bag before the products are ready to use. 2.2 Before opening the package: The LEDs should be kept at 30℃ or less and 90%RH or less. 2.3 After opening the package: The LED's floor life is 168 Hrs under 30℃ or less and 60% RH or less. If unused LEDs remain, it should be stored in moisture proof packages. 2.4 If the moisture absorbent material (silica gel) has faded away or the LEDs have exceeded the storage time, baking treatment should be performed using the following conditions. Baking treatment: 60±5℃ for 24 hours. 3. Soldering Condition 3.1 Pb-free solder temperature profile 260 C Max. 10sec. Max. Above255 C 30sec.Max. 3 C/sec.Max. 6 C/sec.Max. Pre-heating Above 217 60~150 sec. 150~200 C 60~120sec. 3.2 Reflow soldering should not be done more than two times. 3.3 When soldering, do not put stress on the LEDs during heating. 3.4 After soldering, do not warp the circuit board. 4. Soldering Iron Each terminal is to go to the tip of soldering iron temperature less than 350℃ for 3 seconds within once in less than the soldering iron capacity 25W. Leave two seconds and more intervals, and do soldering of each terminal. Be careful because the damage of the product is often started at the time of the hand solder. 5. Repairing Repair should not be done after the LEDs have been soldered. When repairing is unavoidable, a double-head soldering iron should be used (as below figure). It should be confirmed beforehand whether the characteristics of the LEDs will or will not be damaged by repairing. 9 Release Date : 09.Sep.2020. Issue No: v1 Issue No:ADE-880-017 www.amicc.com
