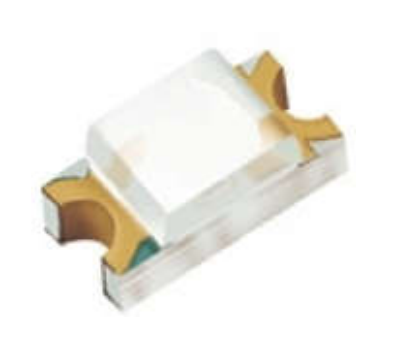

A-SP150W1D-A02-3T

======================================================== 客户（Customer）: 承认书 Approval Sheet 谨致执事者：兹提供敝公司之有关详细规格及图面数据,敬请给予办理试认定手续. 同时敬请送返一份附有贵公司签认之测试认定后之样品承认书. We are pleased in sending you herewith on specification and drawings for your approval. Please return to us one copy “Approval sheet” with your approved signature. 型号 (Model No.) : A-SP150W1D-A02-3T 发文日期（Issue Date）: 2020/05/22 承认日期（Approved Date）: Checking signature of Amicc Designer Checker Approver Approval signature of customer Designer Checker Approver Will 江苏欧密格光电科技股份有限公司 Jiangsu Amicc Opto-Electronics Technology Co.,Ltd. 地址:江苏省常州市武进区武南中路 98 号 Add: 98.Wu Nan Road, Wujin, Changzhou city, Jiangsu Province TEL:0086-519-89806973 FAX:0086-519-86523668 1 Release Date : 22.May.2020. Issue No: V2 Issue No:ADE-150-019 www.amicc.com DATASHEET Mono-Color Type  Top view 1206 Package A-SP150W1D-A02-3T Amicc Mono-Color Type  Top view 1206 Package A-SP150W1D-A02-3T Features ‧1206 package ‧Top view LED ˙Compatible with infrared and vapor phase reflow solder process. ˙Wide viewing angle ˙Pb-free ˙RoHS compliant Description The Amicc 150 package has high efficacy, high power consumption, wide viewing angle and a compact form factor. These features make this package an ideal LED for all lighting applications. Applications ‧General lighting ‧Decorative and Entertainment Lighting ‧Indicators ‧Automotive Telecommunication ‧Switch lights Device Selection Guide Chip Materials GaN/InGaN 2 Release Date : 22.May.2020. Issue No: V2 Issue No:ADE-150-019 Emitted Color White Resin Color Diffused www.amicc.com DATASHEET Mono-Color Type  Top view 1206 Package A-SP150W1D-A02-3T Amicc Absolute Maximum Ratings (TSoldering=25℃) Parameter Symbol Rating Unit Forward Current IF 20 mA Peak Forward Current (Duty 1/10 @1ms) IFP 100 mA Power Dissipation Pd 75 mW Operating Temperature Topr -40 ~ +85 ℃ Storage Temperature Tstg -40 ~ +100 ℃ Electrostatic Discharge(HBM) ESD 1000 V Soldering Temperature Tsol Reflow Soldering : 260 ℃ for 10 sec. Hand Soldering : 350 ℃ for 3 sec. Note: The products are sensitive to static electricity and must be carefully taken when handling products. Electro-Optical Characteristics (TSoldering=25℃) Parameter Symbol Min. Typ. Max. Unit Condition Luminous Intensity IV 565 ----- 1120 mcd IF=20mA Forward Voltage VF 2.75 ----- 3.65 V IF=20mA 2θ1/2 ----- 130 ----- deg IF=20mA IR ----- ----- 10 μA VR =5V Viewing Angle Reverse Current Notes: 1. Tolerance of Luminous Intensity ±10%. 2. Tolerance of Forward Voltage : ±0.1V. 3 Release Date : 22.May.2020. Issue No: V2 Issue No:ADE-150-019 www.amicc.com DATASHEET Mono-Color Type  Top view 1206 Package A-SP150W1D-A02-3T Amicc Bin Range of Luminous Intensity Bin Code Min. Max. Unit Condition AU2 AV1 565 715 715 900 mcd IF=20mA AV2 900 1120 Note: Tolerance of Luminous Intensity: ±10%. Bin Range of Forward Voltage Bin Code Min. Max. 5 2.75 3.05 6 7 3.05 3.35 3.35 3.65 Unit Condition V IF=20mA Note: Tolerance of Forward Voltage: ±0.1V. Bin Range of Chromaticity Coordinates Bin Code CIE_x CIE_y 0.2853 0.2820 0.2899 0.2920 A Bin Code CIE_x CIE_y 0.2899 0.2920 0.2945 0.3020 B 0.3038 0.2920 0.3084 0.3020 0.2992 0.2820 0.3038 0.2920 0.2945 0.3020 0.2991 0.3120 0.2991 0.3120 0.3038 0.3220 C D 0.3131 0.3120 0.3177 0.3220 0.3084 0.3020 0.3131 0.3120 0.3038 0.3220 0.3084 0.3320 0.3084 0.3320 0.3131 0.3420 E F 0.3223 0.3320 0.3270 0.3420 0.3177 0.3220 0.3223 0.3320 0.3131 0.3420 0.3177 0.3520 0.3316 0.3520 0.3270 0.3420 G Note: 1. The value is based on driving current by 20mA. 2. Tolerance of Chromaticity Coordinates: ±0.01. 4 Release Date : 22.May.2020. Issue No: V2 Issue No:ADE-150-019 www.amicc.com DATASHEET Mono-Color Type  Top view 1206 Package A-SP150W1D-A02-3T Amicc The C.I.E. 1931 Chromaticity Diagram Spectrum Distribution 5 Release Date : 22.May.2020. Issue No: V2 Issue No:ADE-150-019 www.amicc.com DATASHEET Mono-Color Type  Top view 1206 Package A-SP150W1D-A02-3T Amicc Typical Electro-Optical Characteristics Curves Fig.1-Forword Voltage Shift vs. Juntion Temperature Fig.2-Relative Luminous Intensity vs. Forword Current Ts=25°C 3.2 Relative Luminous Intensity (Normalized at 20mA) Forword Voltage Shift -V 0.20 0.15 0.10 0.05 0.00 -0.05 -0.10 -0.15 -0.20 -50 -25 0 25 50 75 2.8 2.4 2.0 1.6 1.2 1.0 0.8 0.4 0.0 100 0 1.4 200 1.2 100 1.0 0.8 0.6 0.4 25 50 75 Forward Current IF (mA) 60 100 1 2.0 2.5 3.0 3.5 4.0 Forward Voltage VF (V) Fig.5-Max.Driving Forward Current vs.Soldering Temperture Fig.6-Radiation Diagram Ta=25°C 0° 10° 20° 30° 40 40° 30 25 1.0 20 0.9 50° 0.8 60° 10 70° 0.7 0 0 20 40 60 85 80° 90° 100 Soldering Temperature Ts (°C) 6 50 10 Tj-Juntion Temperature (°C) 50 40 Fig.4-Forward Current vs. Forward Voltage Ta=25°C Forward Current IF (mA) Relative luminous intensity (%) Fig.3-Relative Luminous Intensity vs.Juntion Temperature 0 30 Forward Current IF (mA) Tj-Juntion Temperature (°C) 0.2 -50 -25 20 10 Release Date : 22.May.2020. Issue No: V2 Issue No:ADE-150-019 0.5 0.3 0.1 0.2 0.4 0.6 www.amicc.com DATASHEET Mono-Color Type  Top view 1206 Package A-SP150W1D-A02-3T Amicc Package Dimension 3.2 1.6 1.4 - + Polarity 0.48 1.1 Top View Recommended Solder Pad Side View 1.2 1.6 1.2 1.45 1.6 1.6 0.8 0.8 Bottom View Note: Tolerance unless mentioned is ±0.1mm,Unit = mm. 7 Release Date : 22.May.2020. Issue No: V2 Issue No:ADE-150-019 www.amicc.com DATASHEET Mono-Color Type  Top view 1206 Package A-SP150W1D-A02-3T Amicc Moisture Resistant Packing Materials Label Explanation ‧CPN: Customer’s Product Number ‧P/N: Product Number ‧TYPE :Part NO. ‧IV: Luminous Intensity Rank ‧WD: Dom. Wavelength Rank ‧VF: Forward Voltage Rank ‧LOT NO.: Lot Number ‧QTY: Packing Quantity Reel Dimensions Note: Tolerances unless mentioned ±0.1mm,Unit = mm. 8 Release Date : 22.May.2020. Issue No: V2 Issue No:ADE-150-019 www.amicc.com DATASHEET Mono-Color Type  Top view 1206 Package A-SP150W1D-A02-3T Amicc Carrier Tape Dimensions: Loaded Quantity 3000 pcs Per Reel Note: 1.Tolerance unless mentioned is ±0.1mm,Unit = mm. 2.Minimum packing amount is 1000/2000 pcs per reel. Moisture Resistant Packing Process 9 Release Date : 22.May.2020. Issue No: V2 Issue No:ADE-150-019 www.amicc.com DATASHEET Mono-Color Type  Top view 1206 Package A-SP150W1D-A02-3T Amicc Reliability Test Items and Conditions The reliability of products shall be satisfied with items listed below. Confidence level：90% LTPD：10% No. Items Test Condition Test Hours/Cycles Sample Size Ac/Re 1 Reflow Soldering Temp. : 260℃/10sec. 6 Min. 22 PCS. 0/1 2 Thermal Shock 300 Cycles 22 PCS. 0/1 3 Temperature Cycle 300 Cycles 22 PCS. 0/1 4 High Temperature/Humidity Reverse Bias Ta=85℃,85%RH 1000 Hrs. 22 PCS. 0/1 5 Low Temperature Storage Ta=-40℃ 1000 Hrs. 22 PCS. 0/1 6 High Temperature Storage Ta=100℃ 1000 Hrs. 22 PCS. 0/1 7 DC Operation Life Ta=25℃, IF = 20 mA 1000 Hrs. 22 PCS. 0/1 10 H : +100℃ 5min ∫ 10 sec L : -10℃ 5min H : +100℃ 15min ∫ 5 min L : -40℃ 15min Release Date : 22.May.2020. Issue No: V2 Issue No:ADE-150-019 www.amicc.com DATASHEET Mono-Color Type  Top view 1206 Package A-SP150W1D-A02-3T Amicc Precautions for Use 1. Over-current-proof Customer must apply resistors for protection; otherwise slight voltage shift will cause big current change (Burn out will happen). 2. Storage 2.1 Do not open moisture proof bag before the products are ready to use. 2.2 Before opening the package: The LEDs should be kept at 30℃ or less and 90%RH or less. 2.3 After opening the package: The LED's floor life is 1 year under 30℃ or less and 60% RH or less. If unused LEDs remain, it should be stored in moisture proof packages. 2.4 If the moisture absorbent material (silica gel) has faded away or the LEDs have exceeded the storage time, baking treatment should be performed using the following conditions. Baking treatment: 60±5℃ for 24 hours. 3. Soldering Condition 3.1 Pb-free solder temperature profile 3.2 Reflow soldering should not be done more than two times. 3.3 When soldering, do not put stress on the LEDs during heating. 3.4 After soldering, do not warp the circuit board. 4. Soldering Iron Each terminal is to go to the tip of soldering iron temperature less than 350℃ for 3 seconds within once in less than the soldering iron capacity 25W. Leave two seconds and more intervals, and do soldering of each terminal. Be careful because the damage of the product is often started at the time of the hand solder. 5. Repairing Repair should not be done after the LEDs have been soldered. When repairing is unavoidable, a double-head soldering iron should be used (as below figure). It should be confirmed beforehand whether the characteristics of the LEDs will or will not be damaged by repairing. 11 Release Date : 22.May.2020. Issue No: V2 Issue No:ADE-150-019 www.amicc.com
