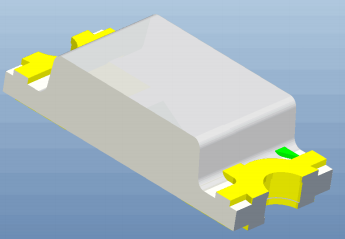

A-SP192GW1D-C25-18T(L)

======================================================== 客户（Customer）: 承认书 Approval Sheet 谨致执事者：兹提供敝公司之有关详细规格及图面数据,敬请给予办理试认定手续. 同时敬请送返一份附有贵公司签认之测试认定后之样品承认书. We are pleased in sending you herewith on specification and drawings for your approval. Please return to us one copy “Approval sheet” with your approved signature. 型号 (Model No.) : A-SP192GW1D-C25-18T(L) 发文日期（Issue Date）: 2022/04/12 承认日期（Approved Date）: Checking signature of Amicc Designer Checker Approver Approval signature of customer Designer Checker Approver Will 江苏欧密格光电科技股份有限公司 Jiangsu Amicc Opto-Electronics Technology Co.,Ltd. 地址:江苏省常州市武进区武南中路 98 号 Add: 98.Wu Nan Road, Wujin, Changzhou city, Jiangsu Province TEL:0086-519-89806973 FAX:0086-519-86523668 1 Release Date: 12.Apr.2022. Issue No: V3 Issue No:ADE-192G-087 www.amicc.com DATASHEET Mono-Color Type  Top view 0603 Package A-SP192GW1D-C25-18T(L) Amicc Mono-Color Type  Top view 0603 Package A-SP192GW1D-C25-18T(L) Features ‧0603 package ‧Top view LED ˙Compatible with infrared and vapor phase reflow solder process. ˙Wide viewing angle ˙Pb-free ˙RoHS compliant Description The Amicc 192G package has high efficacy, high power consumption, wide viewing angle and a compact form factor. These features make this package an ideal LED for all lighting applications. Applications ‧General lighting ‧Decorative and Entertainment Lighting ‧Indicators ‧Automotive Telecommunication ‧Switch lights Device Selection Guide Chip Materials InGaN 2 Release Date: 12.Apr.2022. Issue No: V3 Issue No:ADE-192G-087 Emitted Color White Resin Color Yellow Diffused www.amicc.com DATASHEET Mono-Color Type  Top view 0603 Package A-SP192GW1D-C25-18T(L) Amicc Absolute Maximum Ratings (TSoldering=25℃) Parameter Symbol Rating Unit Reverse Voltage VR 5 V Forward Current IF 10 mA Peak Forward Current (Duty 1/10 @1ms) IFP 60 mA Power Dissipation Pd 40 mW Operating Temperature Topr -40 ~ +85 ℃ Storage Temperature Tstg -40 ~ +100 ℃ Electrostatic Discharge(HBM) ESD 1000 V Soldering Temperature Reflow Soldering : 260 ℃ for 10 sec. Tsol Hand Soldering : 350 ℃ for 3 sec. Note: The products are sensitive to static electricity and must be carefully taken when handling products. Electro-Optical Characteristics (TSoldering=25℃) Parameter Symbol Min. Typ. Max. Unit Condition Luminous Intensity IV 225 ----- 450 mcd IF=5mA Forward Voltage VF 2.6 ----- 3.2 V IF=5mA 2θ1/2 ----- 130 ----- deg IF=5mA IR ----- ----- 10 μA VR =5V Viewing Angle Reverse Current Notes: 1. Tolerance of Luminous Intensity ±10%. 2. Tolerance of Forward Voltage : ±0.05V. 3 Release Date: 12.Apr.2022. Issue No: V3 Issue No:ADE-192G-087 www.amicc.com DATASHEET Mono-Color Type  Top view 0603 Package A-SP192GW1D-C25-18T(L) Amicc Bin Range of Luminous Intensity Bin Code Min. Max. Unit Condition AS2 AT1 AT2 225 285 360 285 360 450 mcd IF=5mA Note: Tolerance of Luminous Intensity: ±10%. Bin Range of Forward Voltage Bin Code Min. Max. Unit Condition 33 34 35 36 37 38 2.6 2.7 2.8 2.9 3.0 3.1 2.7 2.8 2.9 3.0 3.1 3.2 V IF=5mA Note: Tolerance of Forward Voltage: ±0.05V. 4 Release Date: 12.Apr.2022. Issue No: V3 Issue No:ADE-192G-087 www.amicc.com DATASHEET Mono-Color Type  Top view 0603 Package A-SP192GW1D-C25-18T(L) Amicc Bin Range of Chromaticity Coordinates Bin Code Z1 A1 B1 C1 D1 E1 CIE_x CIE_y 0.2321 0.192 0.2344 0.197 0.2483 Bin Code CIE_x CIE_y 0.2344 0.197 0.2367 0.202 0.197 0.2506 0.202 0.246 0.192 0.2483 0.197 0.2367 0.202 0.239 0.207 0.239 0.207 0.2413 0.212 0.2529 0.207 0.2552 0.212 0.2506 0.202 0.2529 0.207 0.2413 0.212 0.2436 0.217 0.2436 0.217 0.2459 0.222 0.2575 0.217 0.2598 0.222 0.2552 0.212 0.2575 0.217 0.2459 0.222 0.2482 0.227 0.2482 0.227 0.2505 0.232 0.2621 0.227 0.2644 0.232 0.2598 0.222 0.2621 0.227 0.2505 0.232 0.2528 0.237 0.2528 0.237 0.2551 0.242 0.2667 0.237 0.269 0.242 0.2644 0.232 0.2667 0.237 0.2551 0.242 0.2574 0.247 0.2574 0.247 0.2597 0.252 0.2713 0.247 0.2736 0.252 0.269 0.242 0.2713 0.247 Z2 A2 B2 C2 D2 E2 Note: 1. The value is based on driving current by 5mA. 2. Tolerance of Chromaticity Coordinates: ±0.01 5 Release Date: 12.Apr.2022. Issue No: V3 Issue No:ADE-192G-087 www.amicc.com DATASHEET Mono-Color Type  Top view 0603 Package A-SP192GW1D-C25-18T(L) Amicc The C.I.E. 1931 Chromaticity Diagram Spectrum Distribution 6 Release Date: 12.Apr.2022. Issue No: V3 Issue No:ADE-192G-087 www.amicc.com DATASHEET Mono-Color Type  Top view 0603 Package A-SP192GW1D-C25-18T(L) Amicc Typical Electro-Optical Characteristics Curves Fig.2-Relative Luminous Intensity vs. Forword Current Ts=25°C Fig.1-Forword Voltage Shift vs. Junction Temperature 8.0 Relative Luminous Intensity (Normalized at 5mA) Forword Voltage Shift -V 0.20 0.15 0.10 0.05 0.00 -0.05 -0.10 -0.15 -0.20 -50 -25 7.0 6.0 5.0 4.0 3.0 2.0 1.0 0.0 0 25 50 75 100 0 20 25 30 200 1.4 Forward Current IF (mA) Relative luminous intensity (%) 15 Fig.4-Forward Current vs. Forward Voltage Ta=25°C Fig.3-Relative Luminous Intensity vs.Junction Temperature 1.2 1.0 0.8 0.6 0.4 0.2 -50 -25 0 25 50 75 100 100 10 1 2.0 2.5 3.0 3.5 4.0 Forward Voltage VF (V) Tj-Junction Temperature (°C) Forward Current IF (mA) 10 Forward Current IF (mA) Tj-Junction Temperature (°C) 25 5 Fig.6-Radiation Diagram Ta=25°C 0° 10° 20° 30° Fig.5-Max.Driving Forward Current vs.Soldering Temperture 20 40° 1.0 15 10 5 0.9 50° 0.8 60° 70° 0.7 0 -50 -20 10 40 85 100 80° 90° 0.5 0.3 0.1 0.2 0.4 0.6 Soldering Temperature Ts (°C) 7 Release Date: 12.Apr.2022. Issue No: V3 Issue No:ADE-192G-087 www.amicc.com DATASHEET Mono-Color Type  Top view 0603 Package A-SP192GW1D-C25-18T(L) Amicc Package Dimension Note: Tolerance unless mentioned is ±0.1mm,Unit = mm. 8 Release Date: 12.Apr.2022. Issue No: V3 Issue No:ADE-192G-087 www.amicc.com DATASHEET Mono-Color Type  Top view 0603 Package A-SP192GW1D-C25-18T(L) Amicc Moisture Resistant Packing Materials Label Explanation ‧CPN: Customer’s Product Number ‧P/N: Product Number ‧TYPE :Part NO. ‧IV: Luminous Intensity Rank ‧HUE: Chromaticity Coordinates Rank ‧VF: Forward Voltage Rank ‧LOT NO.: Lot Number ‧QTY: Packing Quantity Reel Dimensions Note: Tolerances unless mentioned ±0.1mm,Unit = mm. 9 Release Date: 12.Apr.2022. Issue No: V3 Issue No:ADE-192G-087 www.amicc.com DATASHEET Mono-Color Type  Top view 0603 Package A-SP192GW1D-C25-18T(L) Amicc Carrier Tape Dimensions: Loaded Quantity 18000 pcs Per Reel Note: 1.Tolerance unless mentioned is ±0.1mm,Unit = mm. 2.Minimum packing amount is 18000 pcs per reel. Moisture Resistant Packing Process Label Label Desiccant Aluminum moisture-proof bag 10 Release Date: 12.Apr.2022. Issue No: V3 Issue No:ADE-192G-087 www.amicc.com DATASHEET Mono-Color Type  Top view 0603 Package A-SP192GW1D-C25-18T(L) Amicc Reliability Test Items and Conditions The reliability of products shall be satisfied with items listed below. Confidence level：90% LTPD：10% No. Items Test Condition Test Hours/Cycles Sample Size Ac/Re 1 Reflow Soldering Temp. : 260℃/10sec. 6 Min. 22 PCS. 0/1 Thermal Shock H : +100℃ 5min ∫ 10 sec 300 Cycles 22 PCS. 0/1 300 Cycles 22 PCS. 0/1 2 L : -10℃ 5min 3 Temperature Cycle H : +100℃ 15min ∫ 5 min L : -40℃ 15min 4 High Temperature/Humidity Ta=85℃,85%RH 1000 Hrs. 22 PCS. 0/1 5 Low Temperature Storage Ta=-40℃ 1000 Hrs. 22 PCS. 0/1 6 High Temperature Storage Ta=100℃ 1000 Hrs. 22 PCS. 0/1 7 DC Operation Life Ta=25℃, IF = 5 mA 1000 Hrs. 22 PCS. 0/1 11 Release Date: 12.Apr.2022. Issue No: V3 Issue No:ADE-192G-087 www.amicc.com DATASHEET Mono-Color Type  Top view 0603 Package A-SP192GW1D-C25-18T(L) Amicc Precautions for Use 1. Over-current-proof Customer must apply resistors for protection; otherwise slight voltage shift will cause big current change (Burn out will happen). 2. Storage 2.1 Do not open moisture proof bag before the products are ready to use. 2.2 Before opening the package: The LEDs should be kept at 30℃ or less and 90%RH or less. 2.3 After opening the package: The LED's floor life is 1 year under 30℃ or less and 60% RH or less. If unused LEDs remain, it should be stored in moisture proof packages. 2.4 If the moisture absorbent material (silica gel) has faded away or the LEDs have exceeded the storage time, baking treatment should be performed using the following conditions. Baking treatment: 60±5℃ for 24 hours. 3. Soldering Condition 3.1 Pb-free solder temperature profile . .x x a aM M. c Ce 0s 60 21 . Cx 5a 5M 2. ec ve os b0 A3 . x a M . c e s / C 3 . x a M . c e s / C 6 . c 7e 1s 20 e5 v 1 o~ b0 A6 g n i t a e h e r P . c Ce 0s 00 22 ~1 0~ 50 16 3.2 Reflow soldering should not be done more than two times. 3.3 When soldering, do not put stress on the LEDs during heating. 3.4 After soldering, do not warp the circuit board. 4. Soldering Iron Each terminal is to go to the tip of soldering iron temperature less than 350℃ for 3 seconds within once in less than the soldering iron capacity 25W. Leave two seconds and more intervals, and do soldering of each terminal. Be careful because the damage of the product is often started at the time of the hand solder. 5. Repairing Repair should not be done after the LEDs have been soldered. When repairing is unavoidable, a double-head soldering iron should be used (as below figure). It should be confirmed beforehand whether the characteristics of the LEDs will or will not be damaged by repairing. 12 Release Date: 12.Apr.2022. Issue No: V3 Issue No:ADE-192G-087 www.amicc.com
