A-SP192YR6AC-A01-4T

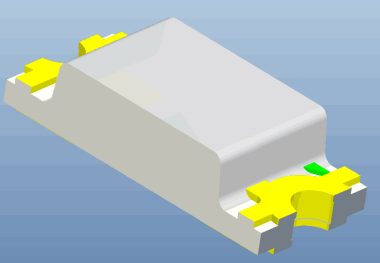

======================================================== 客户（Customer）: 承认书 Approval Sheet 谨致执事者：兹提供敝公司之有关详细规格及图面数据,敬请给予办理试认定手续. 同时敬请送返一份附有贵公司签认之测试认定后之样品承认书. We are pleased in sending you herewith on specification and drawings for your approval. Please return to us one copy “Approval sheet” with your approved signature. 型号 (Model No.) : A-SP192YR6AC-A01-4T 发文日期（Issue Date）: 2015/12/25 承认日期（Approved Date）: Checking signature of Amicc Designer Checker Approver Approval signature of customer Designer Checker Approver 江苏欧密格光电科技股份有限公司 Jiangsu Amicc Opto-Electronics Technology Co.,Ltd 地址:江苏省常州市湖塘鸣凰沟南工业区武南中路 98 号 Add: 98.Wu Nan middle road.Gounan Industrial Park Changzhou TEL:0086-519-89806966 FAX:0086-519-86523668 1 Release Date :25.Dec.2015. Issue No: V3 Issue No:ADE-192Y-005 www.amicc.com DATASHEET Mono-Color Type  Top view 0603 Package A-SP192YR6AC-A01-4T Amicc Mono-Color Type  Top view 0603 Package A-SP192YR6AC-A01-4T Features ‧0603 package ‧Top view LED ˙Compatible with infrared and vapor phase reflow solder process. ˙Wide viewing angle ˙Pb-free ˙RoHS compliant Description The Amicc 192Y package has high efficacy, high power consumption, wide viewing angle and a compact form factor. These features make this package an ideal LED for all lighting applications. Applications ‧General lighting ‧Decorative and Entertainment Lighting ‧Indicators ‧Automotive Telecommunication ‧Switch lights Device Selection Guide Chip Materials AlGaInP 2 Emitted Color Resin Color Brilliant Red Water Clear Release Date :25.Dec.2015. Issue No: V3 Issue No:ADE-192Y-005 www.amicc.com DATASHEET Mono-Color Type  Top view 0603 Package A-SP192YR6AC-A01-4T Amicc Absolute Maximum Ratings (TSoldering=25℃) Parameter Symbol Rating Unit Reverse Voltage VR 5 V Forward Current IF 60 mA Peak Forward Current (Duty 1/10 @1ms) IFP 150 mA Power Dissipation Pd 140 mW Operating Temperature Topr -40 ~ +85 ℃ Storage Temperature Tstg -40 ~ +100 ℃ Electrostatic Discharge(HBM) ESD 2000 V Soldering Temperature Reflow Soldering : 260 ℃ for 10 sec. Tsol Hand Soldering : 350 ℃ for 3 sec. Note: The products are sensitive to static electricity and must be carefully taken when handling products. Electro-Optical Characteristics (TSoldering=25℃) Parameter Symbol Min. Typ. Max. Unit Condition Luminous Intensity IV 450 ----- 900 mcd IF=20mA Peak Wavelength λp ----- 630 ----- nm IF=20mA Dominant Wavelength λd 617 ----- 625 nm IF=20mA Forward Voltage VF 1.7 ----- 2.3 V IF=20mA 2θ1/2 ----- 120 ----- deg IF=20mA IR ----- ----- 10 μA VR =5V Viewing Angle Reverse Current Notes: 1. Tolerance of Luminous Intensity: ±10%. 2. Tolerance of Dominant Wavelength: ±1nm. 3. Tolerance of Forward Voltage: ±0.05V. 3 Release Date :25.Dec.2015. Issue No: V3 Issue No:ADE-192Y-005 www.amicc.com DATASHEET Mono-Color Type  Top view 0603 Package A-SP192YR6AC-A01-4T Amicc Bin Range of Luminous Intensity Bin Code Min. Max. Unit Condition AU1 AU2 AV1 450 565 715 565 715 900 mcd IF=20mA Note: Tolerance of Luminous Intensity: ±10%. Bin Range of Dominant Wavelength Bin Code Min. Max. Unit Condition 1 2 3 4 617 619 621 623 619 621 623 625 nm IF=20mA Bin Code Min. Max. Unit Condition 24 25 26 27 28 29 1.70 1.80 1.90 2.00 2.10 2.20 1.80 1.90 2.00 2.10 2.20 2.30 V IF=20mA Note: Tolerance of Dominant Wavelength: ±1nm. Bin Range of Forward Voltage Note: Tolerance of Forward Voltage: ±0.05V. 4 Release Date :25.Dec.2015. Issue No: V3 Issue No:ADE-192Y-005 www.amicc.com DATASHEET Mono-Color Type  Top view 0603 Package A-SP192YR6AC-A01-4T Amicc Spectrum Distribution Typical Electro-Optical Characteristics Curves Fig.1-Forword Voltage Shift vs. Juntion Temperature Fig.2-Relative Luminous Intensity vs. Forword Current Ts=25°C 3.2 Relative Luminous Intensity (Normalized at 20mA) Forword Voltage Shift -V 0.20 0.15 0.10 0.05 0.00 -0.05 -0.10 -0.15 -0.20 -50 -25 0 25 50 75 100 Tj-Juntion Temperature (°C) 5 Release Date :25.Dec.2015. Issue No: V3 Issue No:ADE-192Y-005 2.8 2.4 2.0 1.6 1.2 0.8 0.4 0.0 0 10 20 30 40 50 60 Forward Current IF (mA) www.amicc.com DATASHEET Mono-Color Type  Top view 0603 Package A-SP192YR6AC-A01-4T Amicc Typical Electro-Optical Characteristics Curves Fig.4-Forward Current vs. Forward Voltage Ta=25°C 200 1.4 Forward Current IF (mA) Relative luminous intensity (%) Fig.3-Relative Luminous Intensity vs.Juntion Temperature 1.2 1.0 0.8 0.6 0.4 0.2 -50 -25 0 25 50 75 Forward Current IF (mA) 1.7 2.0 2.3 2.6 Forward Voltage VF (V) Fig.6-Radiation Diagram Ta=25°C 0° 10° 20° 30° Fig.5-Max.Driving Forward Current vs.Soldering Temperture 60 40° 45 1.0 30 0.9 50° 0.8 60° 15 70° 0.7 0 0 20 40 60 85 100 Soldering Temperature Ts (°C) 6 10 1 1.4 100 Tj-Juntion Temperature (°C) 75 100 Release Date :25.Dec.2015. Issue No: V3 Issue No:ADE-192Y-005 80° 90° 0.5 0.3 0.1 0.2 0.4 0.6 www.amicc.com DATASHEET Mono-Color Type  Top view 0603 Package A-SP192YR6AC-A01-4T Amicc Package Dimension 1 2 1 2 Polarity 0.28 0.6 0.8 1.6 Recommended Solder Pad 0.8 0.4 0.7 0.8 0.8 0.8 0.7 0.4 Anode mark Note: Tolerance unless mentioned is ±0.1mm,Unit = mm. 7 Release Date :25.Dec.2015. Issue No: V3 Issue No:ADE-192Y-005 www.amicc.com DATASHEET Mono-Color Type  Top view 0603 Package A-SP192YR6AC-A01-4T Amicc Moisture Resistant Packing Materials Label Explanation ‧CPN: Customer’s Product Number ‧P/N: Product Number ‧TYPE :Part NO. ‧IV: Luminous Intensity Rank ‧WD: Dom. Wavelength Rank ‧VF: Forward Voltage Rank ‧LOT NO.: Lot Number ‧QTY: Packing Quantity Reel Dimensions Note: Tolerances unless mentioned ±0.1mm,Unit = mm. 8 Release Date :25.Dec.2015. Issue No: V3 Issue No:ADE-192Y-005 www.amicc.com DATASHEET Mono-Color Type  Top view 0603 Package A-SP192YR6AC-A01-4T Amicc Carrier Tape Dimensions: Loaded Quantity 4000 pcs Per Reel 1 .5 4,00 0.80 1,75 2,00 3.5±0.05 8.0±0.03 ±0 .1 1,75 Progressive direction 4,00 0, 50 0,23 Polarity Note: 1.Tolerance unless mentioned is ±0.1mm,Unit = mm. 2.Minimum packing amount is 1000/2000/3000 pcs per reel. Moisture Resistant Packing Process Label Label Desiccant Aluminum moisture-proof bag 9 Release Date :25.Dec.2015. Issue No: V3 Issue No:ADE-192Y-005 www.amicc.com DATASHEET Mono-Color Type  Top view 0603 Package A-SP192YR6AC-A01-4T Amicc Reliability Test Items and Conditions The reliability of products shall be satisfied with items listed below. Confidence level：90% LTPD：10% No. Items Test Condition Test Hours/Cycles Sample Size Ac/Re 1 Reflow Soldering Temp. : 260℃/10sec. 6 Min. 22 PCS. 0/1 Thermal Shock H : +100℃ 5min ∫ 10 sec 300 Cycles 22 PCS. 0/1 300 Cycles 22 PCS. 0/1 2 L : -10℃ 5min 3 Temperature Cycle H : +100℃ 15min ∫ 5 min L : -40℃ 15min 4 High Temperature/Humidity Reverse Bias Ta=85℃,85%RH 1000 Hrs. 22 PCS. 0/1 5 Low Temperature Storage Ta=-40℃ 1000 Hrs. 22 PCS. 0/1 6 High Temperature Storage Ta=100℃ 1000 Hrs. 22 PCS. 0/1 7 DC Operation Life Ta=25℃ IF = 20 mA 1000 Hrs. 22 PCS. 0/1 10 Release Date :25.Dec.2015. Issue No: V3 Issue No:ADE-192Y-005 www.amicc.com DATASHEET Mono-Color Type  Top view 0603 Package A-SP192YR6AC-A01-4T Amicc Precautions for Use 1. Over-current-proof Customer must apply resistors for protection; otherwise slight voltage shift will cause big current change (Burn out will happen). 2. Storage 2.1 Do not open moisture proof bag before the products are ready to use. 2.2 Before opening the package: The LEDs should be kept at 30℃ or less and 90%RH or less. 2.3 After opening the package: The LED's floor life is 1 year under 30℃ or less and 60% RH or less. If unused LEDs remain, it should be stored in moisture proof packages. 2.4 If the moisture absorbent material (silica gel) has faded away or the LEDs have exceeded the storage time, baking treatment should be performed using the following conditions. Baking treatment: 60±5℃ for 24 hours. 3. Soldering Condition 3.1 Pb-free solder temperature profile 260 C Max. 10sec. Max. Above255 C 30sec.Max. 3 C/sec.Max. 6 C/sec.Max. Pre-heating Above 217 60~150 sec. 150~200 C 60~120sec. 3.2 Reflow soldering should not be done more than two times. 3.3 When soldering, do not put stress on the LEDs during heating. 3.4 After soldering, do not warp the circuit board. 4. Soldering Iron Each terminal is to go to the tip of soldering iron temperature less than 350℃ for 3 seconds within once in less than the soldering iron capacity 25W. Leave two seconds and more intervals, and do soldering of each terminal. Be careful because the damage of the product is often started at the time of the hand solder. 5. Repairing Repair should not be done after the LEDs have been soldered. When repairing is unavoidable, a double-head soldering iron should be used (as below figure). It should be confirmed beforehand whether the characteristics of the LEDs will or will not be damaged by repairing. 11 Release Date :25.Dec.2015. Issue No: V3 Issue No:ADE-192Y-005 www.amicc.com
