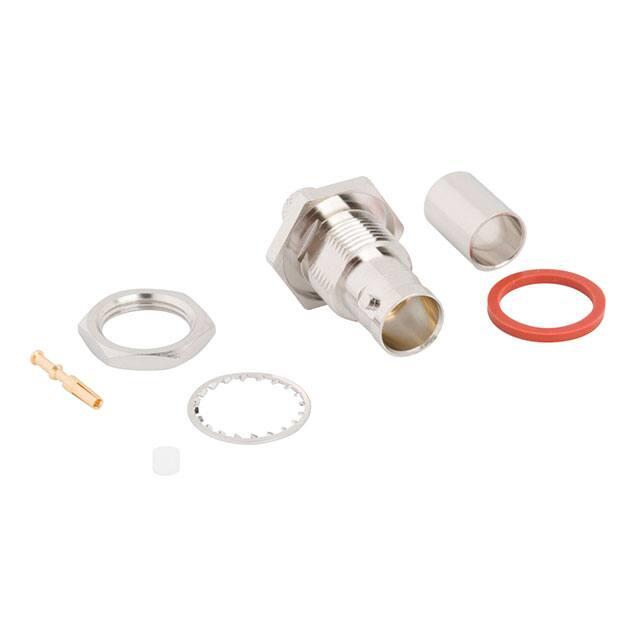

031-70565-12G

NOTES: 1. 2. THIRD ANGLE PROJ. REV MATERIALS AND FINISHES: BODY - BRASS, NICKEL PLATING FERRULE - COPPER, NICKEL PLATING LOCK WASHER - BRASS, NICKEL PLATING HEX NUT - BRASS, NICKEL PLATING LOCK RING - BRASS, GOLD PLATING CONTACT - PHOSPHOR BRONZE, GOLD PLATING INSULATORS - PTFE, NATURAL GASKET - SILICON RUBBER, RED A MECHANICAL: A. DURABILITY: 500 CYCLES MIN. B. TEMPERATURE RANGE: -65 $ C TO +165 $ C 4. CRIMPED FERRULE HEX CRIMP SIZE .319" 5. CRIMPED CONTACT PIN SQ. CRIMP SIZE .042" 6. SHOWS CABLE ENTRY DIMENSIONS 7. PACKAGING: A. QUANTITY: SINGLE PACK B. MARKING: PACKAGING TO BE MARKED "AMPHENOL RF, 31-70565-12G & DATE CODE" REVISIONS RELEASE TO MFG. DATE 28-Jun-19 ECN APPR 12045 EH 19.14 [.754 ] ELECTRICAL: A. IMPEDANCE: 75 OHM B. FREQUENCY RANGE: DC-12 GHz C. VSWR(RETURN LOSS): 1.22 (20 dB) MAX @ DC-6 GHz 1.43 (15 dB) MAX @ 6-12 GHz D. DIELECTRIC WITHSTANDING VOLTAGE: 1500 VRMS, MIN. 3. DESCRIPTION 10.84 [.427 ] 12.83 0.1 [.505 .004 ] 6 [.236 ] SCALE 2.000 12.02 0.1 [.473 .004 ] RECOMMENDED CABLE STRIPPING DIMENSIONS RECOMMENDED MOUNTING HOLE LOCK WASHER 18.33 [.722 ] HEX NUT 17.45 HEX [.687 ] 2.1 REF [.083 ] 6 INTERFACE PER MIL-STD-348 SERIES: BNC JACK 75 OHMS 9.1 REF [.358 ] 3.5 REF [.138 ] 6.85 REF [.270 ] 6 1.15 [.045 ] 6 1.1 [.043 ] 4.8 [.189 ] 6 13.6 REF [.535 ] 1/2-28UNEF-2A THREAD 12.7 REF [.500 ] CUSTOMER OUTLINE DRAWING 31.37 REF [1.235 ] UNLESS OTHERWISE SPECIFIED, DIMENSIONS ARE IN METRIC AND TOLERANCES ARE:
