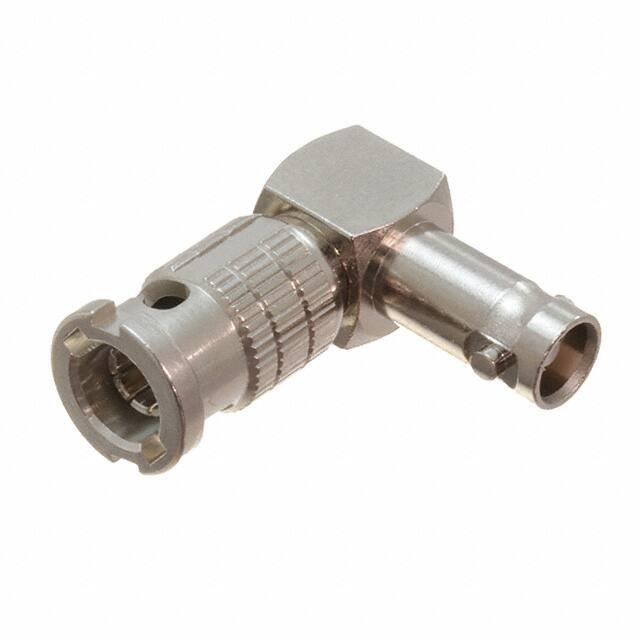

034-1111-12G

NOTES: 1. MATERIALS AND FINISHES: BODY-REAR, WASHER, RETAINING RING, COUPLING NUT, CAP - BRASS, NICKEL PLATING OUTER CONTACT - BeCu, NICKEL PLATING CONTACT - PHOSPHOR BRONZE, GOLD PLATING CONTACT - BeCu, GOLD PLATING INSULATORS - PTFE, NATURAL SPRING - STAINLESS STEEL, PASSIVATED GASKET - FLUOROSILICONE, BLACK 2. ELECTRICAL: A. IMPEDANCE: 75 OHM B. FREQUENCY RANGE: DC-18 GHz C. RETURN LOSS: -20 dB MIN. @ DC-6 GHz -15 dB MIN. @ 6-12 GHz 3. MECHANICAL: A. DURABILITY: 500 CYCLES MIN. B. TEMPERATURE RANGE: -65 $ C TO +165 $ C 4. ENVIRONMENTAL: A. THERMAL SHOCK PER MIL-STD-202 METHOD 107 TEST CONDITION B (EXCEPT HIGH TEMP @200 $ C) B. VIBRATION: MIL-STD-202 METHOD 204 TEST CONDITION B C. SHOCK: MIL-STD-202 METHOD 213 TEST CONDITION B D. CORROSION: MIL-STD-202 METHOD 101 TEST CONDITION B 5% SALT SOLUTION 5. PACKAGING: A. QUANTITY: SINGLE PACK B. MARKING: BAG TO BE MARKED "AMPHENOL RF, 34-1111-12G , DATE CODE U.S. PATENT NO. 7,553,177" THIRD ANGLE PROJ. REV DESCRIPTION A REVISIONS RELEASE TO MFG. DATE 02-Jan-19 ECN 10122 APPR EH 18,25 REF [0.719 ] 15,08 REF [0.594 ] SCALE 4.500 INTERFACE: HD-BNC PLUG 15,35 REF [0.604 ] 7,00 REF [ 0.276 ] TYP(3) 12,18 REF [0.479 ] INTERFACE: HD-BNC JACK PROTECTED UNDER U.S. PATENT # 7,553,177 UNLESS OTHERWISE SPECIFIED, DIMENSIONS ARE IN METRIC AND TOLERANCES ARE:
