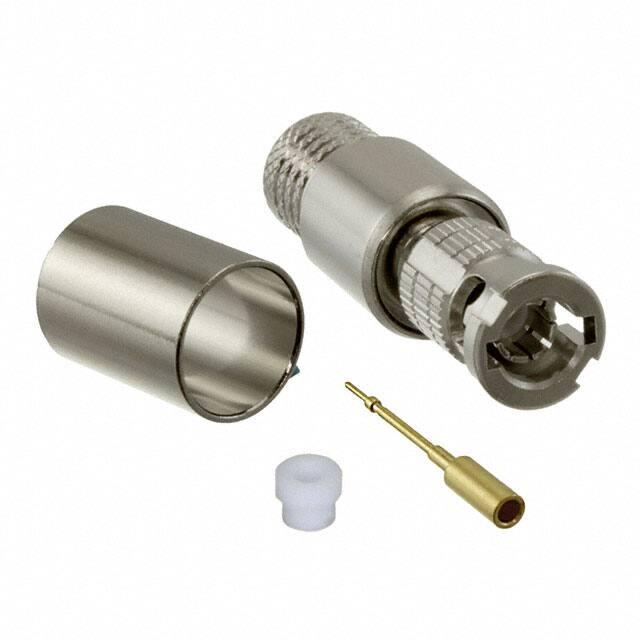

034-1127-12G

NOTES: 1. 2. 3. MATERIALS AND FINISHES: BODY, RETAINING RING, WASHER, FERRULE AND BAYONET SLEEVE - BRASS, NICKEL PLATING OUTER CONTACT - BeCu, NICKEL PLATING CONTACT - PHOSPHOR BRONZE, GOLD PLATING INSULATORS - PTFE, NATURAL SPRING - STAINLESS STEEL, PASSIVATED GASKET - FLUOROSILICONE, BLACK ELECTRICAL: A. IMPEDANCE: 75 OHM B. FREQUENCY RANGE: DC - 18 GHz C. RETURN LOSS: 20 dB MIN @ DC - 6 GHz 15 dB MIN @ 6 - 12 GHz D. DIELECTRIC WITHSTANDING VOLTAGE: 1000 VRMS, MIN. E. INSULATION RESISTANCE: 10,000 M ^ MIN MECHANICAL: A. DURABILITY: 500 CYCLES MIN. B. TEMPERATURE RANGE: -30 $ C TO +85 $ C 4. ENVIRONMENTAL: A. THERMAL SHOCK PER MIL-STD-202 METHOD 107 TEST CONDITION B (EXCEPT HIGH TEMP @200 $ C) B. VIBRATION: MIL-STD-202 METHOD 204 TEST CONDITION B C. SHOCK: MIL-STD-202 METHOD 213 TEST CONDITION B D. CORROSION: MIL-STD-202 METHOD 101 TEST CONDITION B 5% SALT SOLUTION 5. PACKAGING: A. QUANTITY: SINGLE PACK B. MARKING: BAG TO BE MARKED: "AMPHENOL RF, 34-1127-12G DATE CODE U.S. PATENT NO. 7,553,177" THIRD ANGLE PROJ. REV DESCRIPTION A 6 [.236 ] CENTER CONDUCTOR REVISIONS DATE RELEASE TO MFG. 02-Jan-19 ECN APPR 10125 SV 8,35 [.33 ] BRAID FOIL DIELECTRIC 6. CABLE ASSEMBLY INSTRUCTIONS: A. TRIM CABLE AS SHOWN. B. CRIMP CONTACT TO CABLE CENTER CONDUCTOR WITH .068" SQUARE DIE C. CRIMP FERRULE WITH .324" HEX STUD LOCATING AND INSTALLATION REMOVAL TOOL GROOVES 7. SHOWS CABLE ENTRY DIMENSIONS. SCALE 2.500 RECOMMENDED CABLE STRIPPING DIMENSIONS 7 REF [.276 ] 9,1 REF [.358 ] 9,5 REF [.37 ] 7,5 REF [.30 ] 1,4 8 [.055 ] 5,9 8 [.23 ] 1,4 8 [.055 ] 2,1 REF [.08 ] 8,5 8 [.33 ] 2,5 REF [.10 ] 17,23 REF [.678 ] INTERFACE PER 349-50820 SERIES : HD-BNC PLUG 12,7 REF [.50 ] PROTECTED UNDER U.S. PATENT # 7,553,177 UNLESS OTHERWISE SPECIFIED, DIMENSIONS ARE IN METRIC AND TOLERANCES ARE:
