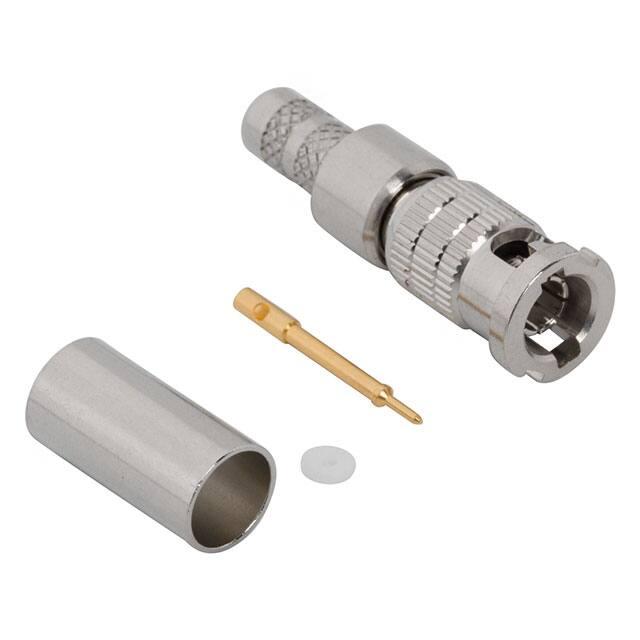

034-5042

NOTES: 1. 2. THIRD ANGLE PROJ. MATERIALS AND FINISHES: BODY-REAR, FERRULE, RETAINING RING, WASHER & BAYONET SLEEVE - BRASS, NICKEL PLATING OUTER CONTACT - BeCu, NICKEL PLATING CONTACT - PHOSPHOR BRONZE, GOLD PLATING SPRING - STAINLESS STEEL, PASSIVATED GASKET - FLURO SILICONE RUBBER, BLACK INSULATOR & INSULATOR DISC - PTFE, NATURAL REV 5. PACKAGING: A. QUANTITY: SINGLE PACK B. MARKING: BAG TO BE MARKED: "AMPHENOL RF, 34-5042 DATE CODE" U.S. PATENT NO. 7,553,177" A 7. CABLE ASSEMBLY INSTRUCTIONS: A. TRIM CABLE AS SHOWN. B. SLIDE FERRULE ONTO CABLE. C. SLIDE INSULATOR DISC ONTO CABLE CENTER CONDUCTOR. D. SOLDER CENTER CONTACT TO CABLE CENTER CONDUCTOR. E. CRIMP FERRULE WITH .213" HEX. 3. MECHANICAL: A. DURABILITY: 500 CYCLES MIN. B. TEMPERATURE RANGE: -65 $ C TO +165 $ C 4. ENVIRONMENTAL: A. THERMAL SHOCK PER MIL-STD-202 METHOD 107 TEST CONDITION B (EXCEPT HIGH TEMP @200 $ C) B. VIBRATION: MIL-STD-202 METHOD 204 TEST CONDITION B C. SHOCK: MIL-STD-202 METHOD 213 TEST CONDITION B D. CORROSION: MIL-STD-202 METHOD 101 TEST CONDITION B 5% SALT SOLUTION DATE RELEASE TO MANUFACTURING 08-Oct-18 ECN 09281 APPR CJV 0,62 [.024 ] DIELECTRIC 2,6 [ .102] CENTER CONDUCTOR 8. SHOWS CABLE ENTRY DIMENSIONS. REVISIONS 8,06 [ .317 ] BRAID 6. HIGH DENSITY INSTALLATION/REMOVAL TOOL: 227-T2000. ELECTRICAL: A. IMPEDANCE: 50 OHM B. FREQUENCY RANGE : DC - 6 GHz C. RETURN LOSS: -25 dB MAX. DC - 3 GHz -20 dB MAX. 3 - 6 GHZ D. DIELECTRIC WITHSTANDING VOLTAGE: 1000 VRMS, MIN. E. INSULATION RESISTANCE: 10,000 M ^ MIN DESCRIPTION SCALE 2.500 STUD LOCATING AND INSTALLATION/ REMOVAL TOOL GROOVES RECOMMENDED CABLE STRIPPING DIMENSIONS 24,95 REF [.982 ] 8 8 3,1 [.122 ] 8 1 [.039 ] 1,1 [.043 ] 8 5,6 [.220 ] 7,75 REF [.305 ] CONTACT INTERFACE PER HD-BNC PLUG 50 OHM 6,8 REF [.268 ] INSULATOR DISC 4,27 REF [ .168 ] TYP(2) CUSTOMER OUTLINE DRAWING PROTECTED UNDER U.S. PATENT # 7,553,177 UNLESS OTHERWISE SPECIFIED, DIMENSIONS ARE IN METRIC AND TOLERANCES ARE:
