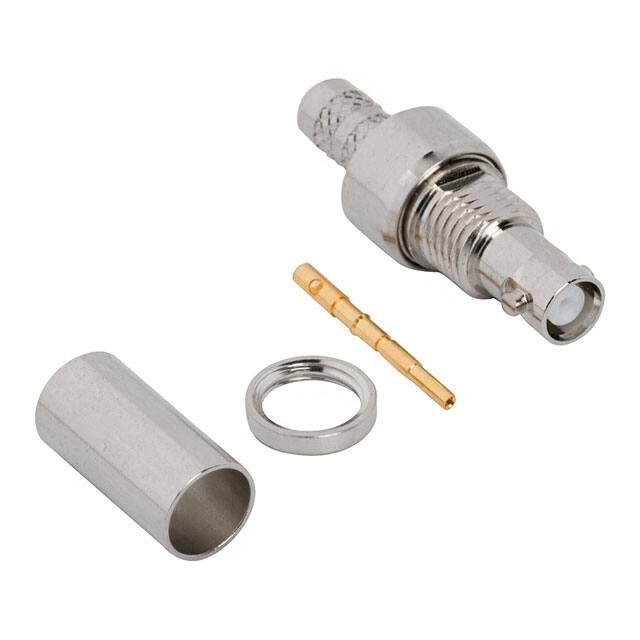

034-5063

NOTES: THIRD ANGLE PROJ. REV 5. PACKAGING: A. QUANTITY: SINGLE PACK B. MARKING: BAG TO BE MARKED: "AMPHENOL RF, 34-5063 , DATE CODE U.S. PATENT NO. 7,553,177" 1. MATERIALS AND FINISHES: BODY, BODY REAR, NUT & FERRULE - BRASS, NICKEL PLATING CONTACT - BeCu, GOLD PLATING INSULATOR - PTFE, NATURAL 2. ELECTRICAL: A. IMPEDANCE: 50 OHM B. FREQUENCY RANGE: DC - 6 GHz C. RETURN LOSS : -25 dB MAX TO 3 GHz -20 dB MAX TO 6 GHz D. DIELECTRIC WITHSTANDING VOLTAGE : 500 VRMS DESCRIPTION A REVISIONS DATE RELEASE TO MANUFACTURING ECN 08-Oct-18 09281 APPR CJV 6. AMPHENOL SPANNER WRENCH 227-1490 REQUIRED TO MOUNT CONNECTOR TO PANEL. 7. CABLE ASSEMBLY INSTRUCTIONS: A. TRIM CABLE AS SHOWN. B. SOLDER CENTER CONTACT TO CABLE CENTER CONDUCTOR. C. CRIMP FERRULE WITH .213" HEX. 3. MECHANICAL: A. DURABILITY: 500 CYCLES MIN. B. TEMPERATURE RANGE : -65°C TO +165°C 8 SHOWS CABLE ENTRY DIMENSIONS. 4. ENVIRONMENTAL: A. THERMAL SHOCK PER MIL-STD-202 METHOD 107 TEST CONDITION B (EXCEPT HIGH TEMP @200 $ C) B. VIBRATION: MIL-STD-202 METHOD 204 TEST CONDITION B C. SHOCK: MIL-STD-202 METHOD 213 TEST CONDITION B D. CORROSION: MIL-STD-202 METHOD 101 TEST CONDITION B 5% SALT SOLUTION 8,41 [ .331 ] BRAID 0,77 [ .030 ] DIELECTRIC SCALE 6,6 [.260 ] 2.500 2,45 [ .096] CENTER CONDUCTOR 6 [.236 ] RECOMMENDED CABLE STRIPPING DIMENSIONS RECOMMENDED MOUNTING HOLE DIMENSIONS 24,83 REF [.978 ] 11,25 REF [.443 ] 6,51 REF [.256 ] 5.80 REF [.288] 'D' FLAT 8 8 3,1 [.122 ] 1,1 [.043 ] 8 INTERFACE PER HD-BNC JACK 50 OHM 5,6 [.220 ] CONTACT 1/4-36UNS-2A THREAD 3 REF [.118 ] MAX PANEL THICKNESS 8,6 REF [.339 ] FERRULE 4,27 REF [ .168 ] TYP(2) CUSTOMER OUTLINE DRAWING PROTECTED UNDER U.S. PATENT # 7,553,117 UNLESS OTHERWISE SPECIFIED, DIMENSIONS ARE IN METRIC AND TOLERANCES ARE:
