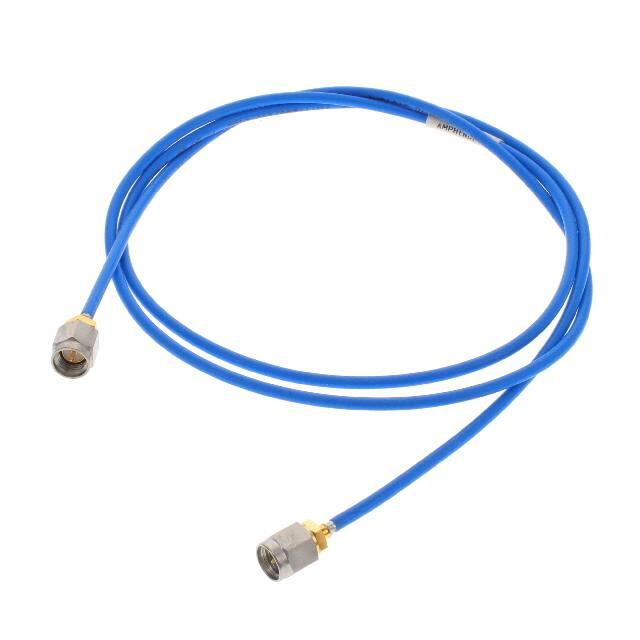

095-902-451-036

1. REVISIONS THIRD ANGLE PROJ. NOTES: REV MATERIALS AND FINISHES: DESCRIPTION A DATE RELEASE TO MFG 11/16/15 ECO 50824 APPR VK SMA STR PLUG - STAINLESS STEEL, GOLD PLATING CABLE - TFLEX 405 2. ELECTRICAL: A. IMPEDANCE: 3. 50 OHM SCALE PACKAGING: 0.600 A. QUANTITY: SINGLE PACK B. MARKING: BAG TO BE MARKED "AMPHENOL RF, 95-902-451-XXX AND DATE CODE". LENGTH "L" (SEE TABLE) MARKING: AMPHENOL RF INTERFACE PER MIL-STD-348 SERIES: SMA PLUG TYP(2) 1/4" [6.35] HEX LENGTH "L" IN INCHES [METERS] INSERTION LOSS MAX (dB) 95-902-451-007 - 7.00 [0.178] 0.90 95-902-451-009 - 95-902-451-010 95-902-451-012 95-902-451-018 X CONTINUITY X VSWR X HI-POT: 500 VRMS X INS. LOSS : SEE TABLE - 95-902-451M025 9.00 [0.229] 9.84 [0.250] - 10.00 [0.254] - 18.00 [0.457] - 12.00 [0.305] 95-902-451M050 95-902-451-036 - - 6.00 [0.152] 8.00 [0.203] - 95-902-451-024 X FREQUENCY : DC TO 18 GHz 1/4" [6.35] HEX PART NUMBER (METRIC) 95-902-451-008 DESIGN REQUIREMENTS: LENGTH TABLE PART NUMBER (IMPERIAL) 95-902-451-006 : 1.650 MAX. LOCATE APPROXIMATELY AT CENTER AS SHOWN - 95-902-451M100 19.69 [0.500] 24.00 [0.610] 36.00 [0.914] 39.37 [1.000] 0.80 1.00 1.10 1.15 1.15 1.30 1.90 2.00 2.40 3.40 3.70 CUSTOMER OUTLINE DRAWING OTHER UNLESS OTHERWISE SPECIFIED, DIMENSIO NS ARE IN INCHES AND TOLERANCES ARE: 2 PLACE DECIMAL 3 PLACE DECIMAL ANGLES NOTICE - These drawings, specifications, or other data (1) are, and remain the property of Amphenol corp. (2) must be returned upon request; and (3) are confidential and not to be disclosed to any person other than those to whom they are given by Amphenol Corp. the furnishing of these drawings, specifications, or other data by Amphenol Corp., or to any other person to anyone for any purpose is not to be regarded by implication or otherwise in any manner licensing, granting rights to permitting such holder or any other person to manufacture, use or sell any product, process or design, patented or otherwise, that may in any way be related to or disclosed by said drawings, specifications, or other data. ALL OTHER SHEETS ARE FOR INTERNAL USE ONLY MATERIAL SEE NOTES REFERENCE EAR # 6826 CONFIGURATION LEVEL: In Work FINISH DRAWN VIJI K DATE 15-Oct-15 ENGINEER VIJI K DATE 15-Oct-15 APPROVED K. CAPOZZI DATE 11/9/15 CAD FILE TITLE SMA STR PLUG TO SMA STR PLUG WITH ANTI-TORQUE BODY, USING TFLEX 405 CABLE, VARIOUS LENGTHS SCALE: 3.5:1.0 DWG SIZE B SHEET 2 OF 2 REV A Amphenol RF www.amphenolrf.com DRAWING NO. 95-902-451-XXX ITEM NO. 95-902-451-XXX PART NO. 95-902-451-XXX
