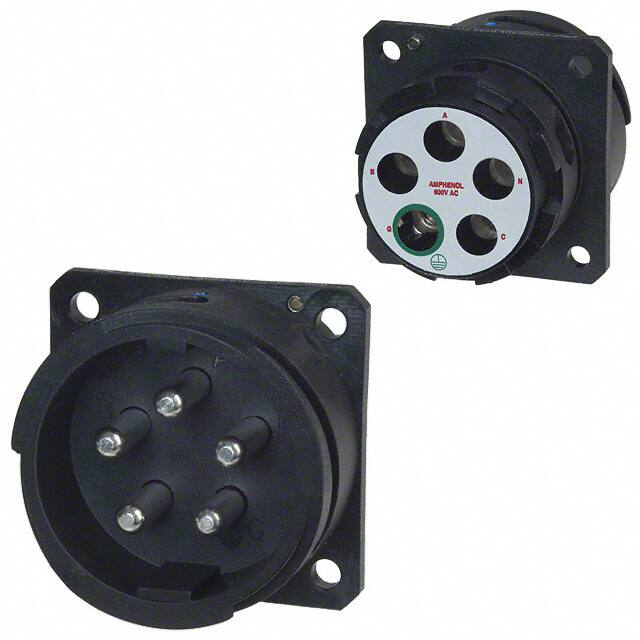

Product Data Sheet Amphenol Amphe -GTR Reverse Bayonet Connectors for Power Applications   No. 190 Amphenol introduces the new Composite GT series of connectors, with full worldwide approval from a major server manufacturer, for use as the environmental server power connector. Featuring a high-performance composite plug shell, coupling nut, receptacle, and hardware, this GT meets all of the specifications for high power process control and server applications. Additional features include the RADSOK® High Amperage Socket Contact Technology, enabling increased current ratings to 120A on individual contacts. The RADSOK (RADial SocKet) High Amperage, Low Insertion Force Socket Contact provides value to your purchasing, engineering, quality and manufacturing objectives. RADSOK technology is based upon a stamped and formed flat grid, uniquely twisted into a hyperbolic geometry to provide robust, high density contact to the mating pin contact. Most pin and socket technologies rely upon spring (beam element) properties of the contact Amphe-GTR – 4 Conductor elements, which tend to weaken over time. Unlike most other pin and socket solutions, RADSOK also utilizes the tensile strength properties of the flat, high conductivity alloy grid. This provides the high normal forces required for conductivity while also providing large conductive surface area. Correspondingly low voltage drop and low temperature rise are also achieved while maintaining low insertion forces. Compression (setscrew) wire termination to the 4/6AWG or 8/10AWG conductors allows easy field replacement of pin or socket contacts, or complete plug and receptacle assemblies, without requiring specialized tooling. Additional benefits of the GT Reverse Bayonet product include: • Quick positive coupling • Audible, tactile, & visual indication of coupling • Waterproof (IP67) • • • No lockwiring required High shock and vibration capabilities Silver plated contacts Technical Specifications: Connectors are listed to UL/CUL 2238 Standard, Control Number 19VP. The Amphe-GTR connectors utilize a standard PG adaptor watertight strain relief on the plug to achieve their IP67 seal rating. Size 4 RADSOK Contacts are individually rated to 120 Amperes continuous. Connector assemblies are current rated per the cross-reference table above. Insulation Resistance is rated at 1000 MΩ and Dielectric Withstanding Voltage is rated at 2000 VAC (RMS). The Composite GT is flammability rated to UL94V-0. 4.829 REF Plug Cable Range (See Tables) ∅ 2.626 REF Amphenol Receptacle 2.214 REF 2.248 ± .012 .947 ± .008 1.752 2 Places 2.183 ± .003 .158 ± .007 ∅ .207 ± .004 4 Conductors AIO Part Number Description Wire Range Rated Current Cable Range GT06PCM32-ARS-30(29R) GT06PCM32-ARS-40(29R) GT06PCM32-ARS-50(29) GT06PCM32-ARS-70(29OS) GT030PCM32-ARP-80 Plug Plug Plug Plug Receptacle 8-10 AWG 8-10 AWG 4-6 AWG 4-6 AWG 4-6 AWG 30 Amps (cont.) 40 Amps (cont.) 50 Amps (cont.) 70 Amps (cont.) 80 Amps (cont.) .510 - .582 .715 - .759 .809 - .905 1.000 – 1.185 N/A 5 Conductors AIO Part Number Description Wire Range Cable Range 10-610142-001 10-610142-002 10-610142-003 10-610142-004 10-610147-001 10-610147-002 Plug Plug Plug Plug Receptacle Receptacle 8-10 AWG 8-10 AWG 4-6 AWG 4-6 AWG 8-10 AWG 4-6 AWG .472 - .787 .708 - .984 .472 - .787 .708 - .984 N/A N/A For additional information on the GT Reverse Bayonet series of connectors, please ask for Catalog 12-024. For additional information on the Amphe-Power® family of connectors with RADSOK Technology, please ask for Catalog SL-391. For further information on your individual application requirements, contact: Amphenol Corporation Amphenol Industrial Operations 40-60 Delaware Avenue Sidney, New York 13838-1395 Phone: 1-607-563-5011 Fax: 1-607-563-5351 Internet: www.amphenol-industrial.com and www.radsok.com
