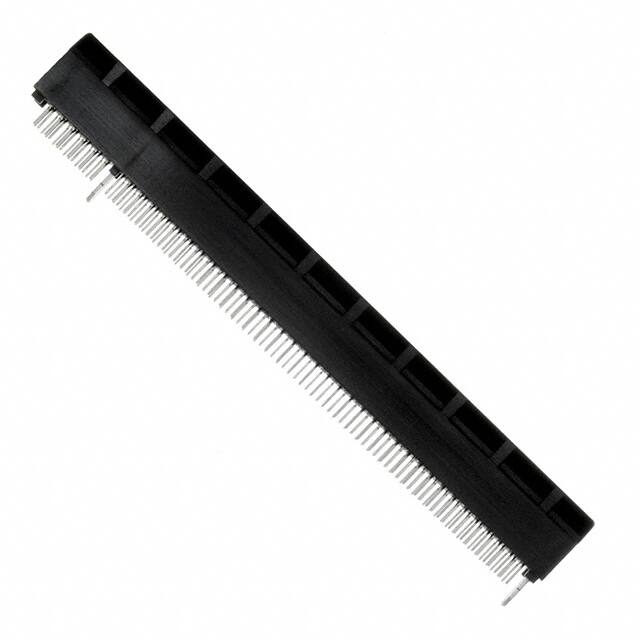

10018784-11203TLF

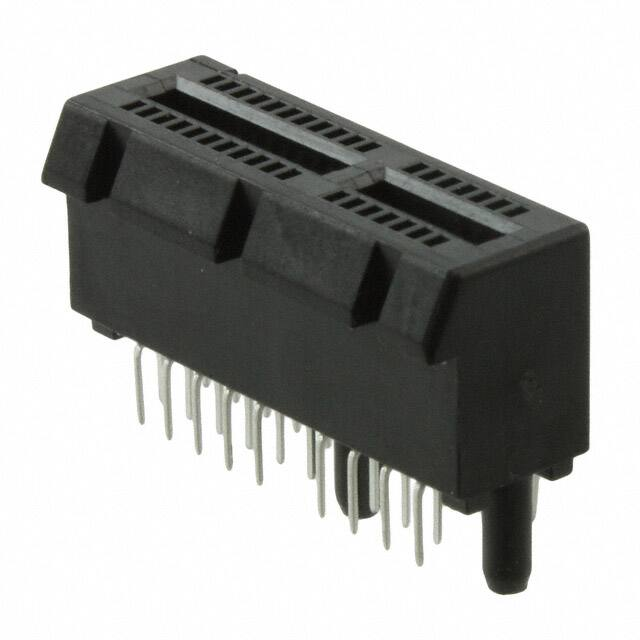

BOARD/WIRE-TO-BOARD CONNECTORS PCI EXPRESS® CARD EDGE CONNECTORS Extend differential signaling to 8.0GB/S for new generation systems OVERVIEW These 1.0mm pitch, vertical card edge connectors from FCI enable all generations of PCI Express® signaling in desktop PCs, workstations, and servers. The connector designs provide support for 2.5Gb/s (Gen1), 5.0Gb/s (Gen2), and the recent update to 8.0Gb/s (Gen3) per differential signal pair. The base connector family provides x1, x4, x8, or x16 link widths to suit different bandwidth requirements. The basic bandwidth (x1) version supports a single PCI Express lane and is typically used for I/O cards in desktop PCs. The x4 and x8 connectors provide 64 and 98 contacts, respectively, for server I/O. The high bandwidth versions (x16 lanes and higher) are used for applications that require even more bandwidth, such as graphics cards in desktop PCs or riser cards in servers. FCI’s expansive range of available PCI Express card edge connectors includes options for through-hole solder, press-fit, surface-mount, or straddle-mount termination. FEATURES & BENEFITS TARGET MARKETS/APPLICATIONS • B ase connector range offers 1, 4, 8, or 16 serial PCI Express links for different bandwidth requirements • O ptions for through-hole solder, press-fit, surface-mount, or straddle-mount termination • Data • Desktop PCs • Servers • Workstations • P ress-fit version provides a solderless alternative for termination to thick PCBs • Industrial • SHB Express™ backplanes per PICMG 1.3 spec • L arger 200, 230 (x24), and 280-position vertical connectors supply more lanes for server riser cards • E xpressModule™ versions provide an expanded lead-in window for blind-mate server applications • O ptions for rugged stand-alone retention mechanism or a x16 connector with annintegrated retention arm to secure graphics cards during shipping and handling • S traddle-mount connectors feature mounting ears for additional mechanical support and a molded post to assure proper alignment to the host PCB • RoHS-compliant connector versions are available 140410-BWB_pciexpresscard.indd 1 2014-4-10 11:48:19 PCI EXPRESS® CARD EDGE CONNECTORS PCI EXPRESS® VERTICAL CARD EDGE CONNECTORS, THROUGH-HOLE SOLDER Description Part Numbers 36 (x1), 64 (x4), 98 (x8), and 164 (x16) contact positions, reflow solder compatible 10018783 36 (x1), 64 (x4), 98 (x8), and 164 (x16) contact positions, wave solder compatible 10018784 98 positions for x8 card but fits on x16 motherboard footprint 10036767 200 positions 10054652 230 positions (x24) 10063960 280 positions, keyed for 280-position riser card, without side ridge 10027747 280 positions, keyed for x8 card or 280-position riser card, without side ridge 10037901 280 positions, keyed for 280-position riser card 10057596 280 positions, keyed for 230-position (x24) or 280-position riser card 10066356 280 positions, keyed for x16 card or 280-position riser card, without side ridge 10073481 PCI EXPRESS® GRAPHIC CARD RETENTION Description Part Numbers Stand-alone graphics card retention mechanism, green or blue 10042618 x16 connector with integrated retention arm on component side of add-in card 10083987 x16 connector with integrated retention arm on solder side of add-in card 10085429 PCI Express®, PCIe® and ExpressModule™ are trademarks of PCI-SIG® SHB Express™ is a trademark of PICMG® For more information, please contact: Communications@fci.com or visit us at www.fci.com 140410-BWB_pciexpresscard.indd 2 Disclaimer Please note that the above information is subject to change without notice. 2014-4-10 11:48:19 PCI EXPRESS® CARD EDGE CONNECTORS PCI EXPRESS® VERTICAL CARD EDGE CONNECTORS, SURFACE-MOUNT PCI EXPRESS® STRADDLE-MOUNT CARD EDGE CONNECTORS Description Part Numbers Description Part Numbers x1, x4, x8 and x16 with molded orientation posts 10061913 10125756 x1, x4, x8 and x16 without molded orientation posts 10076266 x1, x4, x8 and x16 for 1.57/2.0/2.08/2.31/2.36/ 2.4mm thick host PCB x1, x4, x8 and x16 for 2.30mm thick host PCB 10069690 x1, x4, x8 and x16 for 1.57mm thick host PCB 10025026 PCI EXPRESS® VERTICAL CARD EDGE CONNECTORS, PRESS-FIT EXPRESSMODULE VERTICAL CARD EDGE CONNECTORS Description Part Numbers Description Part Numbers 36 (x1), 64 (x4), 98 (x8), and 164 (x16) contact positions 10082378 10116975 36 (x1), 64 (x4), 98 (x8), and 164 (x16) contact positions. PCIe Gen1 10039755 140-position (x8 with storage extension), ExpressModule connector, press-fit 36 (x1), 64 (x4), 98 (x8), and 164 (x16) contact positions, ExpressModule type, surface-mount 10073228 For more information, please contact: Communications@fci.com or visit us at www.fci.com 140410-BWB_pciexpresscard.indd 3 Disclaimer Please note that the above information is subject to change without notice. 2014-4-10 11:48:22 PCI EXPRESS® CARD EDGE CONNECTORS TECHNICAL INFORMATION MATERIALS MECHANICAL PERFORMANCE • Contact base metal: Copper alloy • Durability rating: 50 cycles min. • Contact area finish: Gold over nickel • PCB insertion force: 1.15 N max. per contact pair • Solder area finish: Tin over nickel or tin-lead over nickel • PCB removal force: 0.15 N min. per contact pair • H ousing material: High-temperature thermoplastic (UL94V-0) for reflow soldering or thermoplastic (UL94V-0) for wave soldering. Color: Black or off-white SPECIFICATIONS • • Metal board locks: Copper alloy Express® Module Electromechanical Specification • For more information on the applicable PCI-SIG specifications, visit www.pcisig.com. ELECTRICAL PERFORMANCE • C ontact resistance: 30mΩ max initially with 10 mΩ max. change after environmental exposures • C urrent rating: 1.1A min. per pin for the 8 power pins and 8 nearest ground pins • Signal integrity summary • FCI • GS-12-1193 PCI Express® 3.0 Straddle Mount Connector Product Specification • GS-12-233 PCI Express® Connector Product Specification • GS-12-319 PCI Express® Press-Fit Connector Product Specification • T he part series shown on this datasheet support PCI Express high speed electrical requirements for 2.5Gb/s (PCIe® PCI Express® Card Electromechanical Specification • PCI • Board locks finish: Tin over nickel or tin-lead over nickel (PCIe® • Industry (PCIe® Gen1), 5.0Gb/s Gen2) and 8.0Gb/s Gen3) with the exception of those part series specifically noted as PCIe® Gen1 in in the part number tables. • GS-12-288 PCI Express® Retention Mechanism Product Specification • GS-12-390 PCI Express® Surface-Mount Connector APPROVALS & CERTIFICATIONS • UL and CSA approvals ENVIRONMENTAL • E IA-364-1000.01. The test groups/sequences and durations are derived from the following requirements: • Durability (mating/unmating) rating of 50 cycles • Field temperature: 65°C • Field life: Seven years • Temperature life (preconditioning): 92 hours at 105°C • Temperature life: 168 hours at 105°C PCI Express®, PCIe® and ExpressModule™ are trademarks of PCI-SIG® SHB Express™ is a trademark of PICMG® For more information, please contact: Communications@fci.com or visit us at www.fci.com 140410-BWB_pciexpresscard.indd 4 BWBPCIEXCE0414EA4 • Mixed flowing gas: 10 days Disclaimer Please note that the above information is subject to change without notice. 2014-4-10 11:48:22
