10029449-111RLF

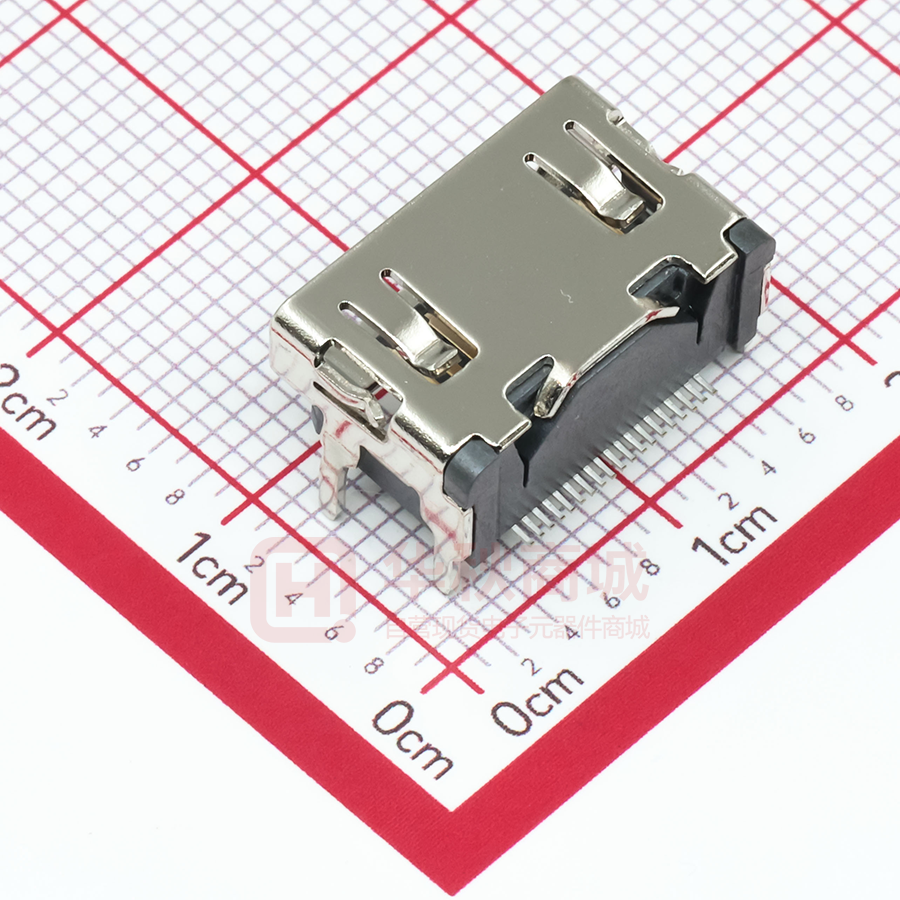

INPUT/OUTPUT CONNECTORS HDMI RECEPTACLES OVERVIEW HDMI (High-Definition Multimedia Interface) is the nextgeneration interface replacing the existing DVI connector. It is commonly seen in consumer electronics products, such as digital television, DVD players and set-top boxes. HDMI is backwards compatible with DVI and is much smaller and more user-friendly. The connector system supports the transmission of uncompressed video and audio data along a single cable at 5Gb/s. The right angle version is available with full surface mount (SMT) solder tails and pegs, or SMT solder tails and through hole pegs, with or without flange and plating contact options. In addition, a straight version is available with enhanced EMI shielding performance. FEATURES & BENEFITS TARGET MARKETS/APPLICATIONS • Choice of partial SMT/PiP or full SM mounting style • Consumer • LCD displays • Digital TV • Set-top box • DVD players and recorders • Entertainment PCs • Right angle and straight versions • Metal shell for better EMI shielding protection, especially for the straight version • Excellent durability: 10,000 cycles • RoHS compliant • Low impedance mismatch • Straight version features additional grounding pins for enhanced EMI performance HDMI RECEPTACLES TECHNICAL INFORMATION MATERIALS MECHANICAL PERFORMANCE • Housing: Copper alloy • Mating force: 44.1 N max. • Shell: Copper alloy • Unmating force: 9.8-39.2 N • Plating: • Contact area: Gold over nickel • Solder tail area: Pure tin over nickel • Shell: Nickel • Durability cycling: 10,000 cycles • 19 pins for 10029449 series and 21 pins (2 extra dummy pins) for 10078837 series • Contact pitch: 0.5mm ELECTRICAL PERFORMANCE SPECIFICATIONS • Electrical withstanding voltage : 500V AC • Insulation resistance: Unmated> 100MΩ; Mated> 10MΩ • GS-12-309 product specification • Contact resistance: 30mΩ max. APPROVALS AND CERTIFICATIONS • Contact current rating: 0.5A min. • RoHS compliant • Voltage rating: 40V AC max. • HDMI association 1.3a certification ENVIRONMENTAL PACKAGING • Operating temperature range: -55 °C to 85 °C • Tape & Reel or tray • Humidity:
