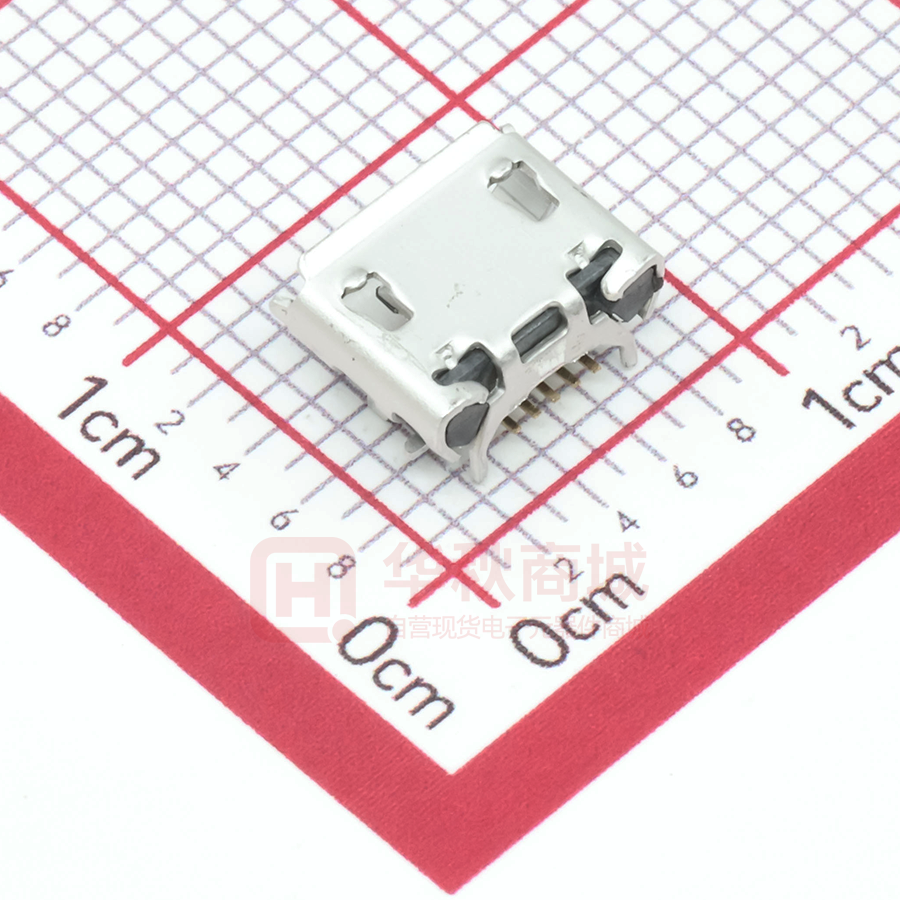

10103594-0001LF

INPUT/OUTPUT CONNECTORS MICRO USB 2.0 CONNECTORS OVERVIEW Extremely small high reliability connectors comply with physical, electrical and environmental requirements of Micro USB standard (USB 2.0). Space receptacles are available in a wide variety of mounting and termination configurations, permitting their use in various applications. FEATURES BENEFITS • More compact than Mini USB • Highly suitable for interconnect solutions required by mobile phone makers • Offers standard, mid-mount, and reverse options • Flexible application in various situations • Specified for up to 10,000 insertion cycles • Ensures maximum receptacle-to-PCB retention • Replaces the need for adapters and power • Allows convenient recharging and communication • RoHS compliance and Lead-free • Meets environmental, health and safety requirements • Available in UL94V-0 flammability • High flammability rating • Supports On-The-Go (OTG) • Better accessibility and convenience for users • Full metal shielding • For EMI/ESD protection MICRO USB 2.0 CONNECTORS TECHNICAL INFORMATION MATERIALS SPECIFICATIONS • Contact: Copper Alloy • GS-12-641 product specification • Contact Area: 30µin. Au over nickel PACKAGING • Solder Tail Area: Au flash over nickel • Tape & Reel • Shield: Stainless steel • Pure Tin Plating: 10104110, 10104111, 10103592, 10103594 • Matte Tin Plating: 10118192, 10118193 and 10118194 • Packing specification GS-14-1461, GS-14-1465 and GS-14-1466 TARGET MARKETS/APPLICATIONS • Nickel Plating: 10103593 • Housing: High temperature thermoplastic resin • Black color for B-type • Consumer • Camcorder • Gray color for AB-type • UL94V-0 • Smartphone • MP3 Player • Bluetooth Headphone ELECTRICAL PERFORMANCE • Smartwatch • L ow Level Contact Resistance: Initial 30 mΩ max.; after ∆R=±10mΩ (Test condition: EIA-364-23) • Tablet • Insulation Resistance: Initial 1000MΩ min.; after 100MΩ min. (Test condition: EIA-364-21) • Laptop coolers • Dielectric Withstanding Voltage: 100V AC for 1 minute; no breakdown (Test condition: EIA-364-20) • Reader • GPS • Communication & Industrial • Field PC • Satellite Phone • Temperature Rise: 30°C max. (Test condition: EIA-364-70) ENVIRONMENTAL • Functional Temperature Range: • -55°C to +85°C, under test connectors mated without damage MECHANICAL PERFORMANCE • Mating/Un-mating Force (Initial) • Durability • Contact Resistance: ∆R= ±10mΩ max. • Appearance: No breakdown • Mating Cycles: 10,000 cycles at max. rated of 200 cycles per hour • Test Condition: EIA-364-09 For more information, please contact: Communications@fci.com or visit us at www.fci.com Disclaimer Please note that the above information is subject to change without notice. MICRO USB 2.0 CONNECTORS PART NUMBERS Part Numbers Micro USB 2.0 B Receptacle Reverse, DIP 10103592-0001LF Micro USB 2.0 B Receptacle STD, Mid-mount 10103593-0001LF Micro USB 2.0 B Receptacle STD, SMT+ DIP 10103594-0001LF Micro USB 2.0 B Receptacle STD, SMT 10104110-0001LF Micro USB 2.0 B Receptacle STD, SMT Micro-USB A/B Receptacle STD 10104111-0001LF Micro USB 2.0 B Receptacle STD, SMT 10118192-0001LF Micro USB 2.0 B Receptacle STD, 2 DIP Legs 10118193-0001LF Micro USB 2.0 B Receptacle STD, 4 DIP Legs 10118194-0001LF INOMICROUSB0215EA4 Description For more information, please contact: Communications@fci.com or visit us at www.fci.com Disclaimer Please note that the above information is subject to change without notice.
