10118139-001LF

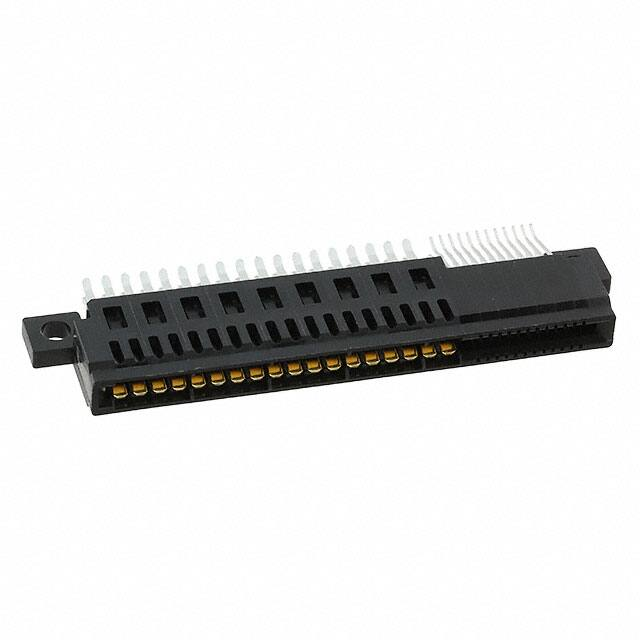

POWER SOLUTIONS HIGH POWER CARD EDGE (HPCE®) Next Generation Power Card Edge Connector OVERVIEW The High Power Card Edge (HPCE®) connector is a next generation power card edge connector for demanding applica-tions requiring high linear current density and low power loss. HPCE offers a low profile height (­7.50mm) and is based on very cost effective and highly reliable stamped-and-formed power contact technology similar to other power solutions from FCI. HPCE® incorporates an innovative power contact and housing design that permits a more compact and lower profile package for demanding AC and DC power supply and/or add-in card applications. HPCE’s low profile height (for maximized airflow), significantly increased linear current density and low contact resistance characteristics are ideal for next generation 1U/2U servers, storage enclosures, telecommunications equipment and datacom/networking equipment. HPCE® is available with power and signal contacts integrated into a single molded housing for power distribution and power control. Similar to other FCI power solutions, HPCE® is modularly tooled making the product highly configurable in terms of the number and placement of the power and signal contacts for custom power needs. HPCE® is rated to 9A per power contact beam (with multiple power contacts fully energized) without exceeding a 30°C temperature rise in still air. The innovative design minimizes the connector footprint and the robust housing includes touch-proof safety features as well as polarization to ensure proper mating. Vertical and right angle and straddle mount options are available to accommodate various system architectures. FEATURES & BENEFITS • Current rating to 9A/power contact beam (with multiple power contacts fully energized) without exceeding a 30°C temperature rise in still air • Low profile height (2.8mm for straddle mount; 7.50mm for right angle) maximizes airflow for effective system cooling • One-piece assembly enables cost-effective power delivery for 1U and 2U power supplies or power distribution applications • Highly vented housing design maximizes heat dissipation • Vertical, right angle and straddle mount options are available with both power contacts for power distribution and signal contacts for power control • Number and placement of power and signal contacts are highly configurable for custom power needs • Polarized housing option ensures proper mating board orientation • Plastic housing features and mounting ear options are available for polarization to the host PCB as well as to secure the connector during the wave solder process TARGET MARKETS/APPLICATIONS • AC/DC pluggable power supplies in data, telecom & datacom/networking equipment • Industrial PCs • Industrial controls & instrumentation • Medical HIGH POWER CARD EDGE (HPCE®) TECHNICAL INFORMATION MATERIALS MECHANICAL PERFORMANCE • Housing: High-temperature thermoplastic, black • Contact wipe distance • Power contacts: 5.27mm • Signal contacts: 4.00mm • Flammability rating: UL94V-0 • Contact material: High-conductivity copper alloy • Durability: 200 mating cycles • Contact finish: • Separable interface: 30μin (0.76μm) performance-based plating over nickel  • Board connector solder tail area: Matte tin over nickel ELECTRICAL PERFORMANCE SPECIFICATIONS • Production specification: GS-12-604 • Application specification: GS-20-128 APPROVAL & CERTIFICATIONS • Current rating: 9A/power contact beam at 30°C T-rise in still air (multiple power contacts fully energized) • UL • CSA • Operating voltage • Power contacts: 250V max. (fully loaded)   • Signal contacts: 30V max. (fully loaded) • TUV • RoHS information, this product is compatible according to the European Union Directive 2002 (95IEC) • Dielectric withstanding voltage • Power contacts: 1,000V   • Power contacts: 500V PACKAGING • Insulation resistance • Power contacts: > 5,000MΩ initially as well as after environmental exposure  • Signal contacts: > 500MΩ initially as well as after environmental exposure • Trays TEMPERATURE RISE CURVE • Contact resistance • Power contacts: > ­0.6mΩ initially as well as after environmental exposure  • Signal contacts: ­ 20mΩ initially as well as after environmental exposure ENVIRONMENTAL Current rating information is in still air (no air flow) with multiple contacts energized unless otherwise noted • Operating temperature: -55°C to 105°C PART NUMBERS Description Part Number Vertical Solution Orientation Key 56 P + 12 S No Right Angle Solution Hold Down Orientation Key 56 P + 12 S No No 10096926-002LF No 10096926-004LF Straddle Mount Solution Mounting Ears 36 P + 24 S For more information, please contact: Communications@fci.com or visit us at www.fci.com Front Rear Orientation Key No No 10096926-002LF Disclaimer Please note that the above information is subject to change without notice. PWRHPCE0613EA4 56 P + 12 S 10088418-002LF
