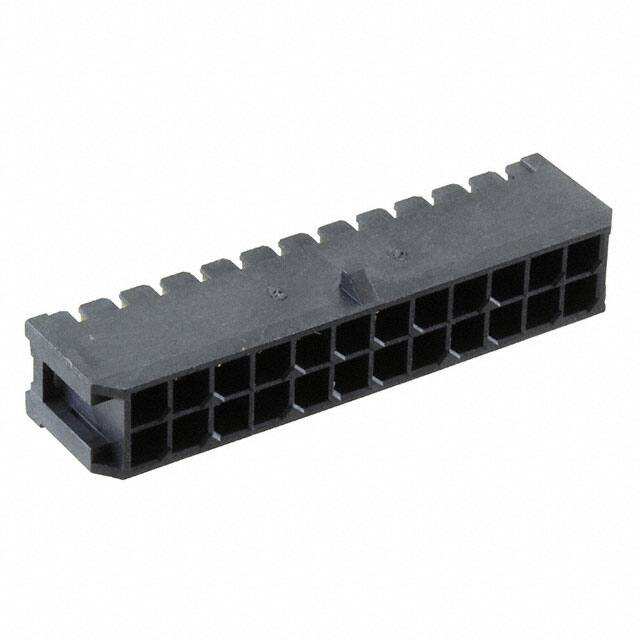

10127720-242LF

Minitek® Pwr 3.0 Connector System Dual Row & Single Row COMPACT, ROBUST AND VERSATILE Minitek® Pwr 3.0 is a flexible and comprehensive solution designed for power application with current rating up to 5A per circuit. It is available in 2 to 24 circuits for dual row and 2 to 12 circuits for single row. §§Solutions for Wire-to-Board and Wire-to-Wire applications §§Low insertion force for installation of crimped terminal makes it easy to use §§Polarized mating geometry prevents mismatching §§Fully isolated terminals prevents terminals from damage §§Blind mating interface (BMI) option in vertical, through hole type for dual row. 8, 12 and 14 positions available TARGET MARKETS FEATURES BENEFITS §§Low insertion force for installation of crimped terminal §§Easy to use §§Fully isolated terminals §§Prevents terminals from potential damage during operation §§Positive locking on housing with low thumb latch operation §§Ensures secured mating retention §§Fully polarized housings §§Prevents accidental mismating §§Scoop-proof housings §§Ensures terminals and header pins are not damaged for angled mating §§High retention force in housing §§Well secured terminals in housing §§Glow wire compliant option §§Complies with International Standard IEC 60335-1 for household appliances §§BMI option §§Allows ± 2.54mm gatherability for blind mating §§UL94V-0 flammability rated LCP material §§High flammability rating §§RoHS compliant and lead-free §§Meets environmental, health and safety requirements www.amphenol-icc.com Amphenol Information Communications and Commercial Products Minitek® Pwr 3.0 Connector System TECHNICAL INFORMATION MATERIAL SPECIFICATION §§ Board Connector: Brass with optional Tin and §§ Amphenol Product Specification: GS-12-1177 and GS-12-1374 Gold Flash plating §§ Housing: LCP & Nylon, Black, UL94 V-0 §§ Crimping Terminal: Phosphorus Bronze with optional Tin and Gold Flash plating MECHANICAL PERFORMANCE §§ Terminal Insertion Force: 4.5N max. §§ Terminal Withdrawal Force: 2N min. before durability, 1.5N min. after durability §§ Amphenol Application Specification: GS-20-0399 §§ Amphenol Packaging Specification: GS-14-2359 ENVIRONMENTAL §§ Operating Temperature: -40ºC to +105ºC *Includes 30ºC terminal temperature rise at rated current TOOLING INFORMATION §§ Ratchet Hand Crimping Tool: 10129483-001LF §§ Durability: 100 mating cycles §§ Terminal Extraction Tool: 10129274-030LF §§ Wire Pullout Force: Refer to product TARGET MARKETS/APPLICATIONS specifications ELECTRICAL PERFORMANCE §§ Low Level Contact Resistance: 20mΩ max. §§ Insulation Resistance: 1000MΩ min. §§ Voltage Rating: 250Vrms §§ Current Rating: 5A/contact. Refer to product specifications for higher current application §§ Dielectric Withstand Voltage: 1000VAC §§ Temperature Rise: 30°C max PACKAGING §§ PCB Header: Tray §§ Crimping Housing: Bag §§ Terminal: Reel APPROVALS & CERTIFICATION §§ Dual Row: UL E66906 & E467317 1U Rack Box Customer Premises Equipment Generic Telecom Box Interface Converter WiMax Box Air Conditioner Microwave Oven Refrigerator Set Top Box Blade Server Desktop PC and Motherboard HDD Application Rack-Mount Server Server-Orthogonal Configuration Defibrillator Hospital Bed Patient Monitor Ultrasound Equipment Chemical Detection System Radar Equipment §§ Single Row: UL pending §§ Glow Wire Ignition Temperature (GWIT) per IEC 60695-2-13 §§ Glow Wire Flammability Index (GWFI) per IEC 60695-2-12 www.amphenol-icc.com Disclaimer Please note that the above information is subject to change without notice. Minitek® Pwr 3.0 Connector System PART NUMBERS Type Dual Row Single Row Part Numbers Right angle PCB header, through hole 10127720 Vertical PCB header, through hole 10127721 Receptacle housing 10127716 Header housing 10127717 Right angle PCB header, SMT 10137924 Right angle PCB header, DIP boardlock 10137925 Vertical PCB header, SMT 10137926 Vertical PCB header, DIP boardlock 10137927 Vertical PCB header, through hole (BMI) 10138980 Right angle PCB header, through hole 10136654 Right angle PCB header, SMT tail & hold down 10136655 Vertical PCB Header, through hole 10136656 Right angle PCB header, SMT tail & DIP boardlock 10137867 Receptacle housing 10136653 Receptacle terminal (post-plated solution) 10127718 Receptacle terminal (pre-plated solution) 10134160 Header terminal 10127719 BWBMPWR300318EA4 Applicable for both types Description www.amphenol-icc.com Disclaimer Please note that the above information is subject to change without notice.
