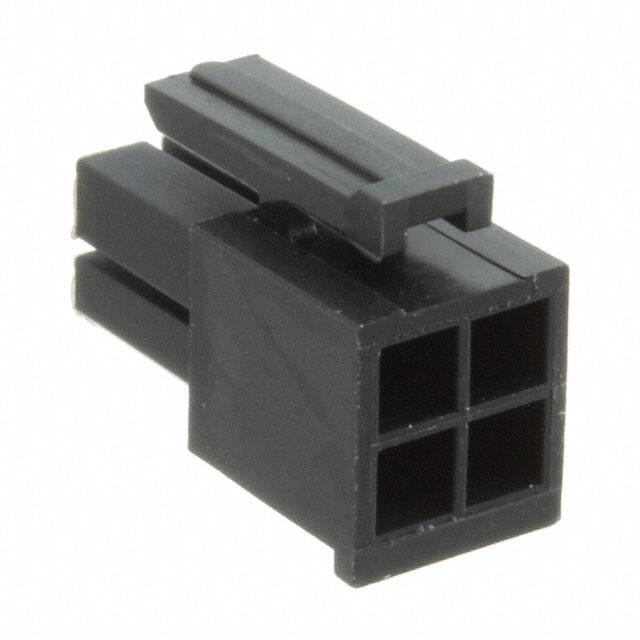

10142707-04LF

Minitek® Pwr 5.7 Connector System 5.70MM COMPREHENSIVE SOLUTION WITH CURRENT RATING UP TO 23A Minitek® Pwr 5.70mm is a flexible and comprehensive solution for power application with high current rating up to 23A per contact and wire gauge range from 16 – 12AWG for wire-to-board application. Minitek® Pwr 5.70mm features polarized mating geometry, this helps to prevent mis-mating. It offers a wide operating temperature, ranging -40°C to 105°C, making it suitable for a wide range of applications. The scoop proof housing prevents terminals from damage. It is available in 2 to 12 circuits for dual row. § High current rating up to 23A per contact § Solution for Vertical & Right Angle Through Hole § Solution for wire-to-board TARGET MARKETS FEATURES BENEFITS § High current alloy material used for contact § Rated up to 23A per contact § Positive locking on housing with low thumb latch operation § Ensures secured mating retention § High retention force in housing § Well secured terminal in housing § Post-plated terminal § Prevents environmental corrosion such as salt spray and gas corrosion § Glow wire compliant § Complies with International Standard IEC 60335-1 for household appliances § UL94V-0 flammability rated LCP material § High flammability rating § Halogen-free resin material § Meets environmental standards § RoHS compliant and lead-free § Meets environmental, health and safety requirements www.amphenol-icc.com Amphenol Information Communications and Commercial Products Minitek® Pwr 5.70 Connector System TECHNICAL INFORMATION MATERIAL APPROVALS & CERTIFICATION § Board Connector: High-conductivity copper with optional tin § UL approval: E66906 and gold plating § TUV approval: B171234414032 § Header Housing: LCP, black & natural, UL 94V-0 § Receptacle Housing: Nylon 66, black & natural, UL 94V-0 & UL 94V-2 § Crimping Terminal: High-conductivity copper with optional tin and gold plating SPECIFICATION § Amphenol Product Specification: GS-12-1405 § Amphenol Packaging Specification: GS-14-2595 § Amphenol Application Specification: GS-20-0687 MECHANICAL PERFORMANCE ENVIRONMENTAL § Mating Force: § Operating Temperature Range: § Tin plated: 6.8N § Gold Plated: -40°C to 120°C § Gold plated 6.0N per circuit max. § Tin Plated: -40°C to 105°C § Unmating Force: TARGET MARKETS/APPLICATIONS § Tin plated: 6.5N § Gold plated: 5.6N per circuit max. 1U Rack Box Customer Premises Equipment Generic Telecom Box Interface Converter WiMax Box § Durability: § Tin plated: 25 cycles § Gold plated: 200 cycles Air Conditioner Microwave Oven Refrigerator Set Top Box ELECTRICAL PERFORMANCE § Low Level Contact Resistance: 2mΩ max. (Initial) § Insulation Resistance: 1000MΩ min. Blade Server Desktop PC and Motherboard HDD Application Rack-Mount Server Server-Orthogonal Configuration § Voltage Rating: 600V AC (RMS)/DC § Contact Resistance: Tin plated 10mΩ / gold plating 5mΩ max. § Current Rating: Up to 23A/contact § Dielectric Withstand Voltage : 2200V Defibrillator Hospital Bed Patient Monitor Ultrasound Equipment AC PACKAGING § PCB Header: Tray/tape and reel Chemical Detection System Radar Equipment § Receptacle Housing: Bag § Crimping Terminal: Reel www.amphenol-icc.com Disclaimer Please note that the above information is subject to change without notice. Minitek® Pwr 5.70 Connector System PART NUMBERS Type Dual Row Terminals Description Product Series Receptacle Housing (UL 94 V-2) 10142707 Vertical Through Hole Header 10142708 Right AngleThrough Hole Header 10146997 Receptacle Housing (UL94 V-0) 10158453 Receptacle Terminal 10158070 TOOLING INFORMATION APPLICATORS Terminal Part Number AWG Range Semi-Auto Crimping Machine Fully-Auto Pneumatic Crimping Applicator 10158070-101LF 10158070-111LF 10158070-121LF 10158070-131LF 14 AWG 10160975-001 10161844-001 10161845-001 16 AWG 10160975-002 10161844-002 10161845-002 12 AWG 10160975-003 10161844-003 10161845-003 10158070-102LF 10158070-112LF 10158070-122LF 10158070-132LF Fully-Auto Mechanical Crimping Applicator HAND CRIMP TOOL Terminal Part Number AWG Range Hand Crimp Tool Part Number 12 AWG 10158070-1XXLF 14 AWG 10160974-001 BASICSMPWR571021EA 16 AWG www.amphenol-icc.com Disclaimer Please note that the above information is subject to change without notice.
