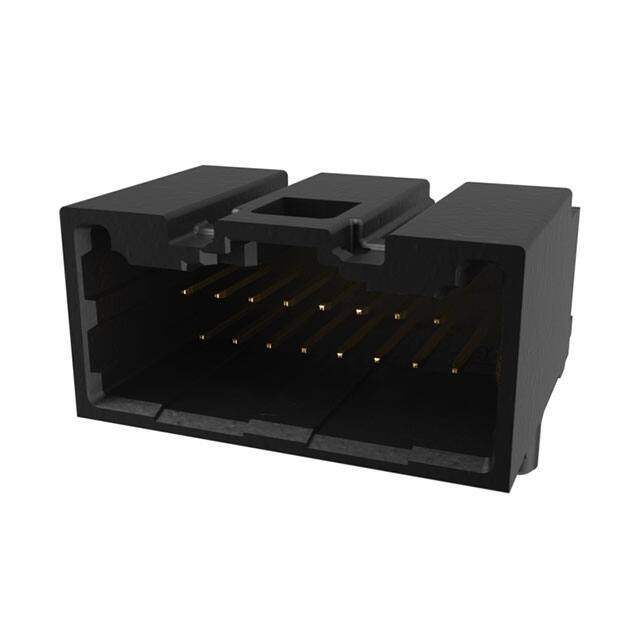

WireLock® MORE RELIABILITY LOW MATING FORCE AUTOMOTIVE GRADE CONNECTOR SYSTEM WireLock® is a 1.80mm pitch wire-to-board connector system. It’s compact design addresses the growing need for space saving automotive-grade connectors. WireLock® is a double row connector system offering four coding types with different colors. The connector has nominal current carrying capacity of 3A and supports cable wire gauge from 22AWG to 26AWG. WireLock® is available in 10 to 40 positions in double row with vertical and horizontal TH and SMT configurations. § USCAR-2 V2 compatible § Reflow tin plated reduce mating force § Four different coding with different colors visual TARGET MARKETS mismatching § Position from 10 to 40 § Terminal Position Assurance (TPA) § Connector Position Assurance (CPA) FEATURES BENEFITS § Reflow Tin plating process for terminal § Low mating and un-mating force § Current rating 3A with each contact § Meet higher power Amps performance § Terminal-Position-Assurance (TPA) § Ensures proper terminal insertion position and retention § Four different coding with different colors § Visual and mechanical mismatching prevention system § Connector positioning assurance (CPA) § Ensures that connectors are properly mated and locked together § Wire gauge up to 22AWG www.amphenol-icc.com § Meet wide gauge application requirement Amphenol Information Communications and Commercial Products WireLock® TECHNICAL INFORMATION MATERIAL APPROVALS AND CERTIFICATIONS § Board Connector: Copper alloy § UL E66906 § Housing: High Temperature UL 94V-0 SPECIFICATIONS § Crimping Terminal: Phosphor bronze alloy/bass (tin plated) ELECTRICAL PERFORMANCE § Voltage Rating: 48V AC/DC § Insulation Resistance: 100MΩ min. § Contact Resistance: 25mΩ max. (initial) § Current Rating: 3A § Low Level Contact Resistance: < 15mΩ § Dielectric Withstand Voltage: 1000V AC § Temperature Rise: +55°C max. for 5.0A MECHANICAL PERFORMANCE § Durability: 10 cycles (tin plated) § Mating/Un-mating Force: 75N max. § Terminal Insertion Force:
