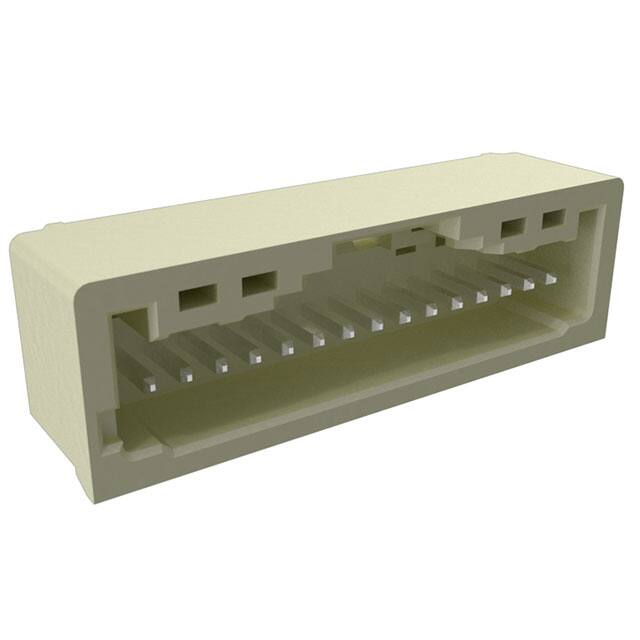

10157547-0015SR1LF

Minitek® Multipitch 1.25mm Wire-to-Board Connector System MODULAR, RELIABLE, AND COMPACT SOLUTION Minitek® Multipitch 1.25mm Wire-to-Board Connector’s compact design addresses the growing demand for miniaturizing components. The connector system is offered in single and double rows with active latching, and optional TPA and CPA features.The single row connectors are available in 2 to 15 positions with horizontal configurations and the double row connectors are available in 10 to 30 positions. TARGET MARKETS The connector has a current carrying capacity of 1A and external cable diameter from 28AWG to 26AWG. § Inner active-latch § Connector Positioning Assurance (CPA) § Terminal-Position-Assurance (TPA) FEATURES BENEFITS § Housing with positive locking § Ensures secure mating retention § Hold down features § Increase the board grip force § Terminal-Position-Assurance (TPA) § Ensures proper terminal insertion position and retention § Polarized mating geometry § Prevents visual mismatching § Connector Positioning Assurance (CPA) § Assures that connectors are properly mated and locked together www.amphenol-icc.com Amphenol Information Communications and Commercial Products Minitek® Multipitch 1.25mm Wire-to-Board Connector System TECHNICAL INFORMATION MATERIAL SPECIFICATIONS § Board Connector: PA9T § Product Specification: GS-12-1610 § Housing: PA66 UL 94V-0 § Packaging Specification: GS-14-2615 § Crimping Terminal: Phosphor bronze alloy (tin plated) § Application Specification: GS-20-0660 ELECTRICAL PERFORMANCE § Hand Tool: 10158871-001LF § Voltage Rating: 50V AC/DC PACKAGING § Insulation Resistance: 100MΩ min. § PCB Header: Tape and reel § Contact Resistance: < 40MΩ § Receptacle Housing: Bag § Current Rating: 1A § Crimping Terminal: Reel MECHANICAL PERFORMANCE TARGET MARKETS/APPLICATIONS § Durability: 30 cycles (tin plating) Steering Control Button Infotainment Lighting § Mating Un-mating Force: 4N/pin max. § Housing Retention Force: 9.8N min. Personal Care Devices (Air Dryer) Home Care Devices (Cleaning Robot) Home Automation (Alarm System) § Wire Gauge: 28AWG to 26AWG ENVIRONMENTAL Robotics PLC Power Tool § Operating Temperature: -40°C to +105°C APPROVALS AND CERTIFICATIONS § UL Approval: Available PART NUMBER Configurations Single Row Double Row Contact Descriptions Part Number R/A SMT Header 10157547 Housing 10157554 R/A SMT Header 10158832 Housing 10158828 Receptacle Terminal 10157551 www.amphenol-icc.com Disclaimer Please note that the above information is subject to change without notice. Minitek® Multipitch 1.25mm Wire-to-Board Connector System PART NUMBER SELECTOR - SINGLE ROW R/A_SMT HEADER 10157547 X X XX XX Base Number Color Plating Option 0 0 Plating Sn 1 Nature PIN Counts: 2-15 Example X LF Pitch Lead Free 1.25mm Type 2pin--- 02 SR Single Row Right Angle 10pin---10 PART NUMBER SELECTOR - SINGLE ROW RECEPTACLE HOUSING 10157554 X XX X X LF Lead Free Pitch Base Number 1 1.25mm Color 0 Type Nature PIN Counts: 2-15 Example 2pin--- 02 10pin---10 1 With TPA & CPA (7-15PIN) 2 With TPA \WO CPA (2-15PIN) 3 With CPA \WO TPA (7-15PIN) 4 WO TPA & CPA PART NUMBER SELECTOR - DOUBLE ROW R/A_SMT HEADER 10158832 X X XX XX Base Number Color Plating Option 0 Plating Sn 0 1 Nature PIN Counts: 10-30 Example 10pin--- 10 www.amphenol-icc.com X LF Pitch Lead Free 1.25mm Type DR Double Row Right Angle Disclaimer Please note that the above information is subject to change without notice. Minitek® Multipitch 1.25mm Wire-to-Board Connector System PART NUMBER SELECTOR - DOUBLE ROW RECEPTACLE HOUSING 10158828 X XX X X Pitch Base Number 1 LF Lead Free 1.25mm Color 0 Type Nature PIN Counts: 10-30 Example 10pin--- 10 30pin---30 1 With TPA & CPA (14-30PIN) 2 With TPA \WO CPA (10-30PIN) 3 With CPA \WO TPA (14-30PIN) 4 WO TPA & CPA PART NUMBER SELECTOR - TERMINAL 10157551 X Base Number P 1 0 Blank Material LF Lead Free Plating Option 0 Plating Sn Wire Gauge 26-28 AWG HAND TOOL BASICSMNTMULPCH0820EA4 § Part Number: 10158871-001LF § Application Spec: GS-20-0660 www.amphenol-icc.com Disclaimer Please note that the above information is subject to change without notice.
