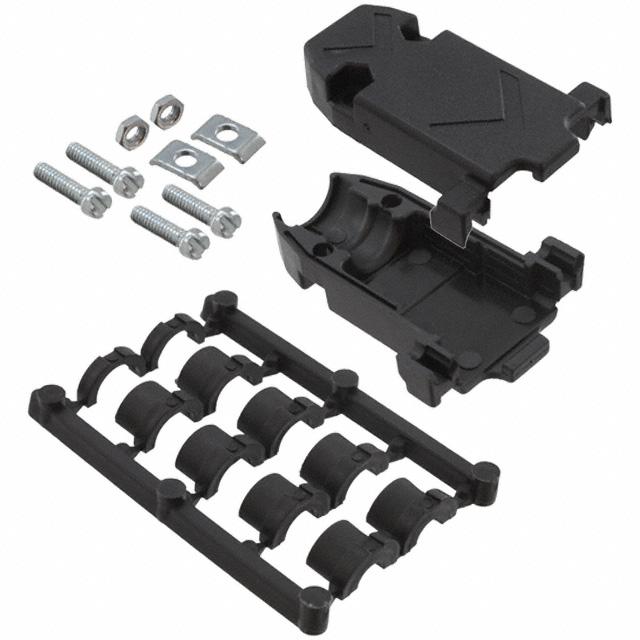

17E-1724-1

Plastic Backshell ACCESSORIES SPECIFICATIONS: Housing Material: Grommet Material: Mounting Hardware: Styrene (UL 94 VO) Polypropylene Steel, clear zinc finish *All materials are RoHS Compliant Amphenol’s black plastic backshell accommodates most standard and high-density D-Subminiature connectors and is appropriate for most cable assemblies. This version is economical and highly durable. The split-grommet insert provides cable strain relief while making it easy to assemble. DIMENSIONS AND 0.475 12.06 ORDERING INFORMATION Shell Size Standard # of Contacts Hi-Density # of Contacts Part # E 9 15 17E-1724-1 A 15 26 17E-1725-1 B 25 44 17E-1726-1 C 37 62 17E-1727-1 D 50 78 17E-1728-1 A B 1.217 (30.91) 1.545 (39.24) 2.090 (53.08) 2.734 (69.44) 2.645 (67.18) 1.547 (39.29) 1.505 (38.23) 1.655 (42.04) 1.830 (46.48) 1.855 (47.12) Dimensions C D 0.640 (16.26) 0.640 (16.26) 0.710 (18.03) 0.906 (23.01) 0.940 (23.88) TELEPHONE: (416) 754-5656 FAX: (416) 754-8668 E-MAIL: 0.640 (16.26) 0.640 (16.26) 0.640 (16.26) 0.640 (16.26) 0.770 (19.56) E F 0.400 (10.16) 0.400 (10.16) 0.522 (13.26) 0.726 (18.44) 0.726 (18.44) 0.984 (24.99) 1.312 (33.32) 1.857 (47.17) 2.500 (63.50) 2.406 (61.11) Cable Diameter Range Minimum Maximum 0.210 (5.33) 0.210 (5.33) 0.230 (5.84) 0.350 (8.89) 0.350 (8.89) SALES@AMPHENOLCANADA.COM 0.350 (8.89) 0.350 (8.89) 0.450 (11.43) 0.640 (16.26) 0.640 (16.26) 57
