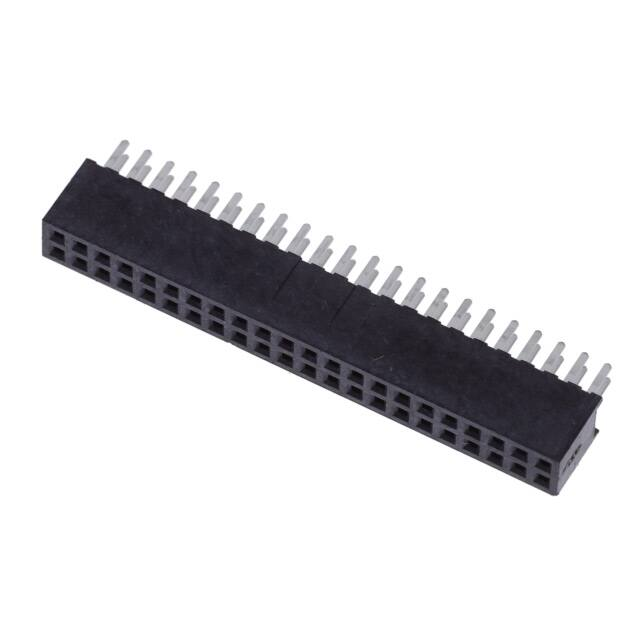

140120-MINITEK127 STANDARD BOARD-TO-BOARD CONNECTOR-1.pdf 1 2014-1-21 15:47:40 BOARD/WIRE-TO-BOARD CONNECTORS MINITEK127® STANDARD BOARD-TO-BOARD CONNECTOR OVERVIEW Minitek127® standard board-to-board connector is the improved 1.27mm pitch modular system. It is the halogen-free product includes the straight, right-angle and surface mount, post option for surface mount, different plating variations and position numbers up to 100. C M Y CM MY CY CMY K FEATURES & BENEFITS TARGET MARKETS / APPLICATIONS • Positions from 4 to 100 with 2 positions incremental • Industrial controls • The stack heights for parallel board to board are 5.8mm, • Medical 6.0mm, 6.1mm and 6.9mm • Space saving compared to 2.54mm & 2.00mm pitch • Reliable and economical selective plating • 15u”, 30u” GXT plating choice • Located post option for SMT type header and receptacle • Customized selective pin loaded • Halogen free • Data • Communications • Measuring equipment • Anywhere that a PCB is connected to another PCB or cable 140121-MINITEK127 STANDARD BOARD-TO-BOARD CONNECTOR-2.pdf 1 2014-1-22 8:50:48 MINITEK127® STANDARD BOARD-TO-BOARD CONNECTOR TECHNICAL INFORMATION MATERIALS ENVIRONMENTAL • Housing • Temperature range: -55ºC to +125ºC • High temperature resin • Mixed Flowing Gas Class IIA • Halogen free • Humidity: 95% relative humidity for 96 hours • Contact base material MECHANICAL PERFORMANCE • Copper Alloy • Durability • Contact area finish • Gold flash, 10u” Gold, 15u” GXT and 30u” GXT over nickel • Solder area finish • Un-mating force ELECTRICAL PERFORMANCE • 0.2N minimum/contact • Contact resistance SPECIFICATIONS • 30 milliohms • Product specification GS-12-629 • Insulation Resistance • 1000Megohms minimum CERTIFICATIONS & APPROVAL • Current rating • UL certificate, file no. E66906 • 1.0 amp/contact M • Mating force • 2.2N maximum/contact • Matte tin over nickel C • 100 cycles PACKAGING • Voltage rating • 125VAC • Tape and reel • Tube Y CM MY PRODUCT TYPE CY CMY Unshrouded header, VT, SMT Shrouded header, VT, SMT 20021121 series 20021221 series Unshrouded header, VT, TH Shrouded header, VT, TH 20021111 series 20021211 series Unshrouded header, RA, TH Shrouded header, RA, TH 20021112 series 20021212 series Receptacle, VT, TH 20021311 series Receptacle, VT, SMT 20021321 series Product Unshrouded header, VT, TH Part Number Unshrouded header, RA, TH 20021112 Unshrouded header, VT, SMT 20021121 Shrouded header, VT, TH 20021211 Shrouded header, RA, TH 20021212 Shrouded header, VT, SMT 20021221 Receptacle, VT, TH 20021311 Receptacle, VT, SMT 20021321 For more information, please contact: Communications@fci.com or visit us at www.fci.com 20021111 Disclaimer Please note that the above information is subject to change without notice. BWBMNT1271115EA4 K
