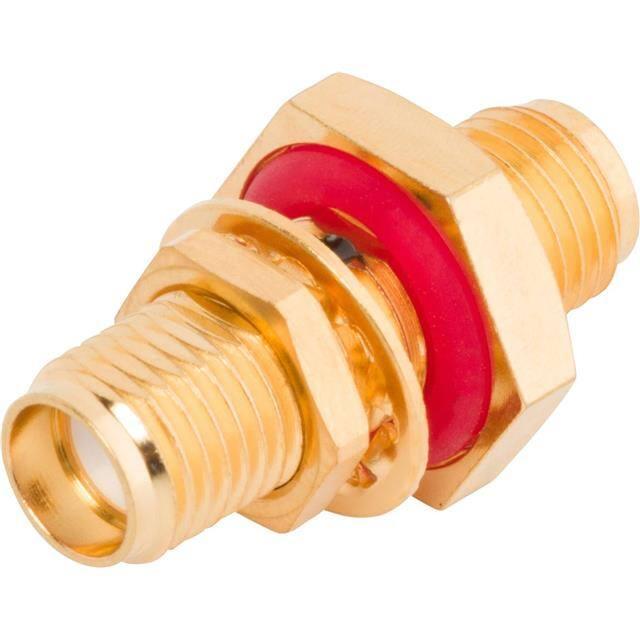

2991-6002

ROHS COMPLIANT PRODUCT DATA DRAWING REVISION HISTORY DESCRIPTION REV - DCN 40055 DATE APPROVED 09/13 STW .875 22.23 .550 13.97 .500 12.70 MATERIAL: BODY & HEX. NUT: CONTACT: STAINLESS STEEL PER AMS-5640, ALLOY UNS S30300, TYPE 1 BERYLLIUM COPPER PER ASTM B196, ALLOY No. UNS C17300, TD04 INSULATOR: PTFE PER ASTM D1710, TYPE I, GRADE 1, CLASS B O-RING: SILICONE RUBBER PER A-A-59588, CLASS 2B, GRADE 50/60 LOCKWASHER: 300 SERIES STAINLESS STEEL GLASS: EN1 OR EQUIVALENT PIN: KOVAR 2X 1/4-36 UNS-2A .375 HEX. .190 MAX 4.83 MAX .055 MIN[1.40 MIN] PANEL 5/16-32 UNEF-2A RECOMMENDED MOUNTING HOLE .1425±.0015 3.62±0.04 FINISH: .3165±.0025 8.04±0.06 BODY & CONTACT: HEX NUT & LOCKWASHER: PIN: GOLD PER ASTM B488, TYPE II, CODE C, CLASS 0.76, OVER NICKEL PER AMS-QQ-N-290, CLASS 1, .00005" MIN. GOLD PER ASTM B488, TYPE I, CODE C, CLASS 0.50, OVER NICKEL PER AMS-QQ-N-290, CLASS 1, .00005" MIN. NICKEL PER AMS-QQ-N-290, CLASS 1 MATERIAL: PERFORMANCE: FINISH: IMPEDANCE: FREQ. RANGE: VSWR: INSERTION LOSS: LEAK RATE: 50 OHMS DC TO 18.0 GHz 1.05 + .010F (F IN GHz) .05 X SQRT(F(F IN GHz)) SHALL NOT EXCEED 1 X 10-8 CC/SEC SEE NOTES SEE NOTES SURFACE AREA: N/A PROPRIETARY THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF SV MICROWAVE, INC. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF SV MICROWAVE, INC IS PROHIBITED. DIMENSIONS ARE IN INCHES TOLERANCES: FRACTIONAL: DECIMAL: .X .XX .XXX 1/64 ANGULAR: X X X' 1 0' 15' .030 .010 .005 INTERPRET DIMENSIONS AND TOLERANCES PER ASME Y14.5M - 1994 THIRD ANGLE PROJECTION SV Microwave, Inc. UNLESS OTHERWISE SPECIFIED 1) ALL DIMENSIONS ARE IN INCHES [MILLIMETERS] 2) ALL DIMENSIONS ARE AFTER PLATING. 3) BREAK CORNERS & EDGES .005 R. MAX. 4) CHAM. 1ST & LAST THREADS. 5) SURFACE ROUGHNESS 63 e MIL-STD-10. 6) DIA.’S ON COMMON CENTERS TO BE CONCENTRIC WITHIN .005 T.I.R. 7) REMOVE ALL BURRS DRAWN: FSG 09/16/13 CHECKED: APPROVED: STW 09/16/13 STW 09/16/13 2400 Centrepark West Drive, Suite 100 West Palm Beach, FL 33409 TITLE: SMA JACK TO JACK BULKHEAD ADAPTER HERMETIC SEAL SIZE CAGE CODE DWG. NO. B 95077 SCALE: 4:1 2991-6002 SHEET 1 OF 1
