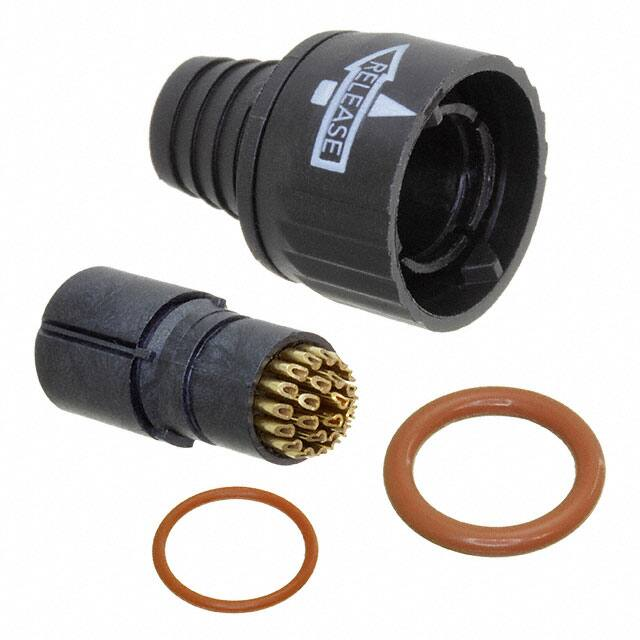

PL-700SM-N SERIES
Plastic Shell Auto-Coupling Connectors
27 pole capacity circular shell connectors
PL-700SM-N FEATURES
Compact and configurable, the PL-700SM-N Series connector is Amphenol
Alden’s most versatile offering in a sub .700” diameter package. PL-700SM-N
Series connectors attach to a cable with a Press & Seal TM backshell that provides
the refined look and performance of an overmolded product.
Packaging (intuitive, compact, configurable)
Pulse-Lok® auto-latch / mating confirmation
Miniature .700” diameter circular shell
Up to 27 contact positions
16 standard color combinations
Multiple and proprietary keying options
Available as an overmolded cable assembly
Custom configurations available
Performance (for harsh environments)
Water proof (IP-67 rated)
Steam, EtO, & Gamma sterilizable
Chemical resistant housing
Up to 5,000 mating cycles (with std.Contacts)
Factory terminated, overmolded cable
assemblies for enhanced flex and strain relief
SPECIFICATIONS
Electrical (see below)
Mating Life: 5,000 cycles min.
Contact Resistance: < 10 milliohms*
Material
Connector Housing: Thermoplastic
Flex Reliefs: Thermoplastic Rubber
Contacts: Brass / BeCu,
Gold Plate per MIL-G-45204
Reusable Socket = 30-45µ” Gold over
50-200µ” Nickel strike
Disposable Pin = 10-30µ” Gold over
50-200µ” Nickel strike
Mechanical
Mating Cycles: 5K cycles max
Retention Force:
Mated Connectors: 25 lbs. Minimum
Cable to Connector: 35 lbs. Typical
Backshell to Connector: 45 lbs. Minimum
Housing Styles (Page 2)
Plug: In-Line
Receptacles: Front & Rear Panel-Mount
Receptacles: In-Line
TABLE A:
Environmental
Operating Temp: -20C to +105C**
Moisture Resistance: to IP-67 (encapsulated)
Sterilizable: gamma, EtO & Autoclave
Chem. Resistance: common OR cleaning solvents
* post conditioning
**Dependent on overmold material
STANDARD CONTACT CONFIGURATIONS & SPECFICATIONS
Up to 27 Contact
Positions
Operating
Operating
Current Max
Voltage Max
(A)
Contact
Resistance
(ohms)
Number of
Poles
Contact Size
Pin φ (mm)
Max Wire
Gauge
27
24
0.5
0.5
26
26
300 V RMS
300 V RMS
0.5
0.5
