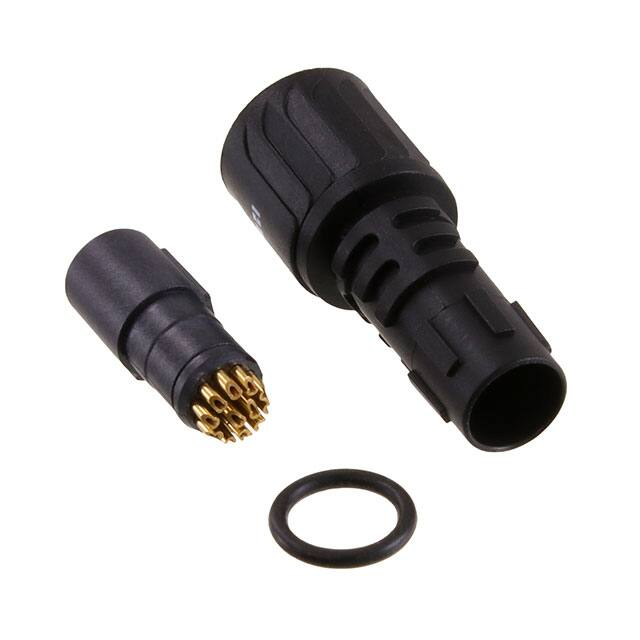

PL-500SM-N SERIES Plastic Shell Auto-Coupling Connectors 14 pole capacity miniature circular connector for overmolding PL-500SM-N FEATURES Ideal for rear-panel instrumentation and hand-held equipment, the compact and cost effective PL-500SM-N Series is designed to meet the efficient packaging demands of portable electronic devices Packaging (intuitive, compact, configurable)  Pulse-Lok® auto-latch / mating confirmation  Miniature .520” diameter circular shell  Up to 14 contact positions  14 standard color combinations  Multiple and proprietary keying options  Available as an overmolded cable assembly  Custom configurations available Performance (for harsh environments)  Water proof (IP-67 rated)  Steam, EtO, & Gamma sterilizable  Chemical resistant housing  Up to 5,000 mating cycles (with std. Contacts)  Factory terminated, overmolded cable assemblies for enhanced flex and strain relief SPECIFICATIONS Mechanical Mating Cycles: 5K cycles max Retention Force:  Mated Connectors: 15 lbs. Minimum  Cable to Connector: 25 lbs. Typical  Backshell to Connector: 35 lbs. Minimum Electrical (see below) Mating Life: 5,000 cycles min. Contact Resistance: < 10 milliohms* Material Connector Housing: Nylon 12 Flex Reliefs: Thermoplastic Rubber Contacts: Brass / BeCu, Gold Plate per MIL-G-45204 TABLE A: Up to 14 Contact Positions Number of Poles STANDARD CONTACT CONFIGURATIONS & SPECFICATIONS Contact Size Pin Max Wire Gauge φ (mm) 14 10 8 7 6 5 4 3 2 1 1 Environmental  Operating Temp: -20C to +85C**  Moisture Resistance: to IP-67 (encapsulated)  Sterilizable: gamma, EtO & Autoclave  Chem. Resistance: common OR cleaning solvents * post conditioning **Dependent on overmold material 0.5 0.5 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 1.5 Operating Voltage Max Operating Current Max (A) 300 V RMS 300 V RMS 300 V RMS 300 V RMS 300 V RMS 300 V RMS 300 V RMS 300 V RMS 300 V RMS 300 V RMS 300 V RMS 0.9 1.2 1.8 2.1 2.1 2.4 2.4 3.0 3.0 3.0 7.0 26 26 22 22 22 22 22 22 22 22 16 Contact Resistance (ohms)
