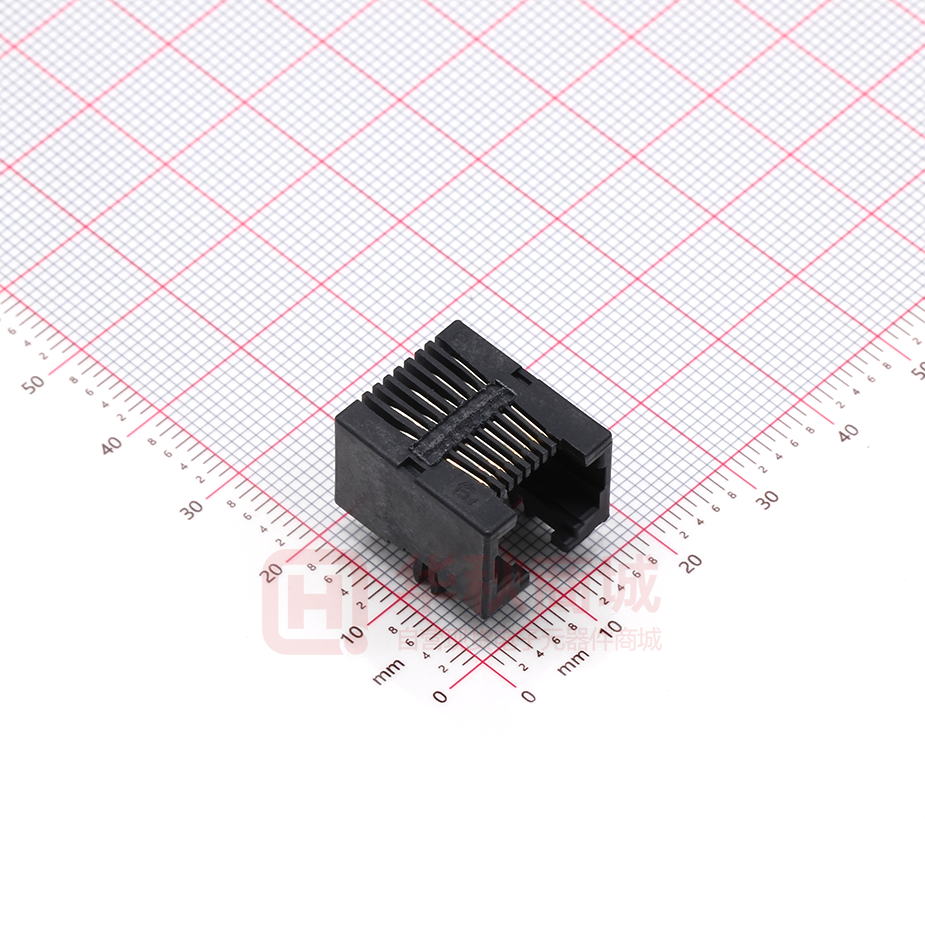

54601-908WPLF

厂商：
AMPHENOL(安费诺)
封装：
插件
描述：
RJ11/RJ45连接器弯插

数据手册：

下载54601-908WPLF.pdf

立即购买

详情介绍
数据手册
价格&库存

54601-908WPLF 数据手册

INPUT/OUTPUT CONNECTORS MODULAR JACK CONNECTORS OVERVIEW FCI’s Modular Jacks include single and multi-port solutions that are widely used in Telecom, Data, Networking and Home Entertainment markets for various applications. The product features a simple, flexible and low profile design for LAN application, in particular, the Network Interface Card. Modular Jacks Cat 3 supports the transmission of 16Mbps signals targeted to phone, modem, POS terminal machines and Cat 5 supports the transmission of 100Mbps signals targeted to switch, router, hub, etc. The design confirms to US Federal Regulations Code, Title 47, part 68, which defines the size and configuration of all units that are permitted for connection to the public exchange facilities. FEATURES & BENEFITS TARGET MARKETS/APPLICATIONS • Right angle or vertical • Networking • Network servers • Hubs • Routers • Ethernet switches • Through mount or surface mount (SMT) • Cat3, Cat5 performance category 4, 6, 8 positions, fully or selectively loaded • Single to stacked multi-ports • Shielded or non-shielded • Flanged or flangless versions • Inverted latch options • Standard or low profile versions • Snap or diamond pegs options • Computers and peripherals • Laptops • Modems • Telecom • PBX system • Fax machines • Phone line security systems • Telephone, cellular and mobile phones • Office and home equipment • ATMs • Point of sales terminals • Vending machines • Security systems • Set-top boxes • Medical analysis equipment MODULAR JACK CONNECTORS TECHNICAL INFORMATION MATERIALS MECHANICAL PERFORMANCE • Housing: Glass filled, self extinguishing thermoplastic • Pin retention to housing: 10 N min. • Flammability rating: UL94V-0 • Durability: 250 - 2500 cycles • Pin: Copper alloy SPECIFICATIONS • Plating: Au or GXT over 1.27μm (50µin.) nickel • Product specification: Refer to drawing ELECTRICAL PERFORMANCE • Packaging specification: Refer to drawing • Current rating: 3A continuous PACKAGING • Insulation resistance: 500MΩ min. • Tray • Dielectric withstanding voltage: 1500V min. • Tape & Reel ENVIRONMENTAL APPROVALS & CERTIFICATIONS • Operating Temperature Range: -65°C to 125°C • RoHS compatible according to the European Union Directive 2002/95/EC PART NUMBERS Single Port Cat3 Positions Pegs Part Series Right Through Mount 4, 6, 8 4, 6 8, 10 Snap Snap Snap 87180 / 54601 / 88400 (660101/ 66011-inverted) / 54602 SMT 4 6 8 Through Mount 4 4 6 6 8 SMT 4 6 8 Snap Diamond Snap Diamond Diamond 90511 69253 90512 / 10037501 69254 69255 87543 / 98431 87545 / 98432 / 98433 (keyed) Single Port Cat3 Ports Shield Part Series Right Through Mount 4, 8 2, 4, 7, 8 2 (6P+6P) 2x4 (Stacked) Yes No No Yes 94910 94911 10053565 74633 Straight Through Mount 3 (4P+4P+6P) No 92266 Single Port Cat5 Ports Right Angle 4, 8 (filter) Yes 4, 8 Yes 2, 4, 6, 8 No Through Mount For more information, please contact: Communications@fci.com or visit us at www.fci.com Shield Part Series 95672 95678 95679 Disclaimer Please note that the above information is subject to change without notice. INOMODJACK0713EA4 Straight 73306 73305 73304

下载 PDF

54601-908WPLF

PDF文档中提到的物料型号为54601。

以下是关于该物料的详细信息：

1. 器件简介： - 产品符合欧盟指令和其他国家法规，如GS-22-008所述。

- 产品在260-265摄氏度的焊接应用中暴露5秒钟，使用保护性粘合剂覆盖（如Kapton或Teflon）或保护性金属装置。

2. 引脚分配： - 引脚位置编号从1到8，具体引脚分配未在文档中详细说明。

3. 参数特性： - 绝缘电阻：最小500MΩ。

- 耐压：1000Vrms，60Hz。

- 介电强度：20到30mΩ，最大2.0安培直流。

- 耐久性：250次配对周期。

4. 功能详解： - 产品具有8个引脚，接触材料为0.46mm磷青铜圆线。
