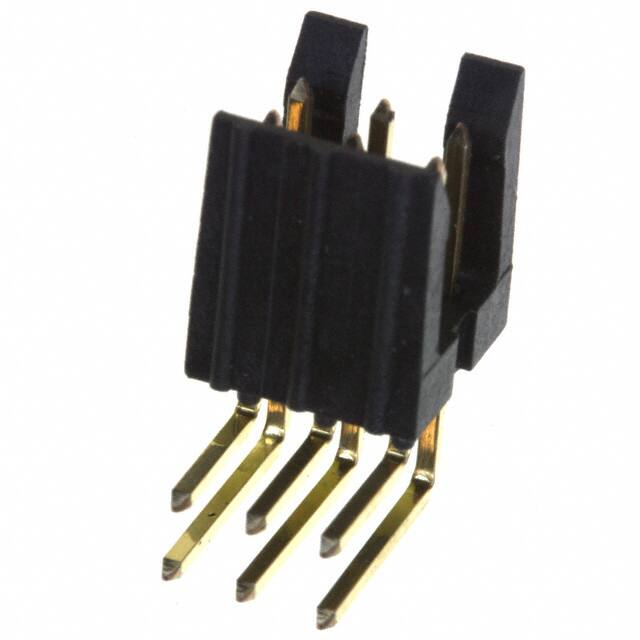

78207-106HLF

PV® Wire-to-Board Connector System VERSATILE DESIGN FOR DEMANDING APPLICATIONS Amphenol ICC’s PV® solution is a versatile and modular system able to meet all the board-to-board, boardto-wire, wire-to-wire applications where high density, outstanding electrical and mechanical performances are required. §§Unique dual-metal PV® receptacle contact ensures durability up to 1000 cycles §§Beryllium copper spring ensures high normal force at the mating interface §§Polarized mating geometry to prevent mismatching §§Keyed MINI-LATCH housings provides polarization to prevent mismating TARGET MARKETS FEATURES BENEFITS §§Unique dual-metal PV® receptacle contact §§Ensures durability up to 1000 cycles §§Beryllium copper spring §§High normal force during mating interface §§Keyed MINI-LATCH housings §§Provide polarization to prevent mismating §§Brass contact body §§Reliable, gas-tight crimp termination §§Choice of three different spring pressures §§Allows the user to customize insertion and withdrawal forces to specific application requirements §§Shrouded header side walls engage with the sides of the §§Provides additional retention MINI-LATCH housing §§Two wall header design §§Provides mechanical benefits §§RoHS compliant and lead-free §§Meets environmental, health and safety requirements www.amphenol-icc.com Amphenol Information Communications and Commercial Products PV® Wire-to-Board Connector System TECHNICAL INFORMATION MATERIAL ELECTRICAL PERFORMANCE §§ Contact Material: §§ Current Rating Single Circuit: 3.0A with 32 AWG wire; larger §§ PV Wire Terminals: Brass body and beryllium copper spring ® §§ PCB Headers: Phosphor bronze §§ Contact Plating: §§ PV® Wire Terminals: Gold or lead-free pure tin over nickel §§ PCB Headers: Gold or GXT™ (palladium-nickel with gold flash) or lead-free pure tin over nickel §§ Housing Material: §§ MINI-LATCH Housings: Modified polyphenylene oxide UL94V-0 §§ Shrouded PCB Headers: Glass filled nylon UL94V-0 §§ RoHS Information: All parts with “LF” suffix are RoHS compliant APPROVALS AND CERTIFICATION §§ UR E66906 §§ CSA LR46923 SPECIFICATION wires allow more; all applications require de-rating §§ Withstanding Voltage: 1000V RMS §§ Insulation Resistance, Wire Connector: >10000MΩ §§ Insulation Resistance, PCB Header: >5000MΩ §§ Contact Resistance (LLCR), Wire Connector:
