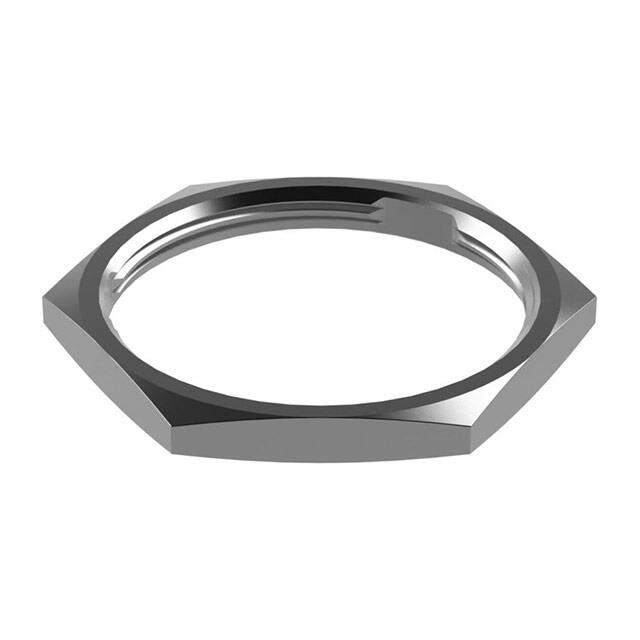

A114020-90

REVISIONS REV ECO A1 -- DESCRIPTION RELEASE NEW DRAWING DATE BY APPR 26/SEP/18 ROOKIE TOMMY A TITLE: 4.5 1 1/2-18 UNEF 2B THREAD NUT, AHDM SERIES, SIZE 18 42.8 DWG NO: SECTION A-A A A114020-90 REV: A1 SH: NOTES: UNLESS OTHERWISE SPECIFIED 1 1. MATERIAL: ALUMINIUM ALLOY,NICKEL PLATED. 4. ALL DIMENSIONS ARE FOR REFERENCE USE ONLY. QUANTITY UNLESS OTHERWISE SPECIFIED 1) 2) 1 2 3 All dimensions are in metric(mm). Tolerances are as follows: PL DEC ±0.30 Fractions ±1/64 PL DEC ±0.15 Angles ±1° PL DEC ±0.08 3) Note reference = X SIGNATURES DRAWN: CHECKED: Amphenol DATE ROOKIE ORION 26/SEP/18 26/SEP/18 TOMMY 26/SEP/18 Sine Systems - www.amphenol-sine.com 44724 Morley Drive Clinton Township, MI 48036 ENGINEER: APPROVAL: MATERIAL SPECIFICATIONS: CUSTOMER: PROCESS SPECIFICATIONS: NUT, AHDM SERIES, SIZE 18 THIS DRAWING IS SUPPLIED FOR INFORMATION ONLY. DESIGN FEATURES, SPECIFICATIONS AND PERFORMANCE DATA SIZE SHOWN HEREON ARE THE PROPERTY OF THE AMPHENOL CORPORATION. NO RIGHTS OF REPRODUCTION ARE IMPLIED. ALL DIMENSIONS ARE SUBJECT TO NORMAL SCALE: MANUFACTURING VARIATIONS. TYPE B C- NEXT ASS'Y: ITEM NONE DWG NO: REVISION A114020-90 SHEET A1 1 OF 1 1 3. RoHS COMPLIANT. OF: A114020-90 DESCRIPTION PART NUMBER MATERIALS LIST 2. USE WITH AHDM SERIES SIZE 18 RECEPTACLE.
