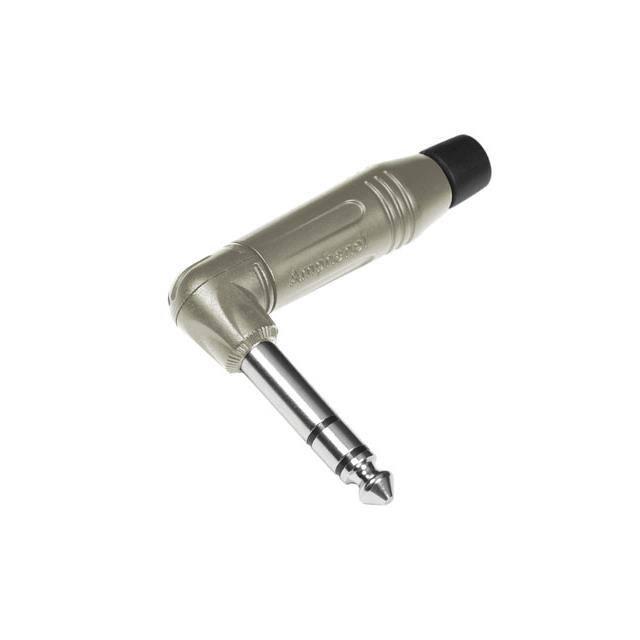

1/4” PHONE PLUGS M SERIES (MUSICIAN RANGE) Features: • Mono or Stereo (TRS). • Stylish shell design. • Robust diecast shell in Satin nickel or Black finish. • Nickel or Gold contact plating. • Flexible grommet cable protection. • Improved solderability. • Precision machined contacts. • Standard or Bulk packaging. • Cable OD Entry to 6.5mm (0.256”) Options: Black Shell, Gold contacts. Coloured grommets (ordered separately) Specifications: Page 112 PRODUCT - FIGURE DRAWING Dimensions in mm (inches) DESCRIPTION 1/4” (6.35mmø) Mono Phone plug, Diecast Shell, Satin finish, Flexible grommet. 1/4” (6.35mmø) Mono Phone plug, Diecast Shell, Black finish, Flexible grommet. 1/4” (6.35mmø) Stereo Phone plug, Diecast Shell, Satin finish, Flexible grommet. 1/4” (6.35mmø) Stereo Phone plug, Diecast Shell, Black finish, Flexible grommet. VARIATIONS PART NUMBER Standard ACPM-GN Gold Plated Contacts ACPM-GN-AU Bulk Pack ACPM-GN BULK Standard ACPM-GB Gold Plated Contacts ACPM-GB-AU Bulk Pack ACPM-GB BULK Standard ACPS-GN Gold Plated Contacts ACPS-GN-AU Bulk Pack ACPS-GN BULK Standard ACPS-GB Gold Plated Contacts ACPS-GB-AU Bulk Pack ACPS-GB BULK 101 ENTERTAINMENT INTERCONNECT CATALOGUE - Amphenol Australia Pty Ltd Telephone 61 3 8796 8888 Fax 61 3 8796 8801 www.amphenolaudio.com 1/4” PHONE PLUGS M SERIES (MUSICIAN RANGE) PRODUCT - FIGURE DRAWING Dimensions in mm (inches) DESCRIPTION 1/4” (6.35mmø) Mono Phone plug, Right angle, Diecast Shell, Satin finish, Flexible grommet. 1/4” (6.35mmø) Mono Phone plug, Right angle, Diecast Shell, Black finish, Flexible grommet. 1/4” (6.35mmø) Stereo Phone plug, Right angle, Diecast Shell, Satin finish, Flexible grommet. 1/4” (6.35mmø) Stereo Phone plug, Right angle, Diecast Shell, Black finish, Flexible grommet. TYPE PART NUMBER Standard ACPM-RN Gold contacts ACPM-RN-AU Bulk Pack ACPM-RN BULK Standard ACPM-RB Gold contacts ACPM-RB-AU Bulk Pack ACPM-RB BULK Standard ACPS-RN Gold contacts ACPS-RN-AU Bulk Pack ACPS-RN BULK Standard ACPS-RB Gold contacts ACPS-RB-AU Bulk Pack ACPS-RB BULK 102 ENTERTAINMENT INTERCONNECT CATALOGUE - Amphenol Australia Pty Ltd Telephone 61 3 8796 8888 Fax 61 3 8796 8801 www.amphenolaudio.com 1/4” PHONE PLUGS M SERIES / M SERIES II (MUSICIAN RANGE) PART NUMBER BREAKDOWN B - AU BULK L PA CK A GI NG TI NG PL A CT TA G CO N S FI NI SH PE ACP SH EL TY SH EL L CT CO N TA SE R IE S PR E TY FI X PE M / M SERIES II (MUSICIAN RANGE) E. G . ACPM-GB-AU BULK ACP (Series Prefix), Male, G(Shell Type), Black, - AU (Gold Plated Contacts), Bulk Packaged. SERIES PREFIX ACP = Series Prefix CONTACT TYPE M = = 2 pole (Mono) S SHELL TYPE G K R T SHELL FINISH N B CONTACT PLATING Blank AU PACKAGING Blank BULK = = = = = = = = = = 3 pole Tip/Ring/Sleeve (Stereo) M Series Straight M Series II Straight M Series Right Angle M Series II Right Angle Satin Nickel Matt Black Nickel Plating Gold Plated Individual Bags Bulk Packed 103 ENTERTAINMENT INTERCONNECT CATALOGUE - Amphenol Australia Pty Ltd Telephone 61 3 8796 8888 Fax 61 3 8796 8801 www.amphenolaudio.com
