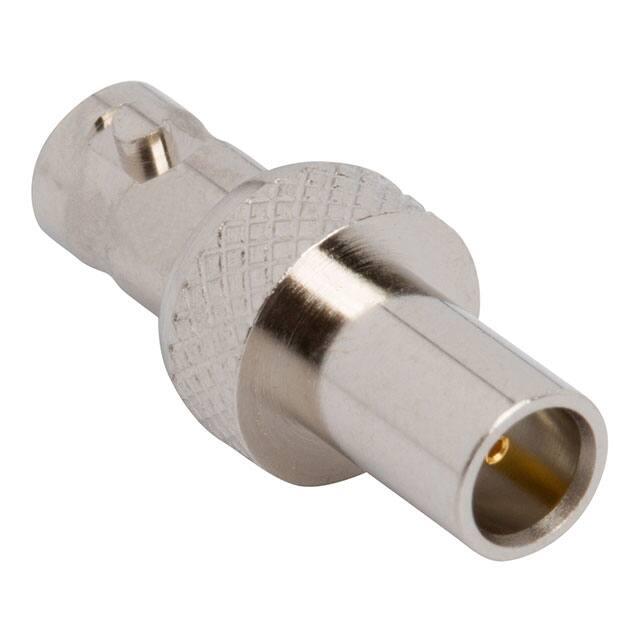

AD-HDBNJMCJ-12G

NOTES: THIRD ANGLE PROJ. 1. MATERIALS AND FINISHES: BODIES - BRASS, NICKEL PLATING CONTACT - BeCu, GOLD PLATING INSULATORS - PTFE, NATURAL 2. ELECTRICAL: A. IMPEDANCE: 75 OHM B. FREQUENCY RANGE: DC - 12 GHz C. RETURN LOSS: -30 dB MIN. @ DC - 6 GHz -20 dB MIN. @ 6 - 12 GHz D. DIELECTRIC WITHSTANDING VOLTAGE: 500 VRMS, MIN. REV 3. MECHANICAL: A. DURABILITY: 500 CYCLES MIN. B. TEMPERATURE RANGE: -65 $ C TO +85 $ C 4. PACKAGING: A. QUANTITY: SINGLE PACK B. MARKING: BAG TO BE MARKED "AMPHENOL RF, AD-HDBNJMCJ-12G , DATE CODE, & U.S. PATENT NO. 7,553,117" DESCRIPTION A REVISIONS RELEASE TO MFG. DATE SCALE 17,51 REF [.689 ] 6,8 REF [.268 ] 7,5 REF [.295 ] ECN 21-Jan-20 14261 APPR SV 3.500 7 REF [.276 ] 4,55 REF [.179 ] TYP. INTERFACE PER MCX JACK 75 OHM INTERFACE: HD-BNC JACK PROTECTED UNDER U.S PATENT # 7,553,117 UNLESS OTHERWISE SPECIFIED, DIMENSIONS ARE IN METRIC AND TOLERANCES ARE:
