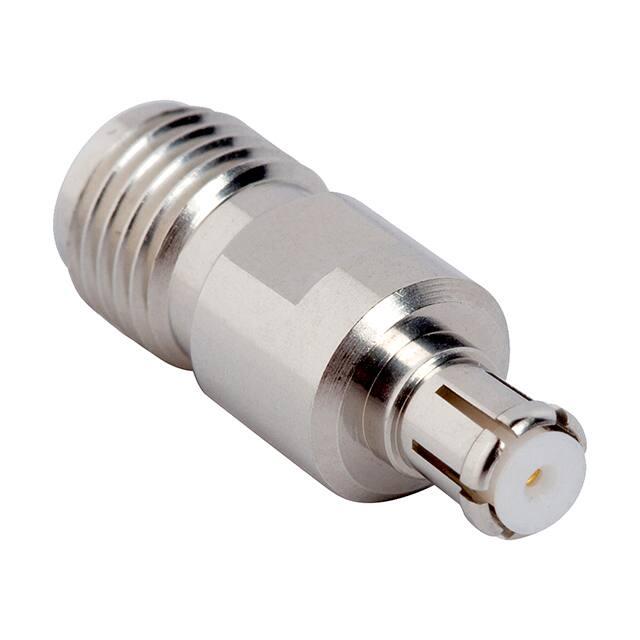

AD-SMAJHDEFIP-1

THIRD ANGLE PROJ. NOTES: 1. MATERIALS AND FINISHES: BODY - BERYLLIUM COPPER, ALBALOY PLATING CONTACT PIN - BERYLLIUM COPPER, GOLD PLATING INSULATORS - PTFE, NATRUAL 2. 3. 4. ELECTRICAL: A. IMPEDANCE: 50 OHM B. FREQUENCY RANGE: DC - 6 GHz C. VSWR: 1.15 @ DC - 3 GHz 1.20 @ 3 - 6 Ghz MECHANICAL: A. TEMPERATURE RANGE: -55 $ C TO 125 $ PACKAGING: A. QUANTITY: SINGLE PACK B. MARKING: "AMPHENOL RF, REV DESCRIPTION A REVISIONS DATE RELEASE TO MFG. 06-Aug-18 ECN 8787 C SCALE AD-SMAJHDEFIP-1 , DATE CODE" 5.33 FLATS [.210] 1/4-36UNS-2A 5.000 6,35 REF [.250 ] INTERFACE: HD-EFI PLUG INTERFACE PER MIL-STD-34B SERIES: SMA JACK 16,95 REF [.667 ] 17,33 REF [.682 ] CUSTOMER OUTLINE DRAWING ALL OTHER SHEETS ARE FOR INTERNAL USE ONLY UNLESS OTHERWISE SPECIFIED, DIMENSIONS ARE IN METRIC AND TOLERANCES ARE:
