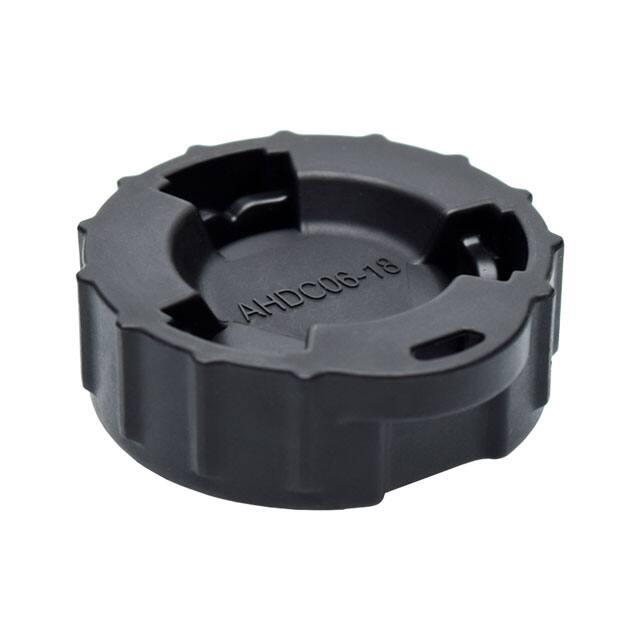

AHDC06-18

TITLE: PROTECTIVE CAP FOR RECEPTACLE,AHDP SERIES, SIZE 18 AHDC06-18 DWG NO: REV: 03 SH: 1 OF: 1 REVISIONS REV 120° REF ECO DESCRIPTION DATE BY APPR 01 PRELIMINARY DRAWING 11APR17 SULLEN TOMMY 02 CHANGE P/N TO AHDC06-18 18MAY17 SULLEN TOMMY 03 CHANGE DIMENSIONS 21JUL17 SULLEN TOMMY Ø44.4 120° REF Ø28.1 45.7 14.7 19.6 AHDC06-18 DESCRIPTION PART NUMBER MATERIALS LIST NOTES: UNLESS OTHERWISE SPECIFIED 1. MATERIAL: THERMOPLASTIC QUANTITY 2. COLORS: BLACK 1) 2) 1 2 3 UNLESS OTHERWISE SPECIFIED 3. RoHS COMPLIANT 4. COMPATIBLE WITH ALL SIZE 18 AHDP SERIES RECEPTACLE. 5. ALL DIMENSIONS ARE FOR REFERENCE USE ONLY. All dimensions are in metric(mm). Tolerances are as follows: PL DEC ±0.30 Fractions ±1/64 PL DEC ±0.15 Angles ±1° PL DEC ±0.08 3) Note reference = X SIGNATURES DRAWN: CHECKED: Amphenol DATE SULLEN.ZHANG 21JUL17 ORION.LI 21JUL17 Sine Systems - www.amphenol-sine.com 44724 Morley Drive Clinton Township, MI 48036 ENGINEER: APPROVAL: MATERIAL SPECIFICATIONS: TOMMY.XIE 21JUL17 CUSTOMER: PROCESS SPECIFICATIONS: THIS DRAWING IS SUPPLIED FOR INFORMATION ONLY. DESIGN FEATURES, SPECIFICATIONS AND PERFORMANCE DATA SIZE SHOWN HEREON ARE THE PROPERTY OF THE AMPHENOL CORPORATION. NO RIGHTS OF REPRODUCTION ARE IMPLIED. ALL DIMENSIONS ARE SUBJECT TO NORMAL SCALE: MANUFACTURING VARIATIONS. PROTECTIVE CAP FOR RECEPTACLE, AHDP SERIES, SIZE 18 TYPE A C- NEXT ASS'Y: ITEM NONE DWG NO: REVISION AHDC06-18 SHEET 03 1 OF 1
