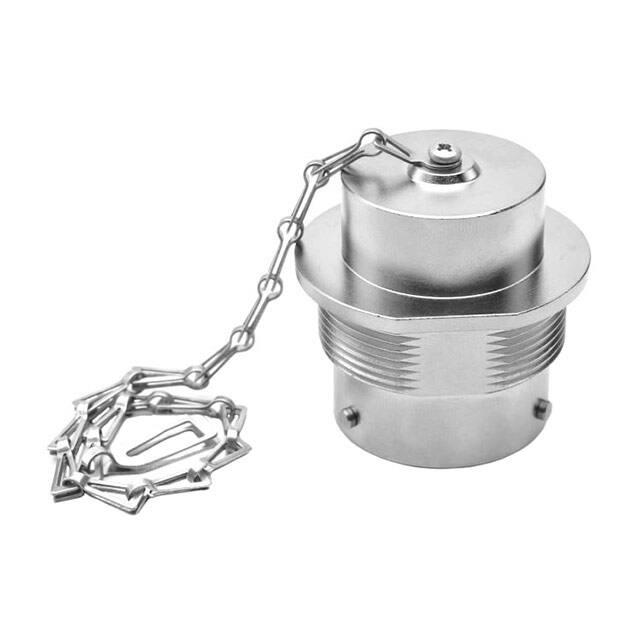

AHDC34-18

REVISIONS MAIN POLARIZING KEYWAY REV ECO A1 -- DESCRIPTION RELEASE NEW DRAWING DATE BY APPR 19/OCT/18 ROOKIE TOMMY 41.5 Ø44.6 12.8 2.5 110°REF ACCPET MAX. SIZE 10 SCREW TITLE: 110°REF PROTECTIVE CAP FOR PLUG,AHDM,SIZE 18 Ø33.8 Ø10.10 1 1/2-18 UNEF 2A THREAD 200(REF) DWG NO: AHDC34-18 Ø42.88±0.12 REV: NOTES: UNLESS OTHERWISE SPECIFIED A1 41.02+0.2 -0.0 SH: 1. MATERIAL: SHELL: ALUMINUM ALLOY, NICKEL PLATED; CHAIN: STAINLESS STEEL; SEAL: SILICONE RUBBER. 1 QUANTITY 4. RoHS COMPLIANT. RECOMMENDED PANEL MOUNTING HOLE 1) 2) 1 2 3 All dimensions are in metric(mm). Tolerances are as follows: PL DEC ±0.30 Fractions ±1/64 PL DEC ±0.15 Angles ±1° PL DEC ±0.08 3) Note reference = 5. ALL DIMENSIONS ARE FOR REFERENCE USE ONLY. RECOMMENDED PANEL THICKNESS:1.6 TO 4.7MM X SIGNATURES DRAWN: CHECKED: 19/OCT/18 19/OCT/18 TOMMY 19/OCT/18 Sine Systems - www.amphenol-sine.com 44724 Morley Drive Clinton Township, MI 48036 ENGINEER: APPROVAL: MATERIAL SPECIFICATIONS: CUSTOMER: PROCESS SPECIFICATIONS: Amphenol DATE ROOKIE ORION PROTECTIVE CAP FOR PLUG,AHDM,SIZE 18 THIS DRAWING IS SUPPLIED FOR INFORMATION ONLY. DESIGN FEATURES, SPECIFICATIONS AND PERFORMANCE DATA SIZE SHOWN HEREON ARE THE PROPERTY OF THE AMPHENOL CORPORATION. NO RIGHTS OF REPRODUCTION ARE IMPLIED. ALL DIMENSIONS ARE SUBJECT TO NORMAL SCALE: MANUFACTURING VARIATIONS. TYPE B C- NEXT ASS'Y: ITEM NONE DWG NO: REVISION AHDC34-18 SHEET A1 1 OF 1 1 AHDC34-18 DESCRIPTION PART NUMBER MATERIALS LIST UNLESS OTHERWISE SPECIFIED 3. IP CLASS : IP67&IP69K ( MATED CONDITION ). OF: 2. MATE WITH AHDM SERIES SIZE 18 PLUG ( AHDM06-18-**** , * = ALL MODIFICATION ) .
