AHDMBS-18-059

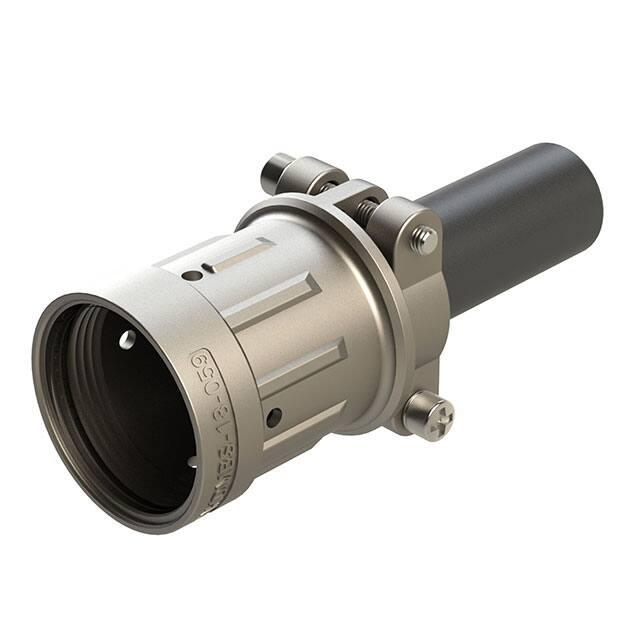

REVISIONS 94(REF) REV ECO DESCRIPTION DATE BY APPR A1 -- RELEASE NEW PRODUCT 30/AUG/19 ROOKIE TOMMY A2 -- REVISED BUSHING NOTES 20MAR2020 J.HEAD DH 52.7±0.5 TITLE: Ø15.9 BUSHING ID BACKSHELL, CABLE CLAMP, 18 SZ, AHDM Ø37.3 BUSHING RECOMMENDED TORQUE :1.5-2.0 N.M SCREW AND LOCK WASHER LATCH SEGMENT DWG NO: AHDMBS-18-059 SHELL REV: M32X1.5 6H THREAD A2 SH: NOTES: UNLESS OTHERWISE SPECIFIED 1 3. APPLY TO CABLE OD SIZE: Ø11.20-Ø19.30 . CAN BE USED WITH OR WITHOUT BUSHING. UNLESS OTHERWISE SPECIFIED All dimensions are in metric(mm). Tolerances are as follows: PL DEC ±0.30 Fractions ±1/64 PL DEC ±0.15 Angles ±1° PL DEC ±0.08 3) Note reference = X SIGNATURES DRAWN: CHECKED: APPROVAL: CUSTOMER: PROCESS SPECIFICATIONS: 30/AUG/19 30/AUG/19 TOMMY 30/AUG/19 Sine Systems - www.amphenol-sine.com 44724 Morley Drive Clinton Township, MI 48036 ENGINEER: MATERIAL SPECIFICATIONS: 4. RoHS COMPLIANT. Amphenol DATE ROOKIE ORION BACKSHELL, CABLE CLAMP, 18 SZ, AHDM THIS DRAWING IS SUPPLIED FOR INFORMATION ONLY. DESIGN FEATURES, SPECIFICATIONS AND PERFORMANCE DATA SIZE SHOWN HEREON ARE THE PROPERTY OF THE AMPHENOL CORPORATION. NO RIGHTS OF REPRODUCTION ARE IMPLIED. ALL DIMENSIONS ARE SUBJECT TO NORMAL SCALE: MANUFACTURING VARIATIONS. TYPE B C- 5. ALL DIMENSIONS ARE FOR REFERENCE USE ONLY. NEXT ASS'Y: ITEM NONE DWG NO: REVISION AHDMBS-18-059 SHEET 1 A2 OF 1 1 2. USE WITH AHDM SERIES SIZE 18 MODIFICATION . AHDMBS-18-059 DESCRIPTION PART NUMBER MATERIALS LIST QUANTITY 1) 2) 1 2 3 OF: 1. MATERIAL: SHELL: ALUMINIUM ALLOY, NICKEL PLATED; LATCH SEGMENT: ALUMINIUM ALLOY, NICKEL PLATED; SCREW AND LOCK WASHER: STAINLESS STEEL; BUSHING: EPDM.
