REVISIONS
MAIN POLARIZING KEYWAY
41.7
REV
ECO
A1
--
DESCRIPTION
RELEASE NEW DRAWING
10.7
BY
APPR
Jony
TOMMY
SIZE 12 CONTACTS
(8 PLACES)
12.6
Ø44.6
DATE
09JAN18
6
2.5
110°REF
110°REF
｜
Ø33.8
A
HD
P0
4

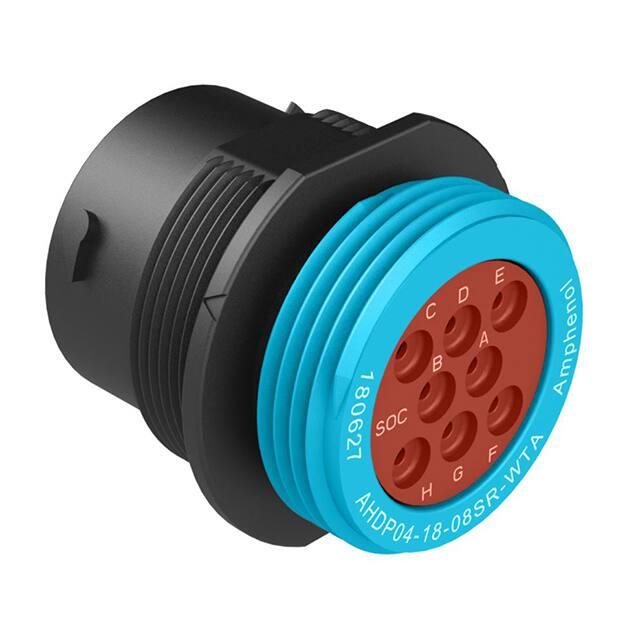

RECEPTACLE,18-08 POS, SOCKET CONT.,REDUCED DIA. SEAL, AHDP
Am
phenol
TITLE:
Y Y MM D D
41.3
TA
- 1 8 - 0 8 SR- W
1 7/16-12 UN THREAD
1 1/2-18 UNEF THREAD
DWG NO:
NOTES: UNLESS OTHERWISE SPECIFIED
AHDP04-18-08SR-WTA
1. MATERIAL:
HOUSING: THERMOPLASTIC; BLACK
SEAL: SILICONE RUBBER
2. MODIFICATIONS: THREADED ADAPTER;
THREADED ADAPTER
- BLUE
A1
36.63+0.2
-0.0
SH:
1
( * = SEAL TYPE )
QUANTITY
AHDP04-18-08SR-WTA
DESCRIPTION
PART NUMBER
MATERIALS LIST
UNLESS OTHERWISE SPECIFIED
6 CONTACT SIZE AND WIRE RANGE:
CONTACT
SIZE
MIN. INSUL
O.D.
MAX. INSUL
O.D.
TYPICAL
WIRE RANGE
CURRENT
RATING
RECOMMENDED PANEL
MOUNTING HOLE
12
2.46 mm
(.097 in)
4.01 mm
(.158 in)
10-14 AWG
25 AMPS
RECOMMENDED PANEL
THICKNESS:1.6 TO 4.7MM
1) All dimensions are in metric(mm).
2) Tolerances are as follows:
1 PL DEC ±0.30
Fractions ±1/64
2 PL DEC ±0.15
Angles ±1°
3 PL DEC ±0.08
3) Note reference =
X
SIGNATURES
DRAWN:
CHECKED:
09JAN18
09JAN18
Tommy
09JAN18
Sine Systems - www.amphenol-sine.com
44724 Morley Drive
Clinton Township, MI 48036
ENGINEER:
APPROVAL:
MATERIAL SPECIFICATIONS:
CUSTOMER:
PROCESS SPECIFICATIONS:
Amphenol
DATE
Jony
Orion
ITEM
RECEPTACLE,18-08 POS, SOCKET CONTACT
REDUCED DIA. SEAL, AHDP SERIES
THIS DRAWING IS SUPPLIED FOR
INFORMATION ONLY. DESIGN FEATURES,
SPECIFICATIONS AND PERFORMANCE DATA SIZE
SHOWN HEREON ARE THE PROPERTY OF
THE AMPHENOL CORPORATION. NO RIGHTS
OF REPRODUCTION ARE IMPLIED. ALL
DIMENSIONS ARE SUBJECT TO NORMAL
SCALE:
MANUFACTURING VARIATIONS.
TYPE
DWG NO:
REVISION
B C- AHDP04-18-08SR-WTA A1
NEXT ASS'Y:
NONE
SHEET
1
OF
1
1
5. ALL DIMENSIONS ARE FOR REFERENCE USE ONLY.
OF:
4. MATING PART: AHDP06-18-08P*
Ø38.29±0.12
REV:
3. SPECIFICATIONS:
3.1 OPERATING TEMPERATURE: -55℃ TO +125℃.
3.2 DIELECTRIC WITHSTANDING VOLTAGE: LESS THAN 2
MILLIAMPS CURRENT LEAKAGE @ 1500 VOLTS AC.
3.3 INSULATION RESISTANCE: 1000 MEGOHM MIN @ 25℃.
3.4 MOISTURE RESISTANCE: IP67&IP69K ( MATED CONDITION ).
3.5 MATING CYCLE DURABILITY: 100 CYCLES
3.6 RoHS COMPLIANT
A Series™ - Contact Size 12 Options (Works with: AHD-6, ATP, ATHD, DuraMate and PanelMate Series)
Machined Contacts, Sockets & Pins
Part Number
Description
Stamped & Formed Contacts, Sockets & Pins
Size
AWG
Type
Part Number
Description
Size
AWG
Type
*AT60-204-12141-10
Male Contact - Pin, Nickel-plated
12
10-12
Machined
AT60-12-0244
Male Contact - Pin, Gold-plated
12
10-12
Stamped & Formed
*AT62-203-12141-10
Female Contact - Socket, Nickel-plated
12
10-12
Machined
AT62-12-0244
Female Contact - Socket, Gold-plated
12
10-12
Stamped & Formed
AT60-220-1231
Male Contact - Pin, Gold-plated
12
12-14
Machined
AT60-12-0222
Male Contact - Pin, Nickel-plated
12
10-12
Stamped & Formed
AT62-210-1231
Female Contact - Socket, Gold-plated
12
12-14
Machined
AT62-12-0222
Female Contact - Socket, Nickel-plated
12
10-12
Stamped & Formed
AT60-204-12141
Male Contact - Pin, Nickel-plated
12
12-14
Machined
AT60-12-0144
Male Contact - Pin, Gold-plated
12
12-14
Stamped & Formed
AT62-203-12141
Female Contact - Socket, Nickel-plated
12
12-14
Machined
AT62-12-0144
Female Contact - Socket, Gold-plated
12
12-14
Stamped & Formed
AT60-12-0166
Male Contact - Pin, Nickel-plated
12
12-14
Stamped & Formed
AT62-12-0166
Female Contact - Socket, Nickel-plated
12
12-14
Stamped & Formed
Part Number
Description
*Works with ATP Series only
DiagnosticGrade™ Machined Contacts, Sockets & Pins
• Smaller AWG for Diagnostic Applications • Gold-plated • Increased Mating Cycles • Cost-effective
Part Number
Description
65-54749
AT62-210-1231-1820
Size
AWG
Type
Male Contact - DiagnosticGrade™, Pin, Gold-plated
12
20
Machined
Female Contact - DiagnosticGrade™, Socket,
Gold-plated
12
20
Machined
Tooling - Machined Contacts
Part Number
Tooling - Stamped & Formed Contacts
MFX-3973
Crimp Die - Size 12
MFX-3985
Crimp Die - Svize 12, 10-12AWG -02XX Series
ATT-12-00
Hand Crimp Tool - Size 12, 12AWG
ATT-12-01
Hand Crimp Tool - Size 12, 10AWG
Description
AUTK-12
Hand Crimp Tool, Size 12
AUTK-100
Universal Heavy Duty Contact Crimping Tool Kit, Size 12/16/20
CA-5D12
Universal Hand Crimp Tool, Size 12/16/20
CA-5E12
Pneumatic Crimp Tool, Size 12/16/20
M300-25A
Hand Crimp Tool used with Crimp Locator MFX-3966, Size 12, 10AWG
MFX-3966
Contact Locator used with Hand Crimp Tool M300-25A, Size 12, 10AWG
Contact Removal Tools (For both Machined or Stamped & Formed Contacts)
Part Number
ATRT-100
AT11-337-1205
Description
Contact and Wedgelock Extraction Tool
Contact Removal Tool, Plastic, Size 12
Sealing Plugs (For both Machined or Stamped & Formed Contacts)
Part Number
A114017
Description
Sealing Plug, Size 12, White
