AHDPBS-015-1805

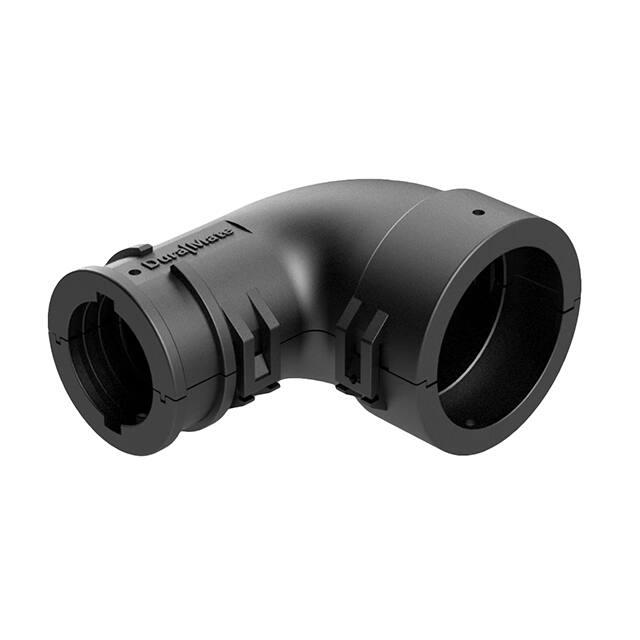

TITLE: DWG NO: BACK SHELL,COVER ,90 ANGLE,AHDP SERIES, SIZE 18 AHDPBS-015-1805 REV: 01 SH: 1 OF: 1 REVISIONS REV ECO DESCRIPTION 01 FIRST ISSUE DATE BY APPR Jan 22-2018 WILBER TOMMY 73.9 41.0 147.4 REF. 80.5 REF. 64.7 28.3 50.2 8.0 (x2) MOUNTED WITH PLUG 73.9 41.0 28.9 (x2) 83.7 REF. 67.8 50.2 AHDPBS-015-1805 DESCRIPTION PART NUMBER MATERIALS LIST NOTES: UNLESS OTHERWISE SPECIFIED 1. MATERIAL: THERMOPLASTIC,COLORS: BLACK 2.USE WITH AHDP04/06-18-*P/S-WTA 3.CABLE EXIT DESIGNED FOR CORRUGATED TUBE NW 13,17 AND 19. QUANTITY UNLESS OTHERWISE SPECIFIED 1) All dimensions are in metric(mm). 2) Tolerances are as follows: 1 PL DEC ±0.50 Fractions ±1/64 2 PL DEC ±0.15 Angles ±1° 3 PL DEC ±0.08 3) Note reference = MOUNTED WITH RECEPTACLE X SIGNATURES DRAWN: CHECKED: Amphenol DATE Wilber Liu Orion.Li Jan 22-2018 Jan 22-2018 TOMMY.Xie Jan 22-2018 Sine Systems - www.amphenol-sine.com 44724 Morley Drive Clinton Township, MI 48036 ENGINEER: APPROVAL: MATERIAL SPECIFICATIONS: BACK SHELL,COVER ,90 ANGLE AHDP SERIES, SIZE 18 CUSTOMER: 4. RoHS COMPLIANT PROCESS SPECIFICATIONS: THIS DRAWING IS SUPPLIED FOR INFORMATION ONLY. DESIGN FEATURES, SPECIFICATIONS AND PERFORMANCE DATA SIZE SHOWN HEREON ARE THE PROPERTY OF THE AMPHENOL CORPORATION. NO RIGHTS OF REPRODUCTION ARE IMPLIED. ALL DIMENSIONS ARE SUBJECT TO NORMAL SCALE: MANUFACTURING VARIATIONS. TYPE A C- 5. ALL DIMENSIONS ARE FOR REFERENCE USE ONLY. NEXT ASS'Y: ITEM NONE DWG NO: REVISION AHDPBS-015-1805 01 SHEET 1 OF 1
