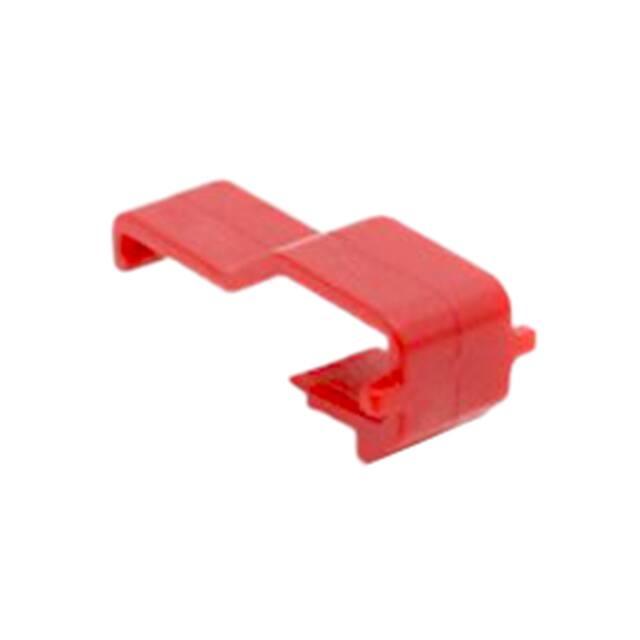

AT-246CPA-RD

REVISIONS ( 27.30 ) REV ECO A1 - DESCRIPTION RELEASED CUSTOMER DRAWING DATE BY APPR 11NOV14 D.PARKS - TITLE: CPA, AT SERIES, 2,4&6 CAVITY, RED 24.30 B ISOMETRIC VIEW ( 9.90 ) 8.40 ( 5.15 ) 5.10 DWG NO: 3.45 9.50 1.50 AT-246CPA-RD 3.10 REV: DETAIL B SCALE 2:1 11.20 A1 SH: 1 OF: NOTES: UNLESS OTHERWISE SPECIFIED QUANTITY 1 AT-246CPA-RD DESCRIPTION PART NUMBER MATERIALS LIST ITEM UNLESS OTHERWISE SPECIFIED SIGNATURES 1. MATERIAL: THERMOPLASTIC; COLOR: RED 1) All dimensions are in metric(mm). 2) Tolerances are as follows: 1 PL DEC ±1.27 Fractions ±0.40 2 PL DEC ±0.25 Angles ±1° 3 PL DEC ±0.127 DATE Amphenol DRAWN: D.PARKS 11NOV14 CHECKED: Sine Systems - www.amphenol-sine.com 44724 Morley Drive Clinton Township, MI 48036 ENGINEER: 3) Note reference = X APPROVAL: MATERIAL SPECIFICATIONS: CUSTOMER: 2. FOR USE WITH "AT" SERIES, 2, 4, & 6 WAY, FULLY MATED PLUG & RECEPTACLE SET. CPA, AT SERIES, 2,4&6 CAVITY, RED SEE NOTES PROCESS SPECIFICATIONS: THIS DRAWING IS SUPPLIED FOR INFORMATION ONLY. DESIGN FEATURES, SPECIFICATIONS AND PERFORMANCE DATA SIZE SHOWN HEREON ARE THE PROPERTY OF THE AMPHENOL CORPORATION. NO RIGHTS OF REPRODUCTION ARE IMPLIED. ALL DIMENSIONS ARE SUBJECT TO NORMAL SCALE: MANUFACTURING VARIATIONS. TYPE B C- 3. ALL DIMENSIONS ARE FOR REFERENCE USE ONLY. NEXT ASS'Y: NONE DWG NO: REVISION AT-246CPA-RD SHEET A1 1 OF 1
