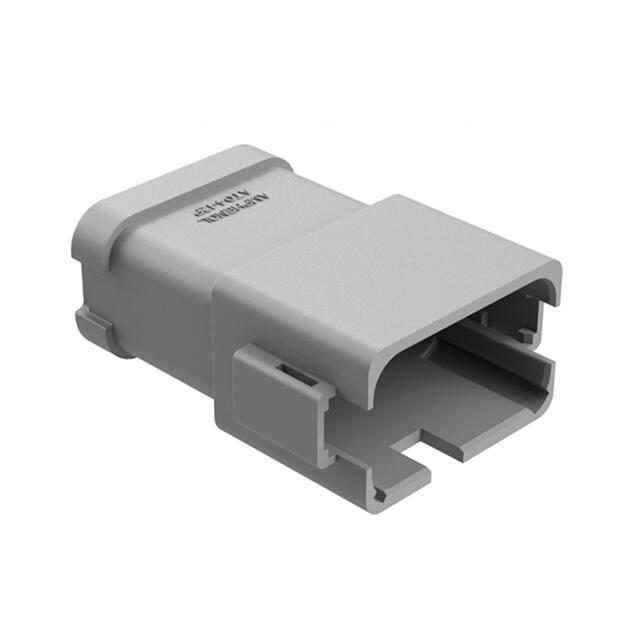

AT04-12PA-P031

REVISIONS REV ECO A1 - DATE DESCRIPTION RELEASE NEW DRAWING 11APR18 BY APPR ROOKIE TOMMY 40.5 TITLE: AT 12WAY RECEPTACLE,(4)3 PIN BUSBAR-GOLD PLATED 7 6 22.2 1 KEYWAY (3) PLACES DWG NO: END CAP NOTES: UNLESS OTHERWISE SPECIFIED 1 REFER TO SHEET 2 FOR AVAILABLE CONNECTOR COLORS 1 SEE SHEET 2 FOR KEY ARRANGEMENTS AND COLORS. AT04-12PX-P031 2. MATERIAL: HOUSING: THERMOPLASTIC SEAL:SILICONE RUBBER CONTACT:COPPER ALLOY 3. MODIFICATIONS: 4 PIECES OF 3 PIN BUSBAR WITH GOLD PLATED REV: A1 SH: 1 52.4 QUANTITY 6. ORIENTATION OF "Amphenol" AND "-P031" TO BE OPTIONAL 1) 2) 1 2 3 All dimensions are in metric(mm). Tolerances are as follows: PL DEC ±0.30 Fractions ±1/64 PL DEC ±0.15 Angles ±1° PL DEC ±0.08 3) Note reference = X SIGNATURES DRAWN: CHECKED: 11APR18 11APR18 TOMMY 11APR18 Sine Systems - www.amphenol-sine.com 44724 Morley Drive Clinton Township, MI 48036 ENGINEER: APPROVAL: MATERIAL SPECIFICATIONS: 7. BORDERS SIGINIFY THAT EACH GROUP OF PINS (PINS 1,11,12 , PINS 2,3,10, PINS 4,8,9 AND PINS 5,6,7) ARE BUSSED TOGETHER WITH A 3 PIN BUSBAR Amphenol DATE ROOKIE ORION CUSTOMER: PROCESS SPECIFICATIONS: THIS DRAWING IS SUPPLIED FOR INFORMATION ONLY. DESIGN FEATURES, SPECIFICATIONS AND PERFORMANCE DATA SIZE SHOWN HEREON ARE THE PROPERTY OF THE AMPHENOL CORPORATION. NO RIGHTS OF REPRODUCTION ARE IMPLIED. ALL DIMENSIONS ARE SUBJECT TO NORMAL SCALE: MANUFACTURING VARIATIONS. AT 12WAY RECEPTACLE (4)3 PIN BUSBAR-GOLD PLATED TYPE B C- 8. ALL DIMENSIONS ARE FOR REFERENCE USE ONLY. NEXT ASS'Y: ITEM NONE DWG NO: REVISION AT04-12PX-P031 SHEET 1 A1 OF 2 2 SEE SHEET 2 DESCRIPTION PART NUMBER MATERIALS LIST UNLESS OTHERWISE SPECIFIED 5. MATING PART: AT06-12SX* PLUG (X=A,B,C,D KEYS * = AVAILABLE MODIFICATIONS ) OF: 4. SPECIFICATIONS: 4.1 CURRENT RATING: 13 AMPS MAXIMUM FOR THE 3 PIN BUSBAR 4.2 OPERATING TEMPERATURE: -55℃ TO +125℃. 4.3 DIELECTRIC WITHSTANDING VOLTAGE: LESS THAN 2 MILLIAMPS CURRENT LEAKAGE @ 1500 VOLTS AC. 4.4 INSULATION RESISTANCE: 1000 MEGOHM MIN @ 25℃. 4.5 MOISTURE RESISTANCE: IP67 ( MATED CONDITION ). 4.6 MATING CYCLE DURABILITY: 100 CYCLES 4.7 RoHS COMPLIANT REVISIONS P/N AT04-12PB-P031 KEY-B CONFIGURATION STANDARD COLOR: BLACK ECO A1 - DESCRIPTION DATE RELEASE NEW DRAWING 11APR18 BY APPR ROOKIE TOMMY P/N AT04-12PD-P031 KEY-D CONFIGURATION STANDARD COLOR: BROWN P/N AT04-12PC-P031 KEY-C CONFIGURATION STANDARD COLOR: GREEN TITLE: P/N AT04-12PA-P031 KEY-A CONFIGURATION STANDARD COLOR: GREY REV AT 12WAY RECEPTACLE,(4)3 PIN BUSBAR-GOLD PLATED KEYWAY (3) PLACES KEYWAY (3) PLACES DWG NO: AT04-12PX-P031 KEYWAY (3) PLACES KEYWAY (3) PLACES REV: A1 SH: 2 OF: UNLESS OTHERWISE SPECIFIED 1) 2) 1 2 3 All dimensions are in metric(mm). Tolerances are as follows: PL DEC ±0.30 Fractions ±1/64 PL DEC ±0.15 Angles ±1° PL DEC ±0.08 3) Note reference = X SIGNATURES DRAWN: CHECKED: Amphenol DATE ROOKIE ORION 11APR18 11APR18 TOMMY 11APR18 Sine Systems - www.amphenol-sine.com 44724 Morley Drive Clinton Township, MI 48036 ENGINEER: APPROVAL: MATERIAL SPECIFICATIONS: CUSTOMER: PROCESS SPECIFICATIONS: THIS DRAWING IS SUPPLIED FOR INFORMATION ONLY. DESIGN FEATURES, SPECIFICATIONS AND PERFORMANCE DATA SIZE SHOWN HEREON ARE THE PROPERTY OF THE AMPHENOL CORPORATION. NO RIGHTS OF REPRODUCTION ARE IMPLIED. ALL DIMENSIONS ARE SUBJECT TO NORMAL SCALE: MANUFACTURING VARIATIONS. AT 12WAY RECEPTACLE (4)3 PIN BUSBAR-GOLD PLATED TYPE B C- NEXT ASS'Y: ITEM NONE DWG NO: REVISION AT04-12PX-P031 SHEET 2 A1 OF 2 2 DESCRIPTION PART NUMBER MATERIALS LIST QUANTITY
