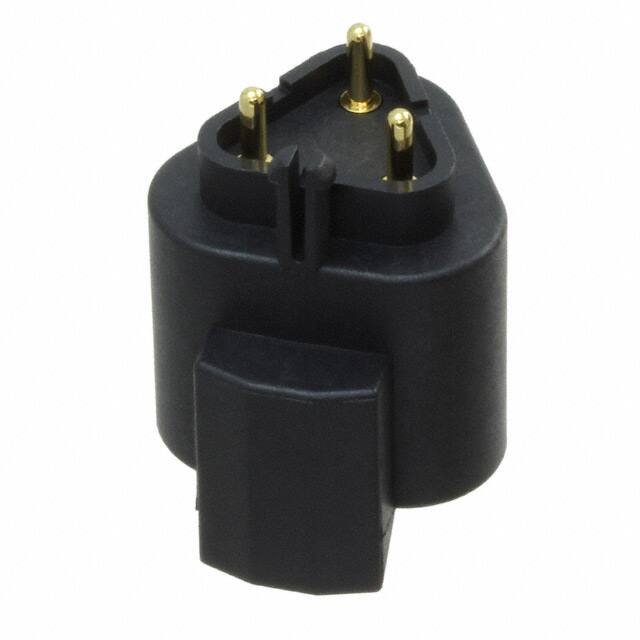

AT04-3P-BM02

REVISIONS 21.2 REV ECO A1 - DESCRIPTION DATE RELEASE NEW DWG FORMAT BY NOV/07/15 APPR SULLEN TOMMY Ø3.8 Ø3.0 TITLE: RECEPTACLE, 3 PIN,PCB,BOARD MOUNT 8.60 21.0 3-Ø1.50 5.05 24.4 7.45 Ø3.30 5.05 DWG NO: 3.20 3-Ø1.70 AT04-3P-BMXX RESERVOIR 7.45 NOTES: UNLESS OTHERWISE SPECIFIED 4.30 1.7 8.60 1 SEE PART NUMBER CHART DESCRIPTION PART NUMBER MATERIALS LIST UNLESS OTHERWISE SPECIFIED 1) All dimensions are in metric(mm). 2) Tolerances are as follows: 1 PL DEC ±0.30 Fractions ±1/64 2 PL DEC ±0.15 Angles ±1° 3 PL DEC ±0.08 AT04-3P-BMXX VARIANTS SIGNATURES DRAWN: CHECKED: Amphenol DATE SULLEN.ZHANG 07/NOV/15 ORION.LI 07/NOV/15 Sine Systems - www.amphenol-sine.com 44724 Morley Drive Clinton Township, MI 48036 ENGINEER: CONTACT PLATING POTTING OR NOT IN RESERVOIR PART NUMBER GOLD NO POTTING AT04-3P-BM01 CUSTOMER: GOLD POTTING AT04-3P-BM02 NICKEL NO POTTING AT04-3P-BM03 NICKEL POTTING AT04-3P-BM04 THIS DRAWING IS SUPPLIED FOR INFORMATION ONLY. DESIGN FEATURES, SPECIFICATIONS AND PERFORMANCE DATA SIZE SHOWN HEREON ARE THE PROPERTY OF THE AMPHENOL CORPORATION. NO RIGHTS OF REPRODUCTION ARE IMPLIED. ALL DIMENSIONS ARE SUBJECT TO NORMAL SCALE: MANUFACTURING VARIATIONS. 3) Note reference = X APPROVAL: MATERIAL SPECIFICATIONS: PROCESS SPECIFICATIONS: TOMMY.XIE 07/NOV/15 RECEPTACLE, 3 PIN, PCB, BOARD MOUNT TYPE B C- NEXT ASS'Y: ITEM NONE DWG NO: REVISION AT04-3P-BMXX SHEET A1 1 OF 1 1 QUANTITY OF: 5. ALL DIMENSIONS ARE FOR REFERENCE USE ONLY. SH: 3. SPECIFICATIONS: 3.1 CURRENT RATING: 13 AMPS 3.2 OPERATING TEMPERATURE: -55°C TO +125°C 3.3 DIELECTRIC WITHSTANDING VOLTAGE: LESS THAN 2 MILLIAMPS CURRENT LEAKAGE @ 1500 VOLTS AC. 3.4 INSULATION RESISTANCE: 1000 MEGOHMS MIN @ 25°C. 3.5 MOISTURE RESISTANCE: IP67 ( MATED CONDITION ) 3.6 MATING CYCLE DURABILITY: 100 CYCLES 3.7 RoHS COMPLIANT A1 RECOMMENDED LAYOUT VIEW FROM COMPONENTS SIDE OF PCB 2. MODIFICATIONS: PCB MOUNT 4. MATING PART: AT06-3S* PLUG ( * = MODIFICATIONS AND COLORS ) REV: 1. MATERIAL: HOUSING: THERMOPLASTIC; COLOR: BLACK CONTACT: COPPER ALLOY
