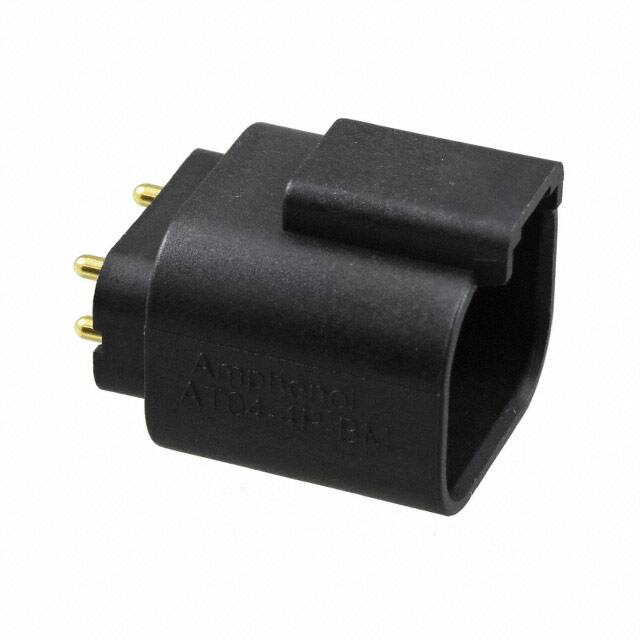

AT04-4P-BM02

REVISIONS 23.1 3.0 3.8 REV ECO A1 - DESCRIPTION RELEASE NEW PRODUCT DATE BY APPR 10AUG15 ORION TOMMY A2 - ADDED RED AND GREEN COLORS 5DEC2019 JAH DH A3 - REVISE DRAWING 10JUL20 JHEAD DH TITLE: 16.1 20.8 9.10 PCB MOUNT RECEPTACLE,4 PIN,STRAIGHT,A SERIES 1.50 A 7.18 A 4.42 19.7 8.0 3.20 RESERVOIR Ø3.30 DWG NO: 7.18 SECTION A-A NOTES: UNLESS OTHERWISE SPECIFIED 4XØ1.70 1.7 GOLD NO POTTING BLACK AT04-4P-BM01 GOLD POTTING BLACK AT04-4P-BM02 NICKEL NO POTTING BLACK AT04-4P-BM03 NICKEL POTTING BLACK AT04-4P-BM04 GOLD NO POTTING RED AT04-4P-BM01RED GOLD POTTING RED AT04-4P-BM02RED NICKEL NO POTTING RED AT04-4P-BM03RED NICKEL POTTING RED AT04-4P-BM04RED GOLD NO POTTING GREEN AT04-4P-BM01GRN GOLD POTTING GREEN AT04-4P-BM02GRN NICKEL NO POTTING GREEN AT04-4P-BM03GRN NICKEL POTTING GREEN AT04-4P-BM04GRN SEE PART NUMBER CHART DESCRIPTION PART NUMBER QUANTITY MATERIALS LIST UNLESS OTHERWISE SPECIFIED 1) 2) 1 2 3 All dimensions are in metric(mm). Tolerances are as follows: PL DEC ±0.30 Fractions ±1/64 PL DEC ±0.15 Angles ±1° PL DEC ±0.08 3) Note reference = X SIGNATURES DRAWN: Amphenol DATE 10AUG15 CHECKED: Sine Systems - www.amphenol-sine.com 44724 Morley Drive Clinton Township, MI 48036 ENGINEER: APPROVAL: MATERIAL SPECIFICATIONS: CUSTOMER: PROCESS SPECIFICATIONS: ORION.LI TOMMY.XIE 10AUG15 BOARDLOCK PCB MOUNT RECEPTACLE, 4 PIN, STRAIGHT, A SERIES THIS DRAWING IS SUPPLIED FOR INFORMATION ONLY. DESIGN FEATURES, SPECIFICATIONS AND PERFORMANCE DATA SIZE SHOWN HEREON ARE THE PROPERTY OF THE AMPHENOL CORPORATION. NO RIGHTS OF REPRODUCTION ARE IMPLIED. ALL DIMENSIONS ARE SUBJECT TO NORMAL SCALE: MANUFACTURING VARIATIONS. TYPE B C- NEXT ASS'Y: ITEM NONE DWG NO: REVISION AT04-4P-BMXX SHEET A3 1 OF 1 1 6. POTTED CONNECTORS SPECIFIED FOR UP TO 5 P.S.I. APPLICATIONS. RECOMMENDED LAYOUT VIEW FROM COMPONENTS SIDE OF PCB PART NUMBER OF: 5. ALL DIMENSIONS ARE FOR REFERENCE USE ONLY. COLOR 1 4. MATING PART: AT06-4S* PLUG ( * = MODIFICATIONS AND COLORS ) CONTACT POTTING OR NOT PLATING IN RESERVOIR SH: 3. SPECIFICATIONS: 3.1 CURRENT RATING: 13 AMPS 3.2 OPERATING TEMPERATURE: -55°C TO +125°C 3.3 DIELECTRIC WITHSTANDING VOLTAGE: LESS THAN 2 MILLIAMPS CURRENT LEAKAGE @ 1500 VOLTS AC. 3.4 INSULATION RESISTANCE: 1000 MEGOHMS MIN @ 25°C. 3.5 MOISTURE RESISTANCE: IP67 ( MATED CONDITION ) 3.6 MATING CYCLE DURABILITY: 100 CYCLES 3.7 RoHS COMPLIANT AT04-4P-BMXX VARIANTS A3 2. MODIFICATIONS: PCB MOUNT 9.10 REV: 1. MATERIAL: HOUSING: THERMOPLASTIC; COLOR: SEE CHART CONTACT: COPPER ALLOY AT04-4P-BMXX 4.42
